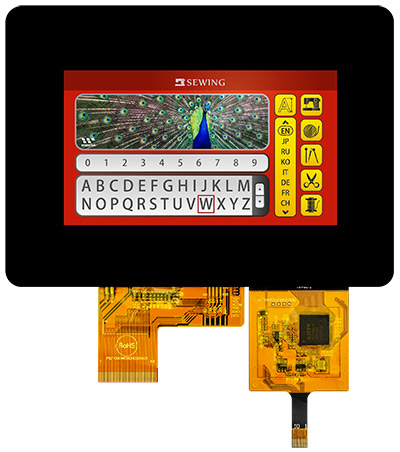

WF43-480272WD#0P8-FC

Picture of WF43-480272WD#0P8-FC Picture of WF43-480272WD#0P8-FC Picture of WF43-480272WD#0P8-FC
TFT 4.3" 480x272 LCD Panel, Interface RGB, 400cd/m², Wide view angle (IPS), Capacitive touch panel USB/I2C interface (GG, ILI2511 IC, Black free board), Default HSYNC-VSYNC, B/L 50K hours lifetime

DESCRIPTION

4.3'' 480x272 dots TFT module  easily controlled by RGB interface. This TFT model is featured with USB interface Capacitive Touch Screen on module and it is built in with ILI2511 driver IC which supports USB and I2C interface. This projected capacitive touch screen supports multi-touch function, compatible with Windows, Linux, Android and Mac operating systems. This 4.3" TFT Touch Screen Module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image.

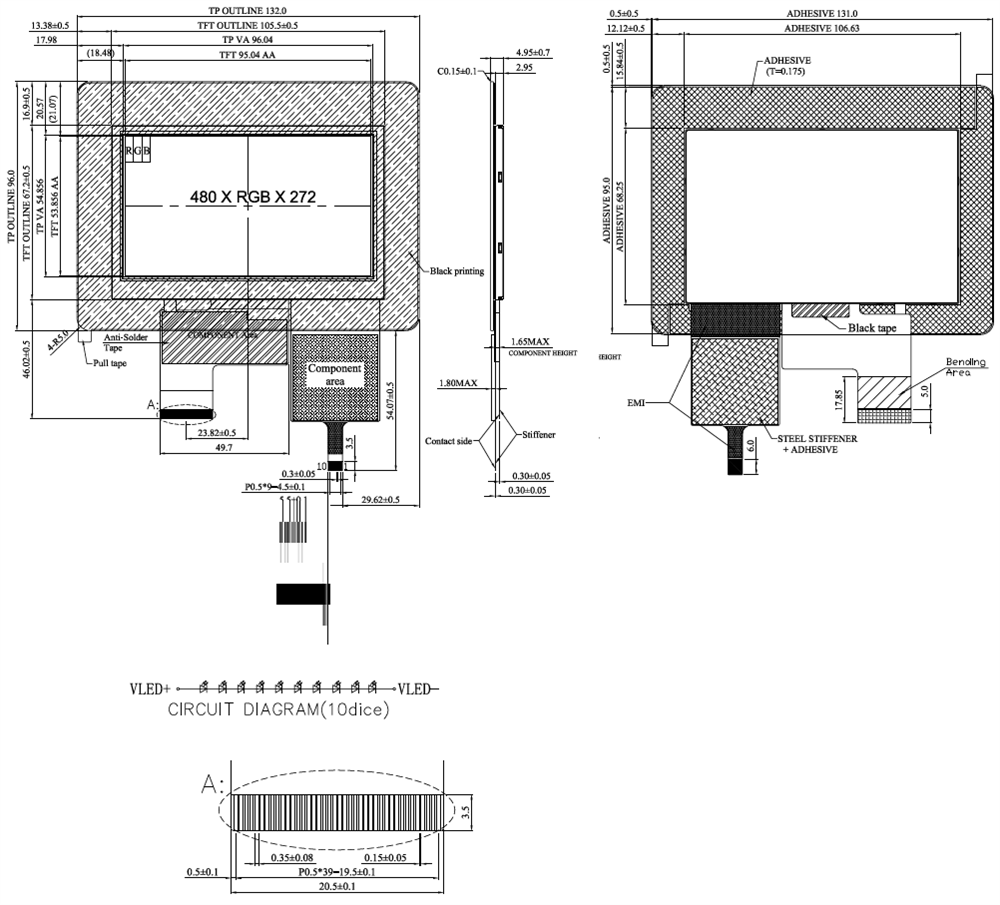

DRAWING



INTERFACE



PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VDD Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B7 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32 HSYNC Horizontal sync signal; negative polarity
33 VSYNC Vertical sync signal; negative polarity
34 DE Data Enable
35 NC No connection
36 GND Power ground
37~40 NC No connect



CTP Interface Pin Function

Pin No.SymbolI/ODescription
1 USB/GND --- System ground
2 USB/VDD5V --- Power supply
3 D+ I/O Data +
4 D- I/O Data -
5 GND --- System ground
6 SDA I/O I2C clock signal
7 SCL I/O I2C clock signal
8 RST --- External reset signal, active low
9 INT --- Interrupt signal, active low, asserted to request Host start a new transcation
10 VDD --- Power supply



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272 (TFT) dots
Module dimension 132.00 x 96.00 mm
Active area 95.04 × 53.856 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 80/80/80/80
TFT Driver IC SC7283 or equivalent
TFT Interface 24-bit RGB
Aspect Ratio 16:9
Backlight Type LED, Normally White
PCAP FW Version 3
PCAP IC ILI2511
PCAP Interface I2C+USB
Touch Screen Projected capacitive touch screen (PCAP)



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



SKU: WF43-480272WD#0P8-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€50.50
€42.10
€35.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€50.50 excl tax

DESCRIPTION

4.3'' 480x272 dots TFT module  easily controlled by RGB interface. This TFT model is featured with USB interface Capacitive Touch Screen on module and it is built in with ILI2511 driver IC which supports USB and I2C interface. This projected capacitive touch screen supports multi-touch function, compatible with Windows, Linux, Android and Mac operating systems. This 4.3" TFT Touch Screen Module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image.


DRAWING



INTERFACE



PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VDD Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B7 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32 HSYNC Horizontal sync signal; negative polarity
33 VSYNC Vertical sync signal; negative polarity
34 DE Data Enable
35 NC No connection
36 GND Power ground
37~40 NC No connect



CTP Interface Pin Function

Pin No.SymbolI/ODescription
1 USB/GND --- System ground
2 USB/VDD5V --- Power supply
3 D+ I/O Data +
4 D- I/O Data -
5 GND --- System ground
6 SDA I/O I2C clock signal
7 SCL I/O I2C clock signal
8 RST --- External reset signal, active low
9 INT --- Interrupt signal, active low, asserted to request Host start a new transcation
10 VDD --- Power supply



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272 (TFT) dots
Module dimension 132.00 x 96.00 mm
Active area 95.04 × 53.856 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 80/80/80/80
TFT Driver IC SC7283 or equivalent
TFT Interface 24-bit RGB
Aspect Ratio 16:9
Backlight Type LED, Normally White
PCAP FW Version 3
PCAP IC ILI2511
PCAP Interface I2C+USB
Touch Screen Projected capacitive touch screen (PCAP)



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2511
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2511
Preferred - Not Preferred Preferred
