WF43-480272YD#001-FC

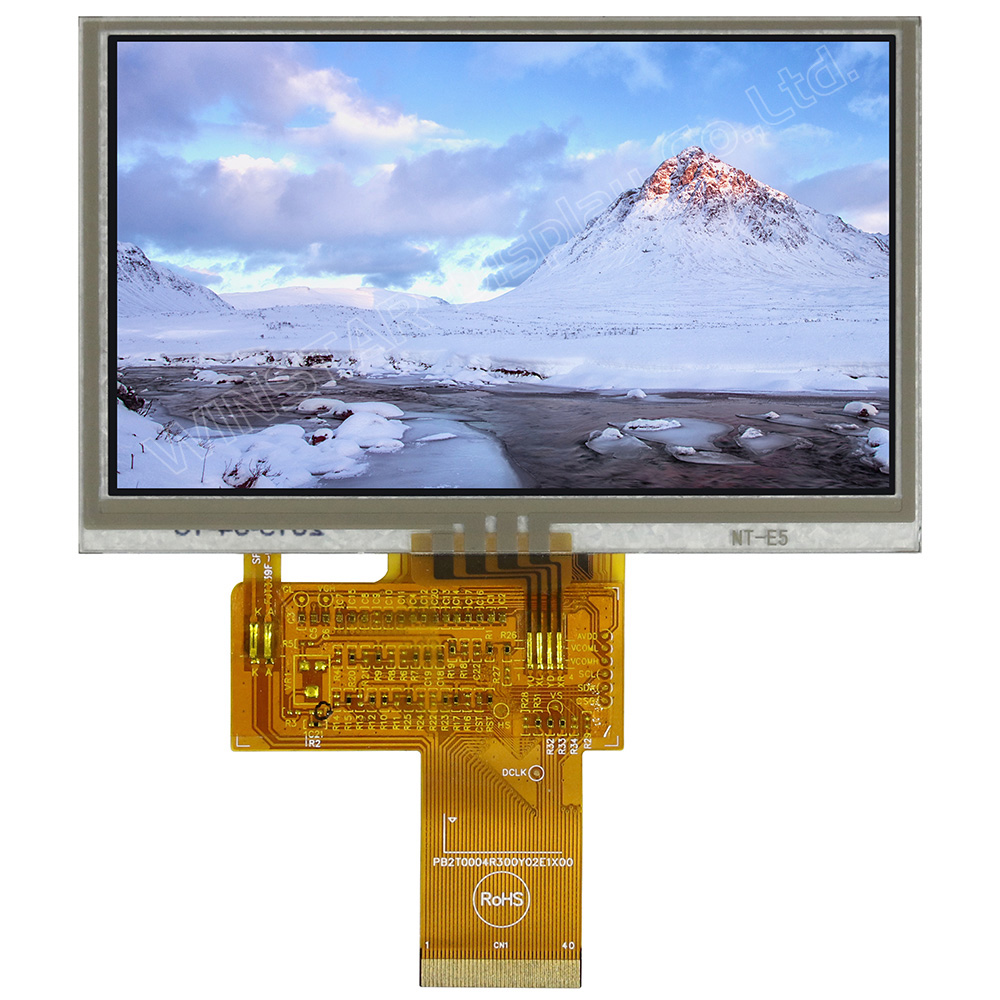

Picture of WF43-480272YD#001-FC Picture of WF43-480272YD#001-FC Picture of WF43-480272YD#001-FC
TFT 4.3" 480x272 LCD Panel, Interface RGB,Unified cable (40pin), 350cd/m², Resistive touch panel

DESCRIPTION



4.3 inch Winstar Y Series TFT LCD module with RTP. The key feature of this module is to have the same 40-pin pre-defined FPC on TFT LCD modules as the other sizes of Y Series.  The Y Series modules are derivative products from the Winstar existing standard TFTs which uniform the pin assignment into a 40-pin FPC; and the FPC is placed in the central position on the bottom of TFT panel for each module.

Key Advantages of Winstar TFT Y Series:
  • All Y Series TFT modules are including a same integrated 40-pin FPC pre-designed on modules, and the FPC is placed in the central position on the bottom of TFT panel for each module. The customers only have to supply the Logic Power, Backlight Power and RGB signal, it becomes easily for customers to design products.
  • All Y Series built in DC-DC multi-output power (VGH, VGL, AVDD, VCOM).
  • Multi-Function Capacitive Touch Panel and Resistive Touch Panel are available for all Y Series.

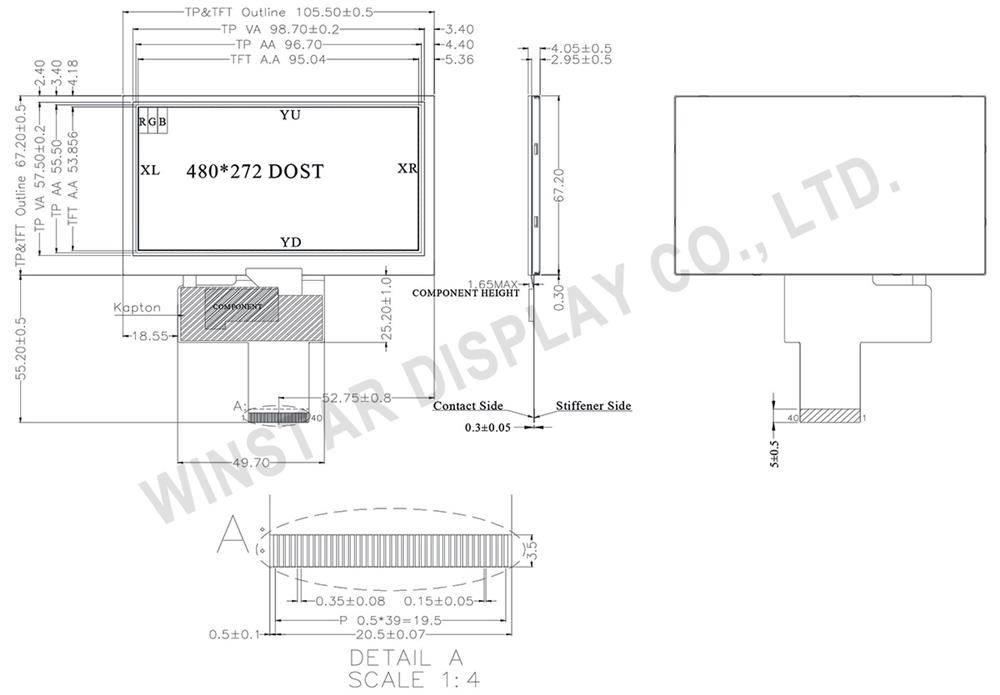

DRAWING




SPECIFICATIONS



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32 Hsync Horizontal sync signal
33 Vsync  Vertical sync signal
34~35 NC No connection
36 RESET Hardware reset
37 XR Right electrode
38 YD Down electrode
39 XL Left electrode
40 YU Top electrode



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272 (TFT) dots
Module dimension 105.5(W) × 67.2(H) × 4.05(D) mm
Active area 95.04 × 53.86 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
TFT Driver IC ILI6480B
TFT Interface 24-bit RGB
Backlight Type LED, Normally White
Touch Panel Resistive touch panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VCC － 3.0 3.3 3.5 V
Digital operation current Icc - - 17 25 mA
SKU: WF43-480272YD#001-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€30.60
€24.50
€20.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€30.60 excl tax

DESCRIPTION



4.3 inch Winstar Y Series TFT LCD module with RTP. The key feature of this module is to have the same 40-pin pre-defined FPC on TFT LCD modules as the other sizes of Y Series.  The Y Series modules are derivative products from the Winstar existing standard TFTs which uniform the pin assignment into a 40-pin FPC; and the FPC is placed in the central position on the bottom of TFT panel for each module.

Key Advantages of Winstar TFT Y Series:
  • All Y Series TFT modules are including a same integrated 40-pin FPC pre-designed on modules, and the FPC is placed in the central position on the bottom of TFT panel for each module. The customers only have to supply the Logic Power, Backlight Power and RGB signal, it becomes easily for customers to design products.
  • All Y Series built in DC-DC multi-output power (VGH, VGL, AVDD, VCOM).
  • Multi-Function Capacitive Touch Panel and Resistive Touch Panel are available for all Y Series.



DRAWING




SPECIFICATIONS



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32 Hsync Horizontal sync signal
33 Vsync  Vertical sync signal
34~35 NC No connection
36 RESET Hardware reset
37 XR Right electrode
38 YD Down electrode
39 XL Left electrode
40 YU Top electrode



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272 (TFT) dots
Module dimension 105.5(W) × 67.2(H) × 4.05(D) mm
Active area 95.04 × 53.86 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
TFT Driver IC ILI6480B
TFT Interface 24-bit RGB
Backlight Type LED, Normally White
Touch Panel Resistive touch panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VCC － 3.0 3.3 3.5 V
Digital operation current Icc - - 17 25 mA
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
