WF43-800480XD#0PW0-FC

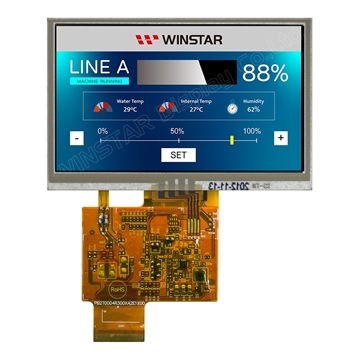

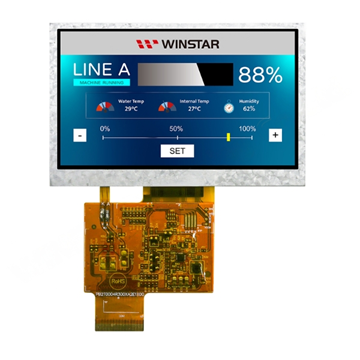

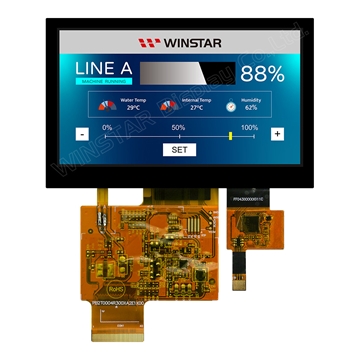

Picture of WF43-800480XD#0PW0-FC Picture of WF43-800480XD#0PW0-FC
TFT 4.3'' 800x480, LCD Module, Interface RGB, 600cd/m², Wide View Angle (IPS), Super extended Temperature, No touch

DESCRIPTION

4.3-inch Wide Temperature IPS TFT-LCD display made of resolution 800x480 pixels. This module is built-in with HX8264 and HX8664 driver ICs, and it supports 24-bit RGB interface. IPS panel with the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), brightness 500 nits (typical value), glare surface panel, aspect ratio 16:9. The PCAP touch screen is built-in with ILI2130 IC, supporting I2C interface and multi-touch function. This model has a resistive and projected capacitive touch panel options.

The supply voltage (VCC) is from 3.0V to 3.6V, the typical value of 3.3V. Operating temperatures from -30℃ to+ 80℃ and storage temperature from -30℃ to +80℃.

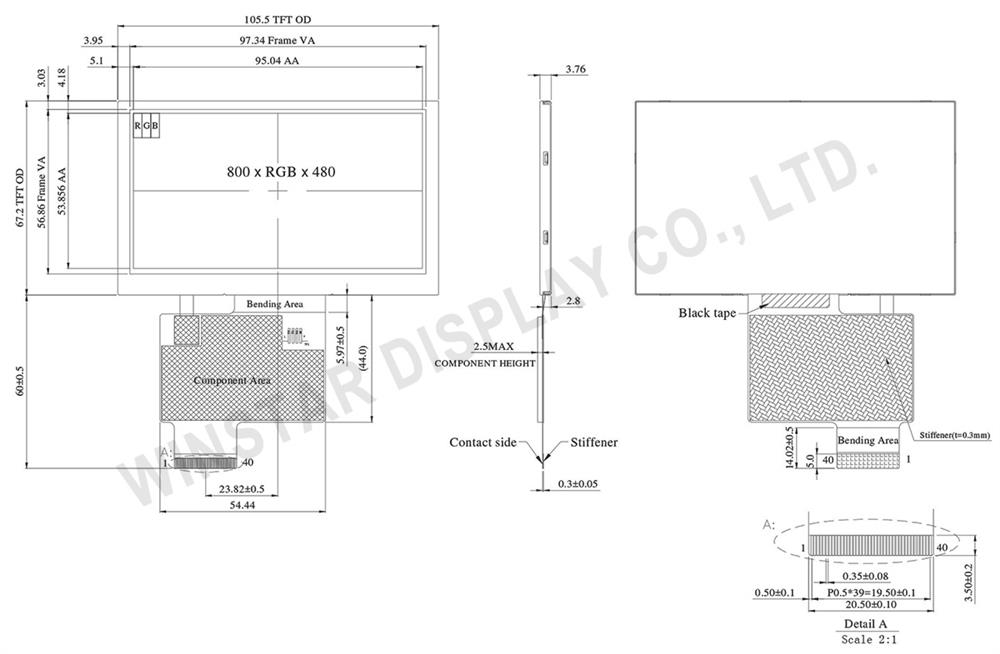

DRAWING

SPECIFICATIONS

Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data
13 G0 Green data
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data
21 B0 Blue data
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data
29 GND Power ground
30 CLK Pixel clock input pin
31 DISP DISP sets the display mode.
DISPFunction Description
L Standby mode
H Normal display mode
32 HSYNC Horizontal Sync Input. Negative polarity
33 VSYNC Vertical Sync Input. Negative polarity.
34 NC No connection
35 NC No connection
36 GND Power ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection




General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 800 × RGB × 480(TFT) dots
Module dimension 105.5(W) × 67.2(H) × 3.76 (D) mm
Active area 95.04 × 53.856 mm
Dot pitch 0.1188 × 0.1122 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 16:9
TFT Driver IC HX8264+HX8664 or equivalent
Interface 24-bit RGB
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC - 60 90 mA



LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current - - 60 - mA
LED voltage VLED+ 10.8 12 13.6 V
LED Life Time - - 50,000 - Hr
SKU: WF43-800480XD#0PW0-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€38.90
€31.10
€26.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€38.90 excl tax

DESCRIPTION

4.3-inch Wide Temperature IPS TFT-LCD display made of resolution 800x480 pixels. This module is built-in with HX8264 and HX8664 driver ICs, and it supports 24-bit RGB interface. IPS panel with the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), brightness 500 nits (typical value), glare surface panel, aspect ratio 16:9. The PCAP touch screen is built-in with ILI2130 IC, supporting I2C interface and multi-touch function. This model has a resistive and projected capacitive touch panel options.

The supply voltage (VCC) is from 3.0V to 3.6V, the typical value of 3.3V. Operating temperatures from -30℃ to+ 80℃ and storage temperature from -30℃ to +80℃.

DRAWING

SPECIFICATIONS

Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data
13 G0 Green data
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data
21 B0 Blue data
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data
29 GND Power ground
30 CLK Pixel clock input pin
31 DISP DISP sets the display mode.
DISPFunction Description
L Standby mode
H Normal display mode
32 HSYNC Horizontal Sync Input. Negative polarity
33 VSYNC Vertical Sync Input. Negative polarity.
34 NC No connection
35 NC No connection
36 GND Power ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection




General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 800 × RGB × 480(TFT) dots
Module dimension 105.5(W) × 67.2(H) × 3.76 (D) mm
Active area 95.04 × 53.856 mm
Dot pitch 0.1188 × 0.1122 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 16:9
TFT Driver IC HX8264+HX8664 or equivalent
Interface 24-bit RGB
Backlight Type LED, Normally White
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VCC 3.0 3.3 3.6 V
Supply Current For LCM ICC - 60 90 mA



LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current - - 60 - mA
LED voltage VLED+ 10.8 12 13.6 V
LED Life Time - - 50,000 - Hr
