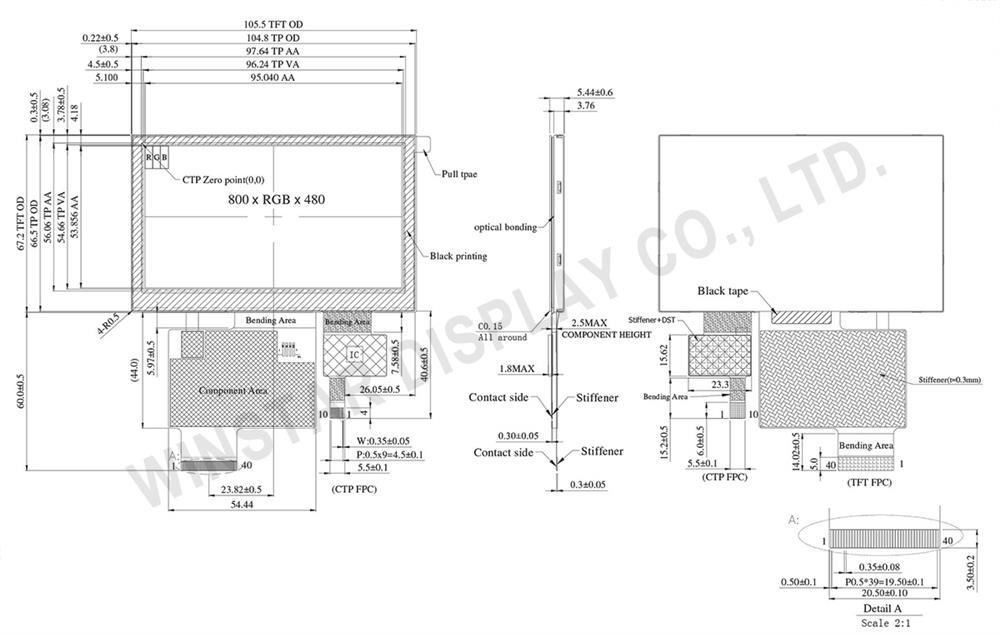

4.3-inch Wide Temperature IPS TFT-LCD display with a Projected Capacitive Touch screen, made of resolution 800x480 pixels. This module is built-in with HX8264 and HX8664 driver ICs, and it supports 24-bit RGB interface. IPS panel with the advantage of wider view angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), brightness 500 nits (typical value), glare surface panel, aspect ratio 16:9. The PCAP touch screen is built-in with ILI2130 IC, supporting I2C interface and multi-touch function.
The supply voltage (VCC) is from 3.0V to 3.6V, the typical value of 3.3V. Operating temperatures from -30℃ to+ 80℃ and storage temperature from -30℃ to +80℃.
