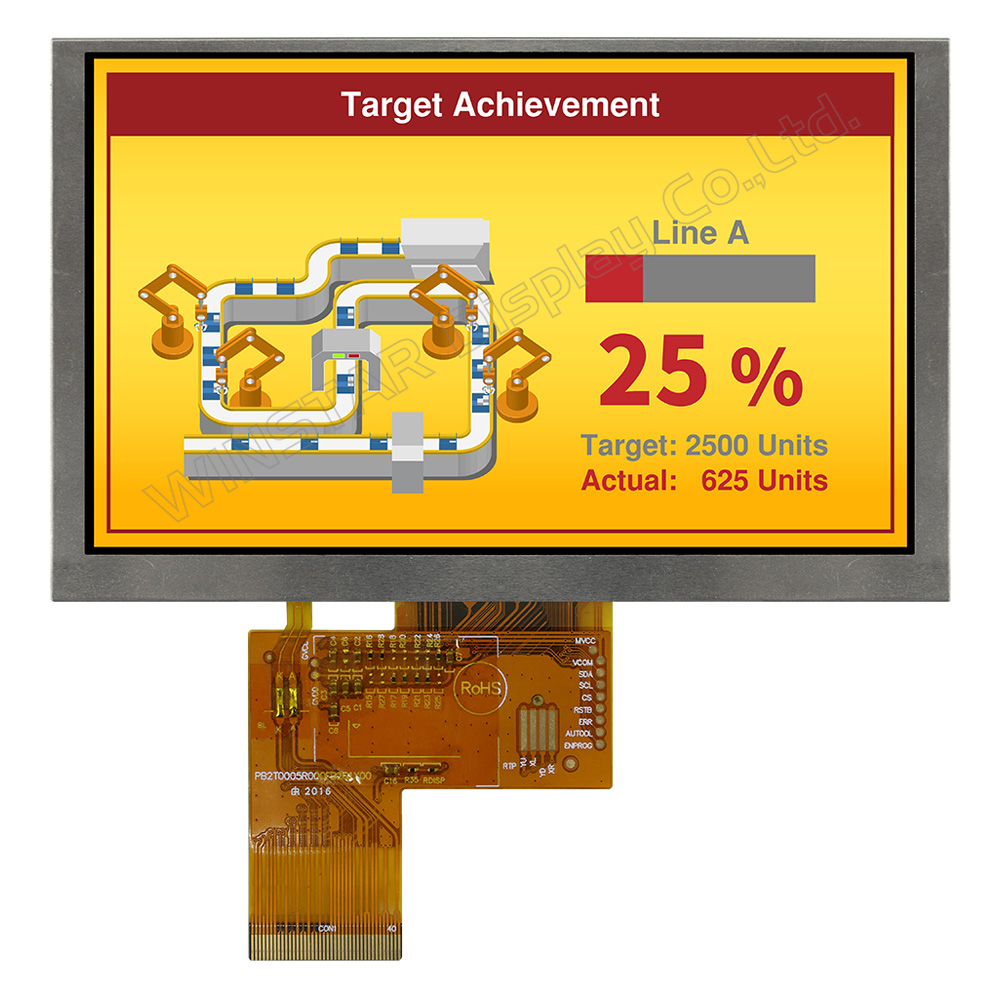

WF50-800480FL#0PW0-FC

TFT 5'' 800x480, LCD Module, Interface LVDS, 500cd/m², Wide view angle (IPS), Super extended Temperature, No touch

DESCRIPTION



5 inch IPS landscape mode TFT LCD module, with resolution 800x480 pixels. This module is built in with ST7262 driver IC; this module supports LVDS interface (Default VESA), contrast ratio 1,000:1 (typical value), brightness 500 nits (typical value). RGB version option available.

This IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The power voltage is from 3.1 to 3.6V, typical value 3.3V, aspect ratio 16:9, normally black, transmissive LCD type, anti-glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.  Resistive Touch Panel and Projected Capacitive Touch Panel optionable.

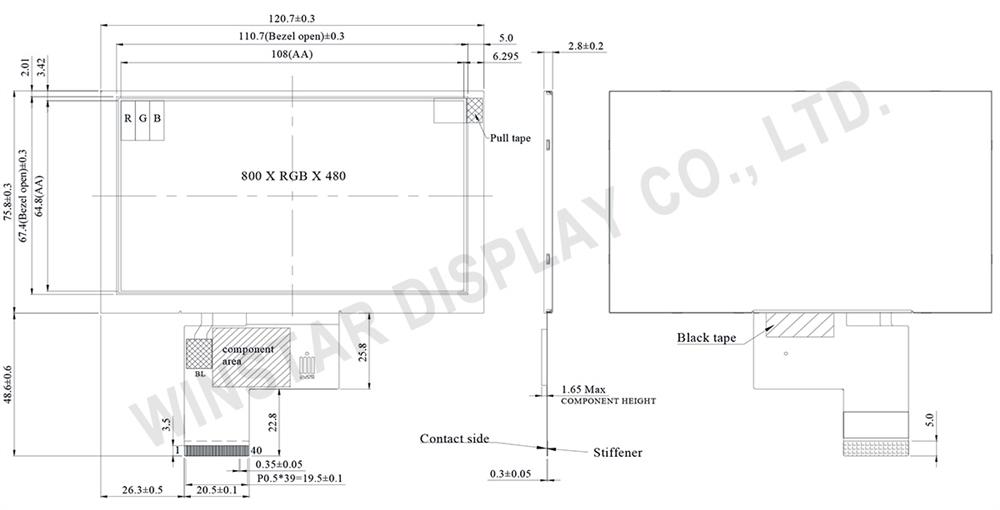

DRAWING

WF50FTWAGLNN0



SPECIFICATIONS

Interface

PinSymbolFunction
1 NC No connection
2 VCC Power voltage
3 VCCI Power supply for digital I/O pins.
4 NC No connection
5 GRB Global reset pin. When GRB is “L”, internal initialization procedure is executed
6 DISP Display on/off
7 GND Power Ground
8 RXIN0- LVDS input lane: RX0-/ RX0+
9 RXIN0+
10 GND Power Ground
11 RXIN1- LVDS input lane: RX1-/ RX1+
12 RXIN1+
13 GND Power Ground
14 RXIN2- LVDS input lane: RX2-/ RX2+
15 RXIN2+
16 GND Power Ground
17 RXCLKIN- LVDS input lane, detail pin define please refer to LVDS
Input Pin Mapping Table.
18 RXCLKIN+
19 GND Power Ground
20 RXIN3- LVDS input lane: RX3-/ RX3+
21 RXIN3+
22 GND Power Ground
23-24 NC No connection
25 FMT LVDS_FMT sets LVDS data format.
LVDS_FMTFunction Description
L VESA Mode (Default)
H JEIDA Mode
LVDS_FMT is not used in RGB interface and should be connected to “L”.
26-27 NC No connection
28 SELB SELB sets VSYNC polarity in RGB interface and sets LVDS 3- / 4- lane in LVDS interface.
MCU TypeVDPOLFunction Description
RGB interface L VSYNC polarity: positive
H VSYNC polarity: positive: negative (Default)
LVDS inteface L LVD 3 lane
H LVD 4 lane (Default)
29 NC No connection
30 GND Power Ground
31-32 VLED- Power for LED backlight (Cathode)
33 L/R Horizontal scan direction control pin. This pin must be connected to “H” or “L” according to system application
HDIRFunction Description
L From right to left
H From left to right (Default)
34 U/D Vertical scan direction control pin. This pin must be connected to “H” or “L” according to system application.
VDIRFunction Description
L From down to up.
H From up to down.(Default)
35 NC No connection
36-37 GND Power Ground
38 NC No connection
39-40 VLED+ Power for LED backlight (Anode)



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800× 3(RGB) × 480 dots
Module dimension 120.7(W) ×75.8(H) ×2.8mm mm
Active area 108(W) ×64.8 (H) mm mm
Dot pitch 0.135(W) ×0.135(H) mm mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 16:9
Driver IC     ST7262 or equivalent
Interface LVDS
Backlight Type LED ,Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VCC 3.1 3.3 3.6 V
Power voltage VCCI 3.1 3.3 3.6 V
Current for Driver(Black) ICC - 67.6 102 mA
SKU: WF50-800480FL#0PW0-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€33.50
€26.80
€22.50
€21.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€33.50 excl tax

DESCRIPTION



5 inch IPS landscape mode TFT LCD module, with resolution 800x480 pixels. This module is built in with ST7262 driver IC; this module supports LVDS interface (Default VESA), contrast ratio 1,000:1 (typical value), brightness 500 nits (typical value). RGB version option available.

This IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The power voltage is from 3.1 to 3.6V, typical value 3.3V, aspect ratio 16:9, normally black, transmissive LCD type, anti-glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.  Resistive Touch Panel and Projected Capacitive Touch Panel optionable.



DRAWING

WF50FTWAGLNN0



SPECIFICATIONS

Interface

PinSymbolFunction
1 NC No connection
2 VCC Power voltage
3 VCCI Power supply for digital I/O pins.
4 NC No connection
5 GRB Global reset pin. When GRB is “L”, internal initialization procedure is executed
6 DISP Display on/off
7 GND Power Ground
8 RXIN0- LVDS input lane: RX0-/ RX0+
9 RXIN0+
10 GND Power Ground
11 RXIN1- LVDS input lane: RX1-/ RX1+
12 RXIN1+
13 GND Power Ground
14 RXIN2- LVDS input lane: RX2-/ RX2+
15 RXIN2+
16 GND Power Ground
17 RXCLKIN- LVDS input lane, detail pin define please refer to LVDS
Input Pin Mapping Table.
18 RXCLKIN+
19 GND Power Ground
20 RXIN3- LVDS input lane: RX3-/ RX3+
21 RXIN3+
22 GND Power Ground
23-24 NC No connection
25 FMT LVDS_FMT sets LVDS data format.
LVDS_FMTFunction Description
L VESA Mode (Default)
H JEIDA Mode
LVDS_FMT is not used in RGB interface and should be connected to “L”.
26-27 NC No connection
28 SELB SELB sets VSYNC polarity in RGB interface and sets LVDS 3- / 4- lane in LVDS interface.
MCU TypeVDPOLFunction Description
RGB interface L VSYNC polarity: positive
H VSYNC polarity: positive: negative (Default)
LVDS inteface L LVD 3 lane
H LVD 4 lane (Default)
29 NC No connection
30 GND Power Ground
31-32 VLED- Power for LED backlight (Cathode)
33 L/R Horizontal scan direction control pin. This pin must be connected to “H” or “L” according to system application
HDIRFunction Description
L From right to left
H From left to right (Default)
34 U/D Vertical scan direction control pin. This pin must be connected to “H” or “L” according to system application.
VDIRFunction Description
L From down to up.
H From up to down.(Default)
35 NC No connection
36-37 GND Power Ground
38 NC No connection
39-40 VLED+ Power for LED backlight (Anode)



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800× 3(RGB) × 480 dots
Module dimension 120.7(W) ×75.8(H) ×2.8mm mm
Active area 108(W) ×64.8 (H) mm mm
Dot pitch 0.135(W) ×0.135(H) mm mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 16:9
Driver IC     ST7262 or equivalent
Interface LVDS
Backlight Type LED ,Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VCC 3.1 3.3 3.6 V
Power voltage VCCI 3.1 3.3 3.6 V
Current for Driver(Black) ICC - 67.6 102 mA
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Interface LVDS
Built-in Controller No
View Angle IPS
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
