WF50BTIAGDNB0#

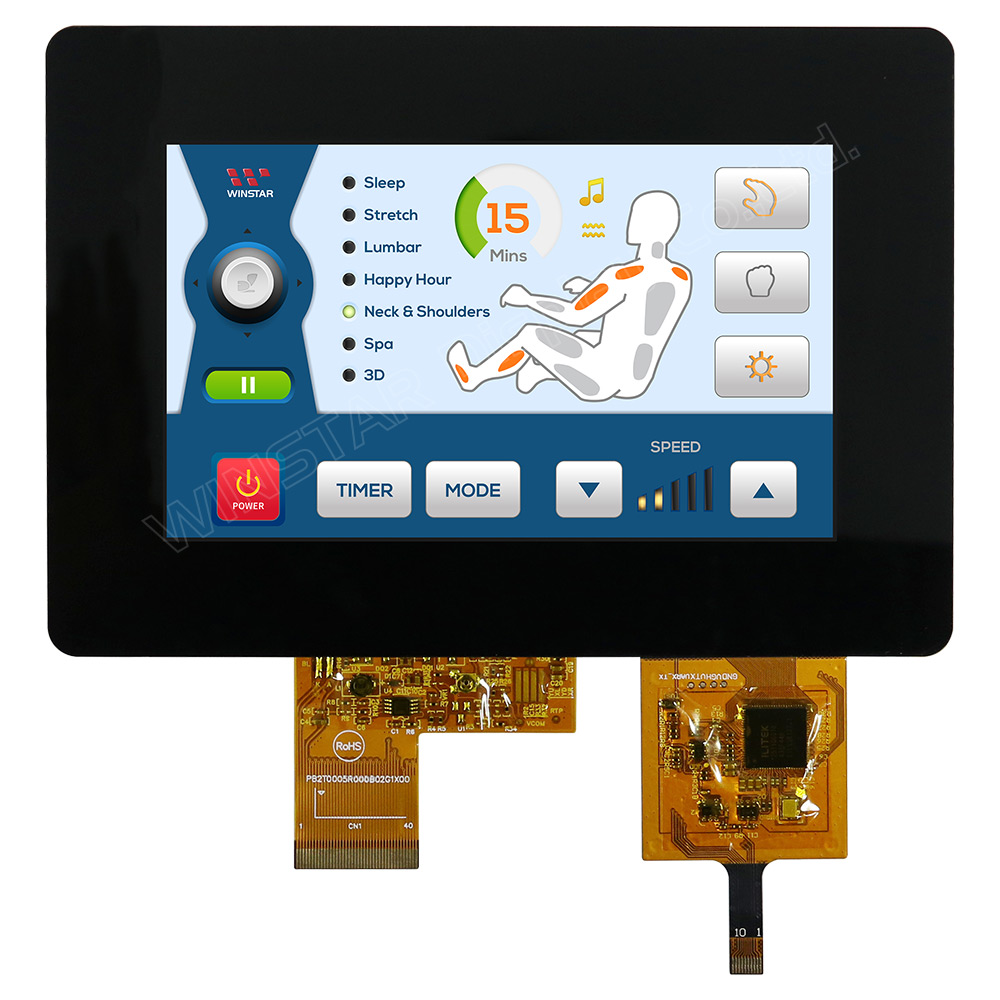

Picture of WF50BTIAGDNB0# Picture of WF50BTIAGDNB0#
TFT 5" 800x480 LCD Panel, Interface RGB, 400cd/m², Capacitive touch panel USB/I2C interface (GG, ILI2511 IC, Black free board)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected]

DESCRIPTION

Full color 800x480 TFT-LCD display module, diagonal size 5 inch. This TFT model is featured with USB interface Capacitive Touch Screen on module; it built in with ILI6122 and ILI5960 Driver IC, supports 24-bit RGB interface, as to the capacitive touch panel is built in with ILI2511 driver IC which supports USB and I2C interface. This projected capacitive touch screen supports multi-touch function, compatible with Windows, Linux, Android and Mac operating systems.Typical brightness 400 cd/m2, power supply voltage (VDD) range from 3V to 3.6V. This module has Glare surface panel, view direction 12 o'clock, gray scale inversion 6 o'clock, and aspect ratio 16:9, contrast ratio 500:1, the operating temperature ranges from -20 to +70 ℃ and storage from -30 to +80 ℃.

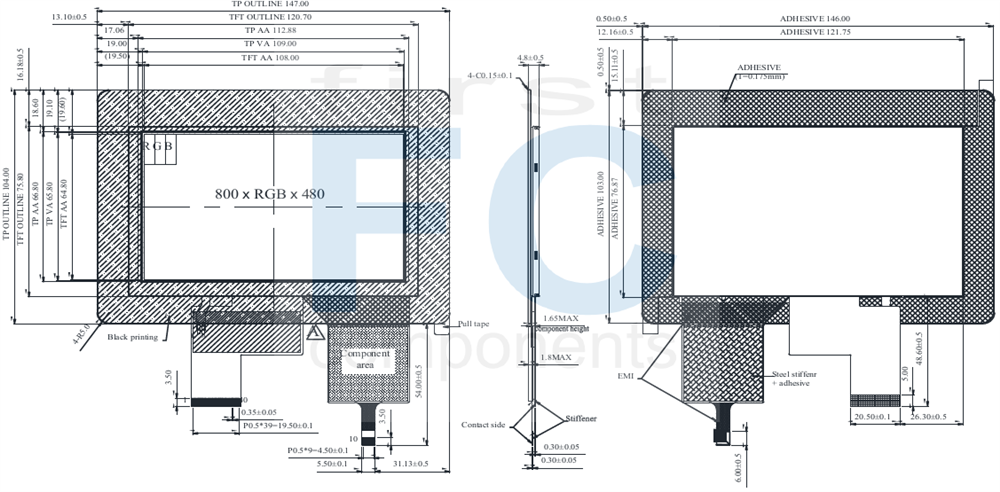

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14~19 G1~G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22~26 B1~B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock
31 DISP Display on/off
32 NC/HS No connection /Horizontal sync input
33 NC/VS No connection /Vertical sync input
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection

 PCAP PIN Definition

PinSymbolFunction
1 USB_VSS System ground
2 USB_VDD 5V Power supply
3 USB_D+ Data +
4 USB_D- Data -
5 VSS System ground
6 SDA I2C data input and output
7 SCL I2C clock input
8 RST External Reset, Low is active
9 INT External interrupt to the host
10 VDDT 3.3 Power supply



General Specifications

ItemDimensionUnit
Size 5 inch
Dot Matrix 800 × 3(RGB) × 480 dots
Module dimension 147.0(W) ×104.0(H) ×4.8mm mm
Active area 108(W) × 64.8 (H) mm mm
Dot pitch 0.135(W)×0.135(H) mm mm
LCD type TFT, Normally White, Transmissive
TFT Driver IC  ILI6122 + ILI5960
View Direction  12 o'clock
Gray Scale Inversion Direction 6 o'clock
TFT Interface 24-bit RGB
Aspect Ratio 16:9
Backlight Type LED ,Normally White
PCAP IC ILI2511
PCAP Interface USB (I2C available)
PCAP FW Version: V 6. 0. 0. 0. 5.28.0.1
Touch Panel Projected Capacitive Touch Screen(PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VDD 3 3.3 3.6 V
Current for Driver(Black) IDD - 110 170 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD V
Supply Voltage For Touch Logic VDDT 4.4 5 5.5 V


SKU: WF50-800480BD#008-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€73.80
€66.40
€56.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€73.80 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected]

DESCRIPTION

Full color 800x480 TFT-LCD display module, diagonal size 5 inch. This TFT model is featured with USB interface Capacitive Touch Screen on module; it built in with ILI6122 and ILI5960 Driver IC, supports 24-bit RGB interface, as to the capacitive touch panel is built in with ILI2511 driver IC which supports USB and I2C interface. This projected capacitive touch screen supports multi-touch function, compatible with Windows, Linux, Android and Mac operating systems.Typical brightness 400 cd/m2, power supply voltage (VDD) range from 3V to 3.6V. This module has Glare surface panel, view direction 12 o'clock, gray scale inversion 6 o'clock, and aspect ratio 16:9, contrast ratio 500:1, the operating temperature ranges from -20 to +70 ℃ and storage from -30 to +80 ℃.

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14~19 G1~G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22~26 B1~B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock
31 DISP Display on/off
32 NC/HS No connection /Horizontal sync input
33 NC/VS No connection /Vertical sync input
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection

 PCAP PIN Definition

PinSymbolFunction
1 USB_VSS System ground
2 USB_VDD 5V Power supply
3 USB_D+ Data +
4 USB_D- Data -
5 VSS System ground
6 SDA I2C data input and output
7 SCL I2C clock input
8 RST External Reset, Low is active
9 INT External interrupt to the host
10 VDDT 3.3 Power supply



General Specifications

ItemDimensionUnit
Size 5 inch
Dot Matrix 800 × 3(RGB) × 480 dots
Module dimension 147.0(W) ×104.0(H) ×4.8mm mm
Active area 108(W) × 64.8 (H) mm mm
Dot pitch 0.135(W)×0.135(H) mm mm
LCD type TFT, Normally White, Transmissive
TFT Driver IC  ILI6122 + ILI5960
View Direction  12 o'clock
Gray Scale Inversion Direction 6 o'clock
TFT Interface 24-bit RGB
Aspect Ratio 16:9
Backlight Type LED ,Normally White
PCAP IC ILI2511
PCAP Interface USB (I2C available)
PCAP FW Version: V 6. 0. 0. 0. 5.28.0.1
Touch Panel Projected Capacitive Touch Screen(PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VDD 3 3.3 3.6 V
Current for Driver(Black) IDD - 110 170 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD V
Supply Voltage For Touch Logic VDDT 4.4 5 5.5 V


Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Capacitive free board (USB/I2C)
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2511
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Capacitive free board (USB/I2C)
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2511
Preferred - Not Preferred Not Preferred
