WF50BTIAGDNGC#

Picture of WF50BTIAGDNGC# Picture of WF50BTIAGDNGC#
TFT 5" 800x480 LCD Panel, Interface RGB, 400cd/m², Capacitive touch panel I2C interface (GG, FT5426 IC)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

Winstar Display 5 inch standard higher resolution TFT model. The dimension is between our standard 4.3 inches and standard 5.7 inches TFT modules, but this module is with a better resolution. The resolution of our existing standard 4.3" is with 480x272 resolution and 5.7" TFT is with 320x240, as to the 5'' is with 800x480 resolution. Good option for customers while designing a new project which request a better resolution or competitive price. The 5" touch screen TFT LCD is with outline dimension of 120.7 x 75.8 mm and AA size of 108 x 64.8 mm. Operating temperatures from –20℃ to +70℃; storage temperatures range from -30℃ to +80℃.


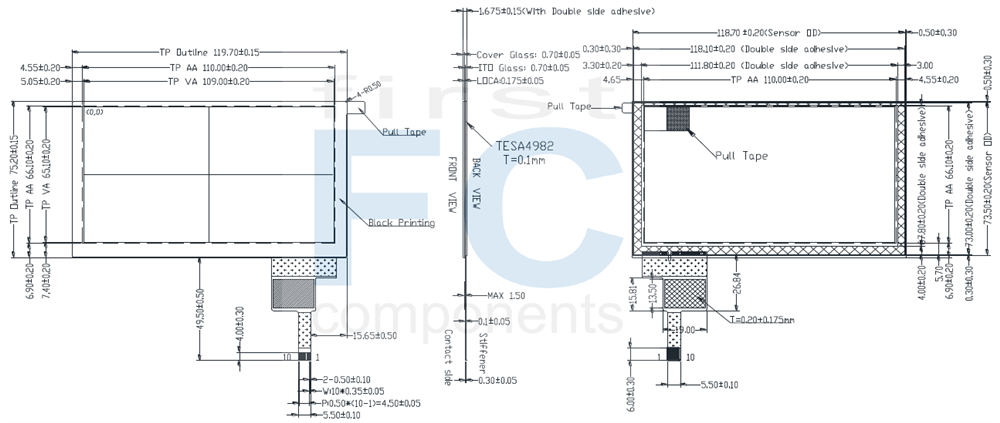

DRAWING

SPECIFICATIONS



Interface

LCM PIN Definition

FPC Connector is used for the module electronics interface.

PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock
31 DISP Display on/off
32 NC/HS No connection /Horizontal sync input
33 NC/VS No connection /Vertical sync input
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection



PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock inputI2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800 × 3(RGB) × 480 dots
Module dimension 120.7(W) × 75.8(H) × 4.475 (D) mm
Active area 108(W) × 64.8(H) mm
Dot pitch 0.135(W) × 0.135(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
TFT Interface 24-bit RGB
Aspect Ratio 16:9
Backlight Type LED, Normally White
PCAP IC FT5426DQ8 Or Equal
PCAP Interface I2C
PCAP FW Version 2
Touch Screen Projected Capacitive Touch Screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolValuesUnit
MinTypMax
Power voltage VDD 3.0 3.3 3.6 V
Current for Driver (Black) IDD - 110 170 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD V
SKU: WF50-800480BD#C03-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€47.90
€39.90
€35.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€47.90 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

Winstar Display 5 inch standard higher resolution TFT model. The dimension is between our standard 4.3 inches and standard 5.7 inches TFT modules, but this module is with a better resolution. The resolution of our existing standard 4.3" is with 480x272 resolution and 5.7" TFT is with 320x240, as to the 5'' is with 800x480 resolution. Good option for customers while designing a new project which request a better resolution or competitive price. The 5" touch screen TFT LCD is with outline dimension of 120.7 x 75.8 mm and AA size of 108 x 64.8 mm. Operating temperatures from –20℃ to +70℃; storage temperatures range from -30℃ to +80℃.


DRAWING

SPECIFICATIONS



Interface

LCM PIN Definition

FPC Connector is used for the module electronics interface.

PinSymbolFunction
1 VLED- Power for LED backlight (Cathode)
2 VLED+ Power for LED backlight (Anode)
3 GND Power Ground
4 VDD Power voltage
5 R0 Red data (LSB)
6 R1 Red data
7 R2 Red data
8 R3 Red data
9 R4 Red data
10 R5 Red data
11 R6 Red data
12 R7 Red data(MSB)
13 G0 Green data(LSB)
14 G1 Green data
15 G2 Green data
16 G3 Green data
17 G4 Green data
18 G5 Green data
19 G6 Green data
20 G7 Green data(MSB)
21 B0 Blue data(LSB)
22 B1 Blue data
23 B2 Blue data
24 B3 Blue data
25 B4 Blue data
26 B5 Blue data
27 B6 Blue data
28 B7 Blue data(MSB)
29 GND Power Ground
30 CLK Sample clock
31 DISP Display on/off
32 NC/HS No connection /Horizontal sync input
33 NC/VS No connection /Vertical sync input
34 DE Data input enable
35 NC No connection
36 GND Power Ground
37 NC No connection
38 NC No connection
39 NC No connection
40 NC No connection



PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.0V
3 SCL I2C clock inputI2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800 × 3(RGB) × 480 dots
Module dimension 120.7(W) × 75.8(H) × 4.475 (D) mm
Active area 108(W) × 64.8(H) mm
Dot pitch 0.135(W) × 0.135(H) mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
TFT Interface 24-bit RGB
Aspect Ratio 16:9
Backlight Type LED, Normally White
PCAP IC FT5426DQ8 Or Equal
PCAP Interface I2C
PCAP FW Version 2
Touch Screen Projected Capacitive Touch Screen
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolValuesUnit
MinTypMax
Power voltage VDD 3.0 3.3 3.6 V
Current for Driver (Black) IDD - 110 170 mA
Input logic high voltage VIH 0.7 VDD - VDD V
Input logic low voltage VIL 0 - 0.3 VDD V
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller FT5426
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller FT5426
Preferred - Not Preferred Not Preferred
