WF57-320240A3D#004-FC

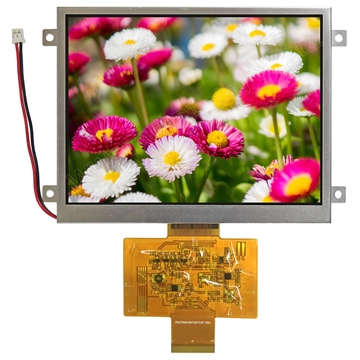

TFT 5.7" 320x240, LCD Module, Interface RGB, 900cd/m², 40pin ZIF Connector, Frame, No touch, Glare

DESCRIPTION



TFT 5.7” is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD module, It is usually designed for industrial application and this module follows RoHs.

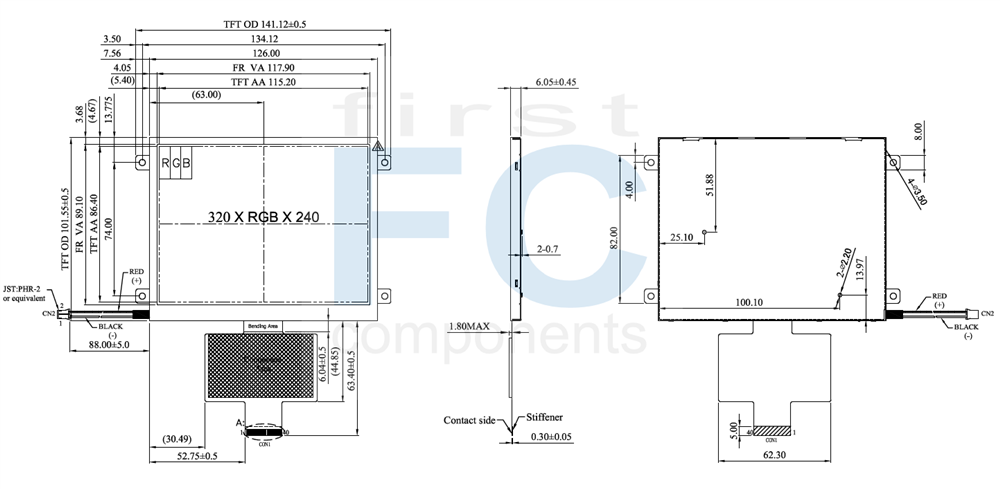

DRAWING





SPECIFICATIONS



Interface

LCM PIN Definition

Pin

Symbol

Function

Remark

1

NC

No connection



2

NC

No connection



3

GND

System ground pin of the IC. Connect to system ground.



4

VCC

Power Supply



5

R0

Red Data bit(LSB)



6

R1

Red Data bit



7

R2

Red Data bit



8

R3

Red Data bit



9

R4

Red Data bit



10

R5

Red Data bit



11

R6

Red Data bit



12

R7

Red Data bit (MSB)



13

G0

Green Data bit(LSB)



14

G1

Green Data bit



15

G2

Green Data bit



16

G3

Green Data bit



17

G4

Green Data bit



18

G5

Green Data bit



19

G6

Green Data bit



20

G7

Green Data bit (MSB)



21

B0

Blue Data bit(LSB)



22

B1

Blue Data bit



23

B2

Blue Data bit



24

B3

Blue Data bit



25

B4

Blue Data bit



26

B5

Blue Data bit



27

B6

Blue Data bit



28

B7

Blue Data bit (MSB)



29

GND

System ground pin of the IC. Connect to system ground.



30

CLK

Dot data clock



31

R/L

Shift direction of device internal shift register control.

Note2,3

32

Hsync

Horizontal sync signal

Note1

33

Vsync

Vertical sync signal

Note1

34

DE

Data Enable signal

Note1

35

U/D

Up/down selection

Note2,3

36

RESET

Hardware reset



37-40

NC

No connection





General Specifications

Item

Dimension

Unit

Size

5.7

inch

Dot Matrix

320 x RGBx240(TFT)

dots

Module dimension

141.12(W) x 101.55(H) x 6.05(D)

mm

Active area

115.2 x 86.40

mm

Dot pitch

0.12 x 0.36

mm

LCD type

TFT, Normally White, Transmissive

TFT Driver IC

HX8218 +HX8615 or Equivalent

TFT Interface

24-bit RGB

View Direction

12 o’clock

Gray Scale Inversion Direction

6 o’clock

Aspect Ratio

4:3

Backlight Type

LED,Normally White

With /Without TP

Without TP

Surface

Glare



Absolute Maximum Ratings

Item

Symbol

Min

Typ

Max

Unit

Operating Temperature

TOP

-20

-

+70

°C

Storage Temperature

TST

-30

-

+80

°C



Electrical Characteristics

Operating conditions

Item

Symbol

Condition

Min

Typ

Max

Unit

Supply Voltage For Logic

VCC

-

3.0

3.3

3.6

V

Supply Current

ICC

VCC=3.3V

-

230

345

mA

LED driving conditions

Parameter

Symbol



Unit

Remark

LED current

-

-

140

-

mA

-

Power Consumption

-

1204

-

1470

mW

-

LED voltage

VBL+

8.6

-

10.5

V

Note 1

LED Life Time

-

-

50,000

-

Hr

Note 2,3,4



Optical Characteristics

Item

Symbol



Min



Unit

Remark

Response time

Tr+ Tf

θ=0°、Φ=0°

-

25

-

.ms

Note 3,5

Contrast ratio

CR

At optimized viewing angle

-

300

-

-

Note 4,5

Color

Chromaticity

White

Wx

θ=0°、Φ=0

0.267

0.317

0.367



Note

2,6,7

Wy

0.303

0.353

0.403



Viewing angle
(Gray Scale
Inversion
Direction)



ΘR

CR≧10

-

60

-



Note 1

ΘL

-

60

-



ΦT

-

70

-

ΦB

-

70

-

Brightness

-

-

800

900



cd/m2

Center of display

Uniformity

(U)

-

75

-

-

%

Note 5



SKU: WF57-320240A3D#004-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€82.10
€73.90
€60.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€82.10 excl tax
