WF57-320240XD#000-FC

Picture of WF57-320240XD#000-FC Picture of WF57-320240XD#000-FC
TFT 5.7'' 320x240, LCD Module, Interface RGB, 900cd/m², 50pin ZIF Connector No frame, No touch, Glare

DESCRIPTION

TFT 5.7” is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD  module, It is usually designed for industrial application and this module follows RoHs.



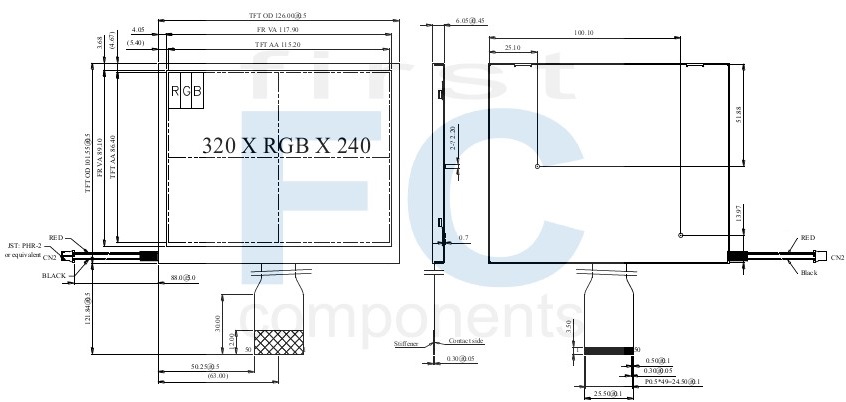

DRAWING



SPECIFICATIONS



Interface

Pin No.SymbolI/ODescription
1~2 IF1~IF2 I Input data format control
3 POL O Polarity Signal connect to VCOM driving circuit.
4 RESET I Hardware reset.
5 SPENA I Chip select
6 SPCL I Serial Clock
7 SPDA I/O Serial Data
8 B0 I Blue Data bit (LSB)
9~14 B1~B6 I Blue Data bit
15 B7 I Blue Data bit(MSB)
16 G0 I Green Data bit(LSB)
17~22 G1~G6 I Green Data bit
23 G7 I Green Data bit(MSB)
24 R0 I Red Data bit(LSB)
25~30 R1~R6 I Red Data bit
31 R7 I Red Data bit(MSB)
32 Hsync I Horizontal synchronous signal
33 Vsync I Vertical synchronous signal
34 Data CLK I Dot data clock
35~36 AVDD I 4.5V~5.5V
37~38 Vcc I 3V~3.6V
39 NPC O NTSC/PAL mode Auto detection result H:NTSC/L:PAL
40~41 VGL I Gate off power
42 UD I Up/Down scan setting. H: Reverse scan / L: Normal scan
43 VGH I Gate on power
44 LRC I Shift direction of device internal shift register control.
45 GND I GROUND
46~47 VCOM I VCOM driving input
48 ENB I Data enable input. Normally pull low.
49~50 GND I

GROUND



General Specifications

ItemDimension
Size 5.7
Dot Matrix 320 × RGB × 240 (TFT)
Module dimension 126.00(W) × 101.55(H) × 6.0(D) (MAX)
Active area 115.2 × 86.40
Dot pitch 0.12 × 0.36
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 4:3
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VCC － 3.0 3.3 3.6 V
Supply Current ICC VCC=3.3V － 140 210 mA

SKU: WF57-320240XD#000-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€77.70
€68.60
€57.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€77.70 excl tax

DESCRIPTION

TFT 5.7” is a TN transmissive type color active matrix TFT liquid crystal display that use amorphous silicon TFT as switching devices. This module is a composed of a TFT_LCD  module, It is usually designed for industrial application and this module follows RoHs.



DRAWING



SPECIFICATIONS



Interface

Pin No.SymbolI/ODescription
1~2 IF1~IF2 I Input data format control
3 POL O Polarity Signal connect to VCOM driving circuit.
4 RESET I Hardware reset.
5 SPENA I Chip select
6 SPCL I Serial Clock
7 SPDA I/O Serial Data
8 B0 I Blue Data bit (LSB)
9~14 B1~B6 I Blue Data bit
15 B7 I Blue Data bit(MSB)
16 G0 I Green Data bit(LSB)
17~22 G1~G6 I Green Data bit
23 G7 I Green Data bit(MSB)
24 R0 I Red Data bit(LSB)
25~30 R1~R6 I Red Data bit
31 R7 I Red Data bit(MSB)
32 Hsync I Horizontal synchronous signal
33 Vsync I Vertical synchronous signal
34 Data CLK I Dot data clock
35~36 AVDD I 4.5V~5.5V
37~38 Vcc I 3V~3.6V
39 NPC O NTSC/PAL mode Auto detection result H:NTSC/L:PAL
40~41 VGL I Gate off power
42 UD I Up/Down scan setting. H: Reverse scan / L: Normal scan
43 VGH I Gate on power
44 LRC I Shift direction of device internal shift register control.
45 GND I GROUND
46~47 VCOM I VCOM driving input
48 ENB I Data enable input. Normally pull low.
49~50 GND I

GROUND



General Specifications

ItemDimension
Size 5.7
Dot Matrix 320 × RGB × 240 (TFT)
Module dimension 126.00(W) × 101.55(H) × 6.0(D) (MAX)
Active area 115.2 × 86.40
Dot pitch 0.12 × 0.36
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 4:3
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VCC － 3.0 3.3 3.6 V
Supply Current ICC VCC=3.3V － 140 210 mA

Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
