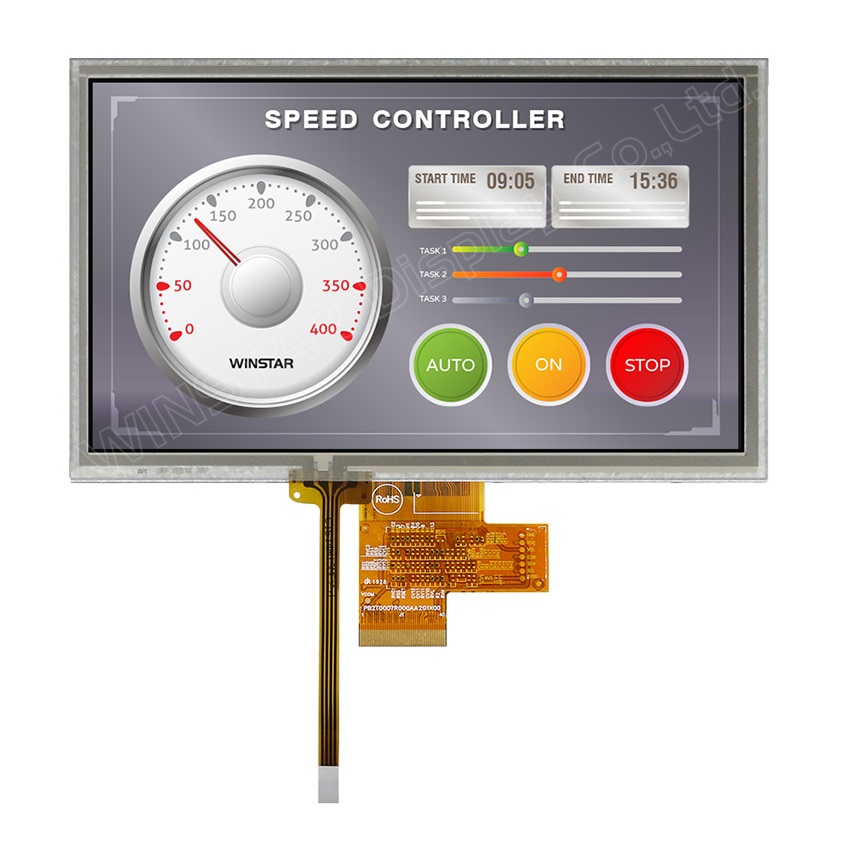

Landscape mode 7 inch IPS TFT module, with Resistive Touch Panel, resolution 1024x600 pixels. It is built in with ST5021 and ST5651 driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 400 nits (typical value), aspect ratio 16:9, Glare surface glass, normally black, transmissive LCD type. This 7" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value).
The supply voltage (VDD) is from 3.0V to 3.6V, typical value 3.3V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.
LCM PIN Definition
