WF70-2801424C9M#0SP14-FC

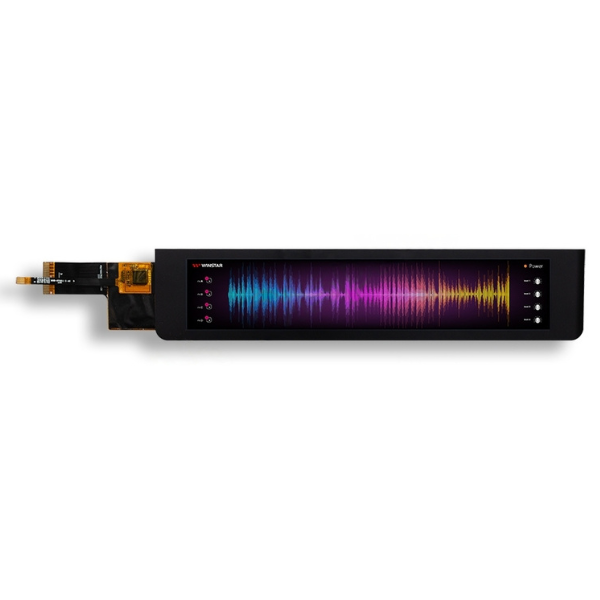

Picture of WF70-2801424C9M#0SP14-FC Picture of WF70-2801424C9M#0SP14-FC
TFT 7" 280×1424, Bar Type, Interface MIPI (IC OTA7290N-C), High Brightness 800 cd/m², Wide view angle (IPS), Capacitive touch panel I2C interface (OCA Bonding)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

WF70-2801424C9M#0SP14-FC is a 7-inch TFT LCD display with a high resolution of 280 x 1424 dots. The module size is 43.3 x 201 mm, with an active area of 33.6 x 170.88 mm. This visually impressive display module adopts IPS technology, offering a wide viewing angle (left: 80 / right: 80 / top: 80 / bottom: 80 degrees). It supports the MIPI DSI interface, enabling high-speed data transmission and fast timing transfer, and comes with the built-in OTA7290N-C driver IC.

This TFT module supports full-color display and touch functionality, with a projected capacitive touch screen (PCAP) (detect points: 5 finger). WF70-2801424C9M#0SP14-FC widely used in audio systems, mixing consoles, and 1U height equipment. The supply voltage range for this display is 3.0V to 3.6V (typical value is 3.3V). The operating temperature range for this module is -20 to +70°C, with a storage temperature range of -30 to +80°C.



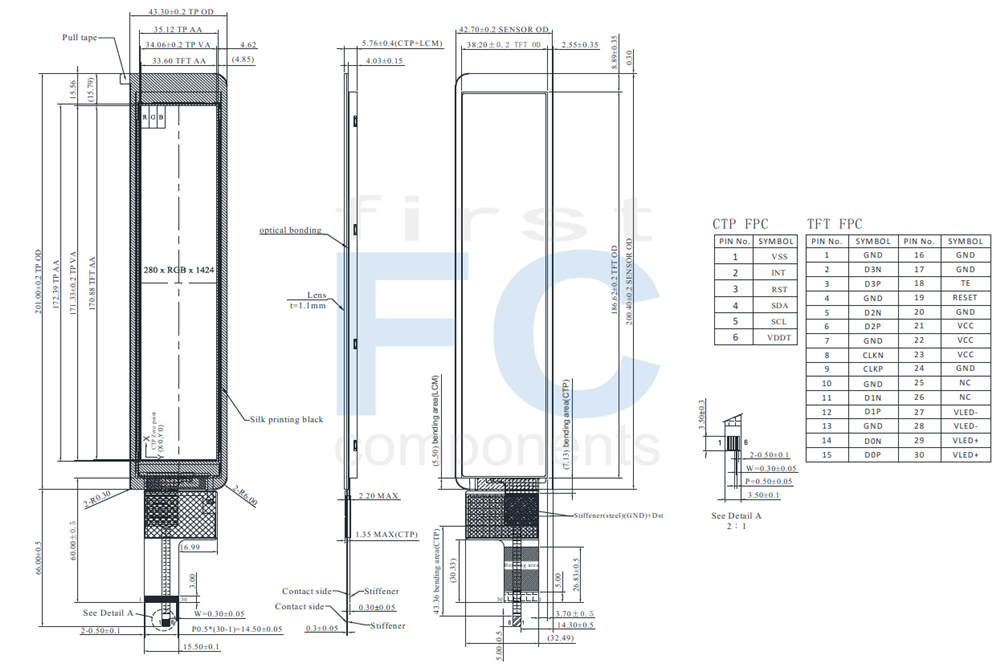

DRAWING



SPECIFICATIONS

Interface Pin Function

LCM PIN Definition

Pin No.SymbolDescription
1 GND Ground.
2 D3N MIPI data input pins
3 D3P
4 GND Ground.
5 D2N MIPI data input pins
6 D2P
7 GND Ground.
8 CLKN MIPI clock input pins.
9 CLKP
10 GND Ground.
11 D1N MIPI data input pins
12 D1P
13 GND Ground.
14 D0N MIPI data input pins
15 D0P
16 GND Ground.
17 GND Ground.
18 TE Tearing effect output pin to synchronize to frame writing.
If not used, open this pin
19 RESET Reset signal pin
20 GND Ground.
21-23 VCC Power supply
24 GND Ground.
25-26 NC Not connect
27-28 VLED- LED cathode
29-30 VLED+ LED anode



Touch FPC Pin Assignment

Pin No.SymbolDescription
1 VSS Ground
2 INT Interrupt request to the host
3 RST Wakeup request from the host
4 SDA I2C data input and output
5 SCL I2C clock input
6 VDDT Power supply



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 280 x RGB x 1424(TFT) dots
Module dimension 43.3 x 201.0 x 5.76 mm
Active area 33.6 x 170.88 mm
Pixel pitch 0.12 x 0.12 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 80/80/80/80
Aspect Ratio 1:5
Driver IC OTA7290N-C
Interface 4-Lanes MIPI
PCAP Driver IC GT911
PCAP Interface I2C
PCAP FW Version 71
PCAP Resolution X:1424 , Y:280
Backlight Type LED,Normally White
Touch Panel Projected capacitive touch screen (PCAP)
Surface Glare
*Color tone slight changed by temperature and driving voltage.



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

TFT LCD Module

ItemSymbolMinTypMaxUnit
Analog Supply voltage VCC 3.0 3.3 3.6 V
Analog supply current ICC － 115 175 mA
Logic input voltage VIH 0.7*VCC － VCC V
VIL GND － 0.3*VCC V
Supply CTP VDDT 2.8 3.3 3.6 V
IDDT － 12.2 20 mA



LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 240 － mA
LED voltage VLED+ 5.5 6.0 6.8 V
LED Life Time － － 50,000 － Hr
SKU: WF70-2801424C9M#0SP14-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€54.30
€48.90
€41.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€54.30 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

WF70-2801424C9M#0SP14-FC is a 7-inch TFT LCD display with a high resolution of 280 x 1424 dots. The module size is 43.3 x 201 mm, with an active area of 33.6 x 170.88 mm. This visually impressive display module adopts IPS technology, offering a wide viewing angle (left: 80 / right: 80 / top: 80 / bottom: 80 degrees). It supports the MIPI DSI interface, enabling high-speed data transmission and fast timing transfer, and comes with the built-in OTA7290N-C driver IC.

This TFT module supports full-color display and touch functionality, with a projected capacitive touch screen (PCAP) (detect points: 5 finger). WF70-2801424C9M#0SP14-FC widely used in audio systems, mixing consoles, and 1U height equipment. The supply voltage range for this display is 3.0V to 3.6V (typical value is 3.3V). The operating temperature range for this module is -20 to +70°C, with a storage temperature range of -30 to +80°C.



DRAWING



SPECIFICATIONS

Interface Pin Function

LCM PIN Definition

Pin No.SymbolDescription
1 GND Ground.
2 D3N MIPI data input pins
3 D3P
4 GND Ground.
5 D2N MIPI data input pins
6 D2P
7 GND Ground.
8 CLKN MIPI clock input pins.
9 CLKP
10 GND Ground.
11 D1N MIPI data input pins
12 D1P
13 GND Ground.
14 D0N MIPI data input pins
15 D0P
16 GND Ground.
17 GND Ground.
18 TE Tearing effect output pin to synchronize to frame writing.
If not used, open this pin
19 RESET Reset signal pin
20 GND Ground.
21-23 VCC Power supply
24 GND Ground.
25-26 NC Not connect
27-28 VLED- LED cathode
29-30 VLED+ LED anode



Touch FPC Pin Assignment

Pin No.SymbolDescription
1 VSS Ground
2 INT Interrupt request to the host
3 RST Wakeup request from the host
4 SDA I2C data input and output
5 SCL I2C clock input
6 VDDT Power supply



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 280 x RGB x 1424(TFT) dots
Module dimension 43.3 x 201.0 x 5.76 mm
Active area 33.6 x 170.88 mm
Pixel pitch 0.12 x 0.12 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 80/80/80/80
Aspect Ratio 1:5
Driver IC OTA7290N-C
Interface 4-Lanes MIPI
PCAP Driver IC GT911
PCAP Interface I2C
PCAP FW Version 71
PCAP Resolution X:1424 , Y:280
Backlight Type LED,Normally White
Touch Panel Projected capacitive touch screen (PCAP)
Surface Glare
*Color tone slight changed by temperature and driving voltage.



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

TFT LCD Module

ItemSymbolMinTypMaxUnit
Analog Supply voltage VCC 3.0 3.3 3.6 V
Analog supply current ICC － 115 175 mA
Logic input voltage VIH 0.7*VCC － VCC V
VIL GND － 0.3*VCC V
Supply CTP VDDT 2.8 3.3 3.6 V
IDDT － 12.2 20 mA



LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 240 － mA
LED voltage VLED+ 5.5 6.0 6.8 V
LED Life Time － － 50,000 － Hr
Date Notice Link/Description
2023/12/02 EOL Discontinuation of Driver IC OTA7290N-C Used in TFT Series WF70-2801424C9



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 7"
Resolution 280x1424
Active Area (mm) 33.60x170.88
Color Full Color
Display Interface MIPI
Display IC OTA7290N-C
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive (Optical Bonding)
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 280x1424
Active Area (mm) 33.60x170.88
Color Full Color
Display Interface MIPI
Display IC OTA7290N-C
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive (Optical Bonding)
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Touch Panel IC Controller GT911
Preferred - Not Preferred Not Preferred
Related products
Picture of WF70-2801424C3M#0P14-FC

WF70-2801424C3M#0P14-FC

TFT 7" 280×1424, Bar Type, Interface MIPI (IC OTA7290B), 500 cd/m², Wide view angle (IPS), Capacitive touch panel I2C interface (OCA Bonding)
From €73.10 excl tax

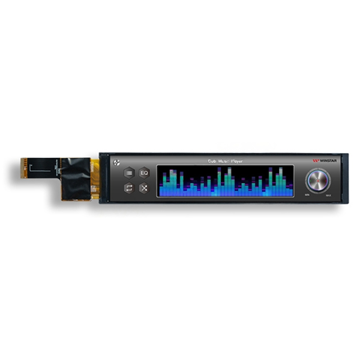

Picture of WF70-2801424C9M#0P0-FC

WF70-2801424C9M#0P0-FC

TFT 7" 280×1424, Bar Type, Interface MIPI (IC OTA7290N-C), 500 cd/m², Wide view angle (IPS), No touch
From €28.20 excl tax

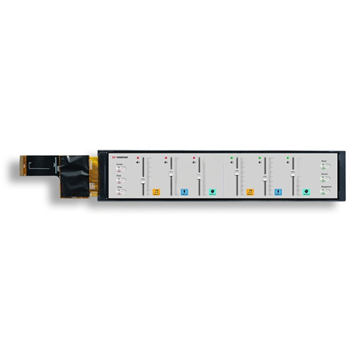

Picture of WF70-2801424C9M#0SP0-FC

WF70-2801424C9M#0SP0-FC

TFT 7" 280×1424, Bar Type, Interface MIPI (IC OTA7290N-C), High Brightness 1000cd/m², Wide view angle (IPS), No touch
From €28.90 excl tax
Picture of CNN5231XXXXXXXXXXX00

CNN5231XXXXXXXXXXX00

ZIF Connector 30 pins, 0.5mm pitch, Top contact
From €2.40 excl tax
Picture of MOLEX_502790-3091

MOLEX_502790-3091

ZIF Connector 30 pins, 0.5mm pitch, Bottom contact
From €3.00 excl tax
Picture of CNN6231XXXXXXXXXXX00

CNN6231XXXXXXXXXXX00

ZIF Connector 30 pins, 0.5mm pitch, Bottom contact
From €2.40 excl tax
Picture of NV30HB-1

NV30HB-1

ZIF Connector 30 pins, 0.5mm pitch, Bottom contact
From €1.20 excl tax
Picture of MOLEX_52746-0633

MOLEX_52746-0633

ZIF Connector 6 pins, 0.5mm pitch, Bottom contact
From €2.00 excl tax
Picture of CN55231XXXXXXXXXXX00

CN55231XXXXXXXXXXX00

ZIF Connector 6 pins, 0.5mm pitch, Top contact
From €2.40 excl tax

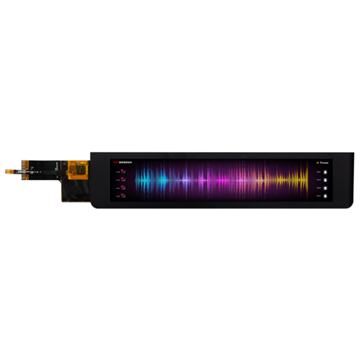

Picture of WFN0700MD8#0SPW15B-FC
