WF70-2801424C9M#0SP0-FC

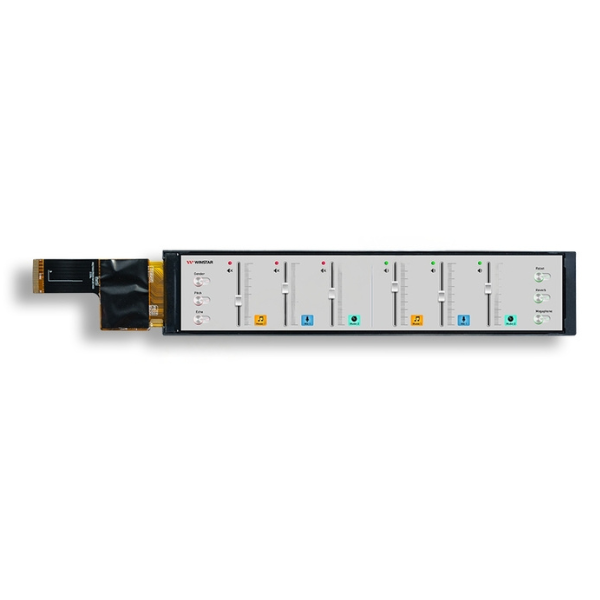

Picture of WF70-2801424C9M#0SP0-FC Picture of WF70-2801424C9M#0SP0-FC
TFT 7" 280×1424, Bar Type, Interface MIPI (IC OTA7290N-C), High Brightness 1000cd/m², Wide view angle (IPS), No touch

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

WF70-2801424C9M#0SP0-FC is a 7-inch high-brightness (1000 cd/m²) bar type TFT LCD display, with module dimensions of 38.2 x 186.62 mm and an active area of 33.6 x 170.88 mm. This 280 x 1424 high-pixel LCD display delivers excellent visual performance and adopts IPS technology, providing wide viewing angles (Left 80°/Right 80°/Up 80°/Down 80°).
This TFT module supports full-color display, enhancing its durability and offering better optical clarity, making it widely used in audio systems, sound consoles, and 1U (rack unit) high equipment.
The power supply voltage range for this display is 3.0V to 3.6V (typical value is 3.3V). The operating temperature range of this module is -20 to +70°C, with a storage temperature range of -30 to +80°C.



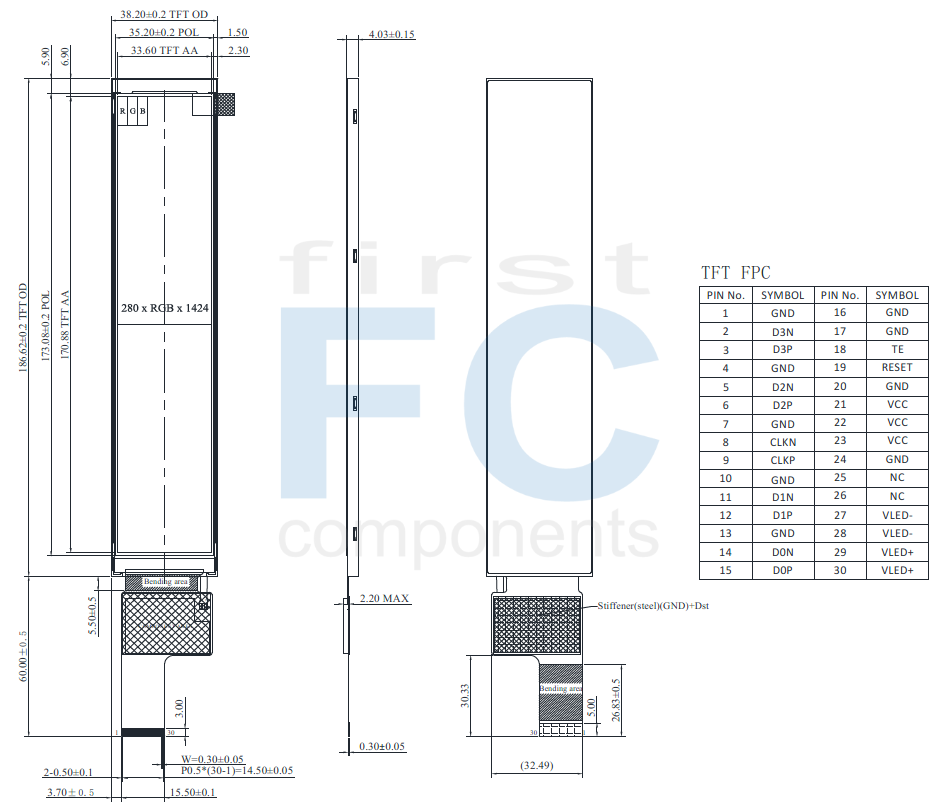

DRAWING



SPECIFICATIONS

Interface Pin Function

LCM PIN Definition

Pin No.SymbolDescription
1 GND Ground.
2 D3N MIPI data input pins
3 D3P
4 GND Ground.
5 D2N MIPI data input pins
6 D2P
7 GND Ground.
8 CLKN MIPI clock input pins.
9 CLKP
10 GND Ground.
11 D1N MIPI data input pins
12 D1P
13 GND Ground.
14 D0N MIPI data input pins
15 D0P
16 GND Ground.
17 GND Ground.
18 TE Tearing effect output pin to synchronize to frame writing.
If not used, open this pin
19 RESET Reset signal pin
20 GND Ground.
21-23 VCC Power supply
24 GND Ground.
25-26 NC Not connect
27-28 VLED- LED cathode
29-30 VLED+ LED anode



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 280 x RGB x 1424(TFT) dots
Module dimension 38.2 x 186.62 x 4.03 mm
Active area 33.6 x 170.88 mm
Pixel pitch 0.12 x 0.12 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 80/80/80/80
Aspect Ratio 1:5
Driver IC OTA7290N-C
Interface 4-Lanes MIPI
Backlight Type LED,Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare
*Color tone slight changed by temperature and driving voltage.



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

TFT LCD Module

ItemSymbolMinTypMaxUnit
Analog Supply voltage VCC 3.0 3.3 3.6 V
Analog supply current ICC － 115 175 mA
Logic input voltage VIH 0.7*VCC － VCC V
VIL GND － 0.3*VCC V



Backlight Driving Conditions

ParameterSymbolMinTypMaxUnit
LED current － － 120 － mA
LED voltage VLED+ 5.5 6.0 6.8 V
LED Life Time － － 50,000 － Hr
SKU: WF70-2801424C9M#0SP0-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€38.00
€34.20
€28.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€38.00 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

WF70-2801424C9M#0SP0-FC is a 7-inch high-brightness (1000 cd/m²) bar type TFT LCD display, with module dimensions of 38.2 x 186.62 mm and an active area of 33.6 x 170.88 mm. This 280 x 1424 high-pixel LCD display delivers excellent visual performance and adopts IPS technology, providing wide viewing angles (Left 80°/Right 80°/Up 80°/Down 80°).
This TFT module supports full-color display, enhancing its durability and offering better optical clarity, making it widely used in audio systems, sound consoles, and 1U (rack unit) high equipment.
The power supply voltage range for this display is 3.0V to 3.6V (typical value is 3.3V). The operating temperature range of this module is -20 to +70°C, with a storage temperature range of -30 to +80°C.



DRAWING



SPECIFICATIONS

Interface Pin Function

LCM PIN Definition

Pin No.SymbolDescription
1 GND Ground.
2 D3N MIPI data input pins
3 D3P
4 GND Ground.
5 D2N MIPI data input pins
6 D2P
7 GND Ground.
8 CLKN MIPI clock input pins.
9 CLKP
10 GND Ground.
11 D1N MIPI data input pins
12 D1P
13 GND Ground.
14 D0N MIPI data input pins
15 D0P
16 GND Ground.
17 GND Ground.
18 TE Tearing effect output pin to synchronize to frame writing.
If not used, open this pin
19 RESET Reset signal pin
20 GND Ground.
21-23 VCC Power supply
24 GND Ground.
25-26 NC Not connect
27-28 VLED- LED cathode
29-30 VLED+ LED anode



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 280 x RGB x 1424(TFT) dots
Module dimension 38.2 x 186.62 x 4.03 mm
Active area 33.6 x 170.88 mm
Pixel pitch 0.12 x 0.12 mm
LCD type TFT, Normally Black ,Transmissive
View Angle 80/80/80/80
Aspect Ratio 1:5
Driver IC OTA7290N-C
Interface 4-Lanes MIPI
Backlight Type LED,Normally White
Touch Panel Without Touch Panel
Surface Anti-Glare
*Color tone slight changed by temperature and driving voltage.



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

TFT LCD Module

ItemSymbolMinTypMaxUnit
Analog Supply voltage VCC 3.0 3.3 3.6 V
Analog supply current ICC － 115 175 mA
Logic input voltage VIH 0.7*VCC － VCC V
VIL GND － 0.3*VCC V



Backlight Driving Conditions

ParameterSymbolMinTypMaxUnit
LED current － － 120 － mA
LED voltage VLED+ 5.5 6.0 6.8 V
LED Life Time － － 50,000 － Hr
Date Notice Link/Description
2023/12/02 EOL Discontinuation of Driver IC OTA7290N-C Used in TFT Series WF70-2801424C9



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 7"
Resolution 280x1424
Active Area (mm) 33.60x170.88
Color Full Color
Display Interface MIPI
Display IC OTA7290N-C
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
