WF70-800480A2D#0S52-FC

TFT 7" 800x480, LCD Module, Interface RGB (50pin), High Brightness 700cd/m², Capacitive Hover Touch

DESCRIPTION



WF70-800480A2D#0S52-FC is a High Brightness 7-inch RGB TFT LCD module with Hover-Touch Capacitive Touch Panel; made of resolution 800x480 pixels. WF70-800480A2D#0S52-FC model is built in with ST-5623D Source IC and ST5091D Gate IC. it supports 24-bit RGB interface, contrast ratio of 800:1 (typical value), high brightness of 700 nits (typical value), aspect ratio of 16:9, view direction of 12 o’clock, gray scale inversion direction of 6 o’clock, and glare surface glass. This Capacitive Touch Panel adopts Hover Touch Technology, supports I2C interface and multi-touch contact and one-touch Hover function. For more details on Hover Touch, please check the Winstar website in the technical article section. Link: Display Touch Technology - Hover Touch

The power supply voltage (VDD) of WF70-800480A2D#0S52-FC is from 3.0V to 3.6V, typical of value 3.3V. It can operate at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

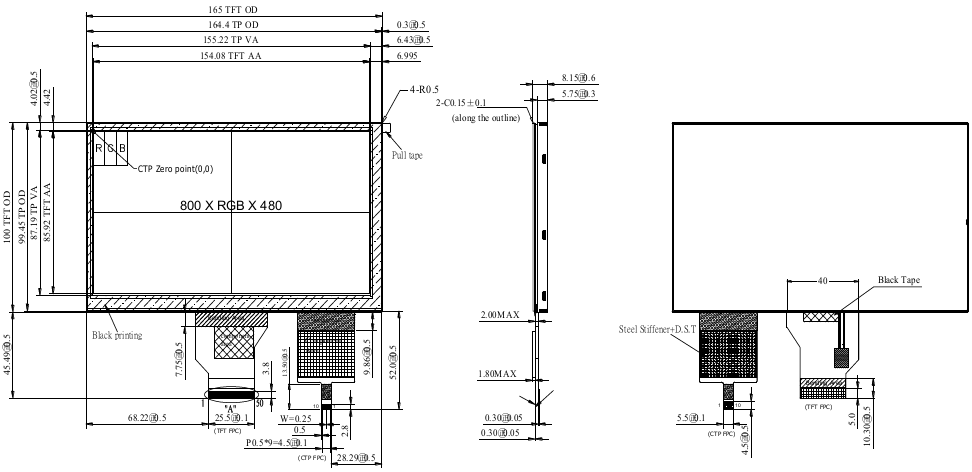

DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1 LED+ Power supply for backlight
2 LED+ Power supply for backlight
3 LED- Backlight ground
4 LED- Backlight ground
5 GND Power ground
6 VCOM Common voltage
7 VCC Power for Digital Circuit
8 MODE DE/SYNC mode select
9 DE Data Input Enable
10 VS Vertical Sync Input
11 HS Horizontal Sync Input
12 B7 Blue data(MSB)
13 B6 Blue data
14 B5 Blue data
15 B4 Blue data
16 B3 Blue data
17 B2 Blue data
18 B1 Blue data
19 B0 Blue data(LSB)
20 G7 Green data(MSB)
21 G6 Green data
22 G5 Green data
23 G4 Green data
24 G3 Green data
25 G2 Green data
26 G1 Green data
27 G0 Green data(LSB)
28 R7 Red data(MSB)
29 R6 Red data
30 R5 Red data
31 R4 Red data
32 R3 Red data
33 R2 Red data
34 R1 Red data
35 R0 Red data(LSB)
36 GND Power Ground
37 DCLK Sample clock (CLK)
38 GND Power Ground
39 L/R Left / right selection
40 U/D Up/down selection
41 VGH Gate ON Voltage
42 VGL Gate OFF Voltage
43 AVDD Power for Analog Circuit
44 RESET Global reset pin.
45 NC No connection
46 VCOM Common Voltage
47 DITHB Dithering function
48 GND Power Ground
49 NC No connection
50 NC No connection


PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 RST External Reset, Low is active
8 NC No connect
9 INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 x RGB x 480 (TFT) dots
Module dimension 165 x 100.0 x 8.15 mm
Active area 154.08 x 85.92 mm
Pixel Pitch 0.1926 x 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
TFT Interface 24-bit RGB
Color arrangement RGB-STRIPE
Driver IC Source IC: ST-5623D, Gate IC: ST5091D
PCAP Active Area 145.22mm*77.19mm
PCAP IC N/A or equivalent
PCAP Interface I2C
Support touch point Contact :five-finger
Hover:One-finger , Hover high:10mm
PCAP Resolution 800*480
Touch Screen Projected capacitive touchscreen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For Logic VCC 3.0 3.3 3.6 V
Supply PCAP VDDT 3.0 3.3 3.6 V
ICTP 15 25 mA
Power voltage AVDD 10.2 10.4 10.6 V
Power Supply For Current VCC =3.3V - 10 15 mA
Power voltage VGH 14.5 15.0 15.5 V
Power voltage VGL -10.5 -10 -9.5 V
Input signal voltage VCOM 3.54 4.04 4.54 V
SKU: WF70-800480A2D#0S52-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€98.20
€86.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€98.20 excl tax

DESCRIPTION



WF70-800480A2D#0S52-FC is a High Brightness 7-inch RGB TFT LCD module with Hover-Touch Capacitive Touch Panel; made of resolution 800x480 pixels. WF70-800480A2D#0S52-FC model is built in with ST-5623D Source IC and ST5091D Gate IC. it supports 24-bit RGB interface, contrast ratio of 800:1 (typical value), high brightness of 700 nits (typical value), aspect ratio of 16:9, view direction of 12 o’clock, gray scale inversion direction of 6 o’clock, and glare surface glass. This Capacitive Touch Panel adopts Hover Touch Technology, supports I2C interface and multi-touch contact and one-touch Hover function. For more details on Hover Touch, please check the Winstar website in the technical article section. Link: Display Touch Technology - Hover Touch

The power supply voltage (VDD) of WF70-800480A2D#0S52-FC is from 3.0V to 3.6V, typical of value 3.3V. It can operate at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.



DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunction
1 LED+ Power supply for backlight
2 LED+ Power supply for backlight
3 LED- Backlight ground
4 LED- Backlight ground
5 GND Power ground
6 VCOM Common voltage
7 VCC Power for Digital Circuit
8 MODE DE/SYNC mode select
9 DE Data Input Enable
10 VS Vertical Sync Input
11 HS Horizontal Sync Input
12 B7 Blue data(MSB)
13 B6 Blue data
14 B5 Blue data
15 B4 Blue data
16 B3 Blue data
17 B2 Blue data
18 B1 Blue data
19 B0 Blue data(LSB)
20 G7 Green data(MSB)
21 G6 Green data
22 G5 Green data
23 G4 Green data
24 G3 Green data
25 G2 Green data
26 G1 Green data
27 G0 Green data(LSB)
28 R7 Red data(MSB)
29 R6 Red data
30 R5 Red data
31 R4 Red data
32 R3 Red data
33 R2 Red data
34 R1 Red data
35 R0 Red data(LSB)
36 GND Power Ground
37 DCLK Sample clock (CLK)
38 GND Power Ground
39 L/R Left / right selection
40 U/D Up/down selection
41 VGH Gate ON Voltage
42 VGL Gate OFF Voltage
43 AVDD Power for Analog Circuit
44 RESET Global reset pin.
45 NC No connection
46 VCOM Common Voltage
47 DITHB Dithering function
48 GND Power Ground
49 NC No connection
50 NC No connection


PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 RST External Reset, Low is active
8 NC No connect
9 INT External interrupt to the host
10 VSS Ground for analog circuit



General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 800 x RGB x 480 (TFT) dots
Module dimension 165 x 100.0 x 8.15 mm
Active area 154.08 x 85.92 mm
Pixel Pitch 0.1926 x 0.179 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
TFT Interface 24-bit RGB
Color arrangement RGB-STRIPE
Driver IC Source IC: ST-5623D, Gate IC: ST5091D
PCAP Active Area 145.22mm*77.19mm
PCAP IC N/A or equivalent
PCAP Interface I2C
Support touch point Contact :five-finger
Hover:One-finger , Hover high:10mm
PCAP Resolution 800*480
Touch Screen Projected capacitive touchscreen (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For Logic VCC 3.0 3.3 3.6 V
Supply PCAP VDDT 3.0 3.3 3.6 V
ICTP 15 25 mA
Power voltage AVDD 10.2 10.4 10.6 V
Power Supply For Current VCC =3.3V - 10 15 mA
Power voltage VGH 14.5 15.0 15.5 V
Power voltage VGL -10.5 -10 -9.5 V
Input signal voltage VCOM 3.54 4.04 4.54 V
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive (Hover touch)
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Touch Panel IC Controller MXT874U
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 800x480
Active Area (mm) 154.08x85.92
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive (Hover touch)
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 50
Pin Pitch 0.5mm
Touch Panel IC Controller MXT874U
Preferred - Not Preferred Preferred
