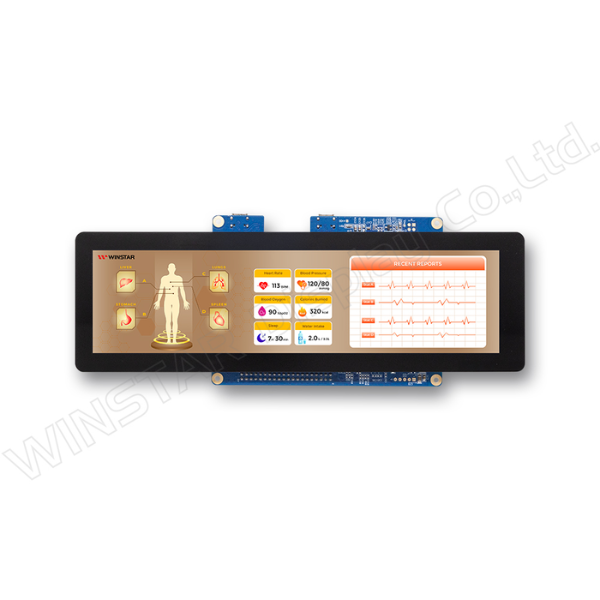

TFT Bar 8.8" 1920x480, HDMI (only DVI signal), IC LT6911C, Wide View Angle (IPS), 450cd/m², Standard Temp., Incl. 2 connectors + Capacitive touch panel USB interface (GG, GT928 IC, OCA Bonding), Suitable for Raspberry Pi 4B & Pi5 versions

DESCRIPTION

WF88-4801920BH#VP15-FC is an 8.8-inch bar type TFT LCD display with a 480×1920 resolution, HDMI (DVI) interface, and an integrated control board for simplified system integration.

This module uses a Normally Black, Transmissive TFT panel with IPS wide viewing angles (85/85/85/85), a typical brightness of 450 cd/m², and a typical contrast ratio of 650:1.

The display includes a projected capacitive touch panel (PCAP) with OCA bonding and USB interface. With its 1:4 bar type format, this module is suitable for HMI, control panel, and instrumentation applications.

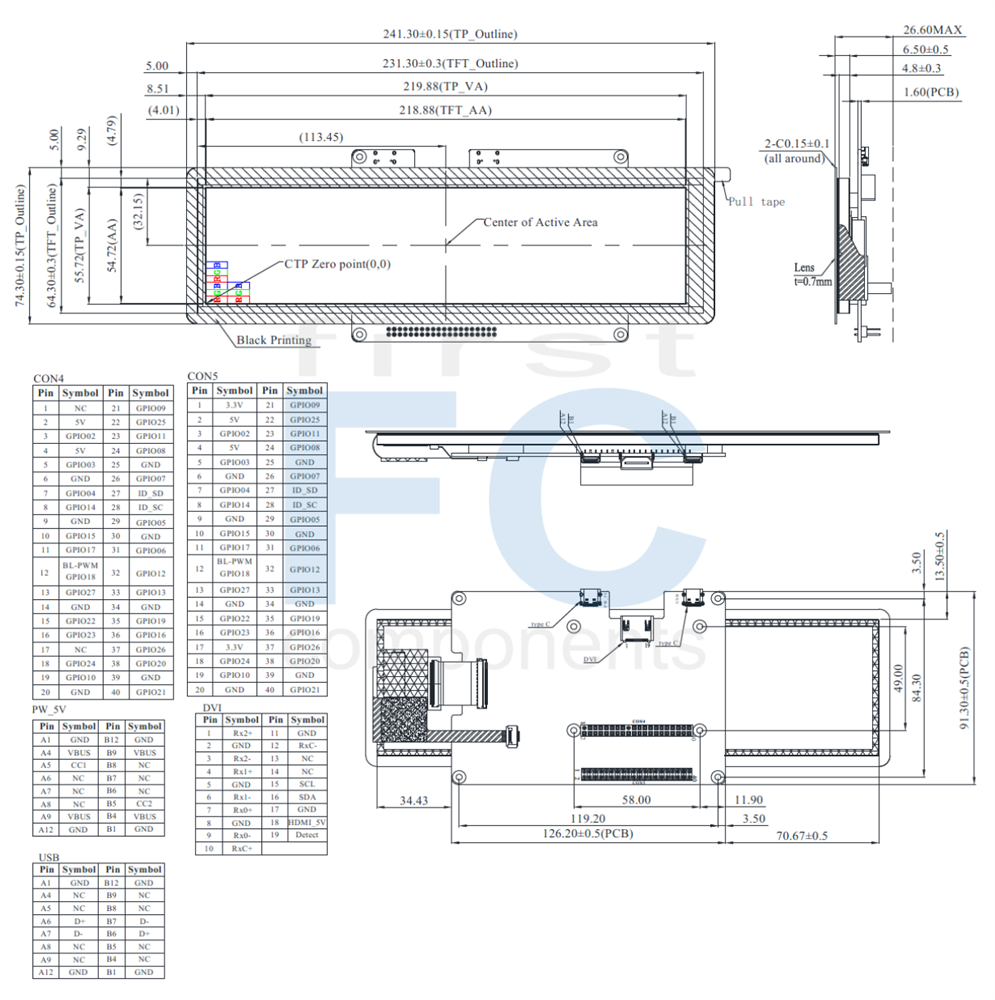

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 8.8 inch
Dot Matrix 480 x R.G.B. x 1920 dots
Module dimension 241.3 x 74.3 x 26.6 mm
Active area 218.88 x 54.72 mm
Pixel pitch 0.114 x 0.114 mm
LCD type TFT, Normally black, Transmissive
Viewing angle 85/85/85/85
Aspect Ratio 1:4
Backlight Type LED, Normally White
Electrical Interface (Logic) DVI
CTP FW Version 0x66
CTP IC GT928 or equivalent
CTP Interface USB
CTP Resolution 480*1920
Touch Panel Capacitive Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 4.75 5 5.25 V
Supply Current For LCM IDD - 813 1220 mA
LED Life Time - - 30,000 - Hr



Interface

1.LCM PIN Definition(CON4)

Pin No.SymbolFunction
1 NC No connection
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 BL-PWM
GPIO18		 Raspberry Pi:GPIO18 (Backlight Enable)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 NC No connection
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


2.CON5

Pin No.SymbolFunction
1 3.3V TFT Module Power limit can only output 3.3V,100mA
2 5V Raspberry Pi:Power 5V
3 GPIO02 Raspberry Pi:GPIO02
4 5V Raspberry Pi:Power 5V
5 GPIO03 Raspberry Pi:GPIO03
6 GND Raspberry Pi:GND
7 GPIO04 Raspberry Pi:GPIO04
8 GPIO14 Raspberry Pi:GPIO14
9 GND Raspberry Pi:GND
10 GPIO15 Raspberry Pi:GPIO15
11 GPIO17 Raspberry Pi:GPIO17
12 BL-PWM
GPIO18		 Raspberry Pi:GPIO18 (Backlight Enable)
13 GPIO27 Raspberry Pi:GPIO27
14 GND Raspberry Pi:GND
15 GPIO22 Raspberry Pi:GPIO22
16 GPIO23 Raspberry Pi:GPIO23
17 3.3V TFT Module Power limit can only output 3.3V,100mA
18 GPIO24 Raspberry Pi:GPIO24
19 GPIO10 Raspberry Pi:GPIO10
20 GND Raspberry Pi:GND
21 GPIO09 Raspberry Pi:GPIO09
22 GPIO25 Raspberry Pi:GPIO25
23 GPIO11 Raspberry Pi:GPIO11
24 GPIO08 Raspberry Pi:GPIO08
25 GND Raspberry Pi:GND
26 GPIO07 Raspberry Pi:GPIO07
27 ID_SD Raspberry Pi:ID_SD
28 ID_SC Raspberry Pi:ID_SC
29 GPIO05 Raspberry Pi:GPIO05
30 GND Raspberry Pi:GND
31 GPIO06 Raspberry Pi:GPIO06
32 GPIO12 Raspberry Pi:GPIO12
33 GPIO13 Raspberry Pi:GPIO13
34 GND Raspberry Pi:GND
35 GPIO19 Raspberry Pi:GPIO19
36 GPIO16 Raspberry Pi:GPIO16
37 GPIO26 Raspberry Pi:GPIO26
38 GPIO20 Raspberry Pi:GPIO20
39 GND Raspberry Pi:GND
40 GPIO21 Raspberry Pi:GPIO21


3.DVI

Pin No.SymbolI/OFunction
1 Rx2+ I Channel-2 positive receiver input; low-voltage signal differential- input pair.
2 GND P Ground
3 Rx2- I Channel-2 negative receiver input; low-voltage signal differential- input pair.
4 Rx1+ I Channel-1 positive receiver input; low-voltage signal differential- input pair.
5 GND P Ground
6 Rx1- I Channel-1 negative receiver input; low-voltage signal differential- input pair.
7 Rx0+ I Channel-0 positive receiver input; low-voltage signal differential- input pair.
8 GND P Ground
9 Rx0- I Channel-0 negative receiver input; low-voltage signal differential- input pair.
10 RxC+ I Clock positive receiver input; low-voltage signal differential- input pair.
11 GND P Ground
12 RxC- I Clock negative receiver input; low-voltage signal differential- input pair.
13-14 NC - No connection
15 SCL I/O DDC(Data Display Channel) Clock
16 SDA I/O DDC(Data Display Channel) Data
17 GND P Ground
18 HDMI_5V P Power Supply
19 Detect I/O Hot plug detect

I: input, O: output, P: Power

4.USB

Pin NoSymbolFunction
A1 GND Power Ground
A4 NC No connection
A5 NC No connection
A6 D+ Data line +
A7 D- Data line -
A8 NC No connection
A9 NC No connection
A12 GND Power Ground
B12 GND Power Ground
B9 NC No connection
B8 NC No connection
B7 D- Data line -
B6 D+ Data line +
B5 NC No connection
B4 NC No connection
B1 GND Power Ground


5. PW_5V

Pin NoSymbolFunction
A1 GND Power Ground
A4 VBUS Power 5V
A5 CC1 Configuration channel
A6 NC No connection
A7 NC No connection
A8 NC No connection
A9 VBUS Power 5V
A12 GND Power Ground
B12 GND Power Ground
B9 VBUS Power 5V
B8 NC No connection
B7 NC No connection
B6 NC No connection
B5 CC2 Configuration channel
B4 VBUS Power 5V
B1 GND Power Ground
