WL0F00043000WGAACSA00-FC

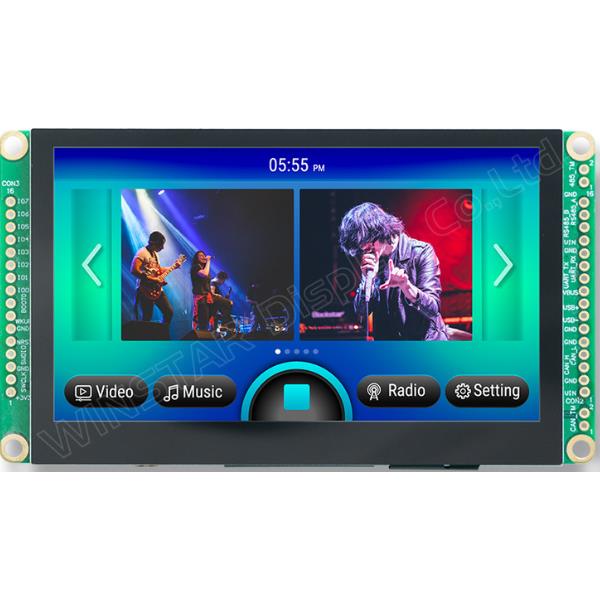

Picture of WL0F00043000WGAACSA00-FC Picture of WL0F00043000WGAACSA00-FC
TFT 4.3" 480x272, CAN Bus interface with CUSTOMIZABLE CAN ID & GPIO support, 400cd/m², Wide View Angle (IPS), Super Extended Temperature, Capacitive Touch Panel (GG)

DESCRIPTION

NEW 2nd generation 4.3” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages and GPIO functions.



4.3 Inch Smart Display Feature:

  1. Self-testing after booting function.
  2. CAN bus communication interface.
  3. Supports Custom CAN ID protocol, default baud rate at 250KB.
  4. Built in flash memory, store the fonts and pictures.
  5. Supports GPIO functions.
  6. Support capacitive touch panel (CTP).
  7. Smart Display scenario is slave device display and action from Master Device instruction.
  8. Embedded buzzer controlled by Master Device.
  9. Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  10. Design the UI without writing a line of code by winstar GUI builder! (►Link to GUI Builder Introduction)

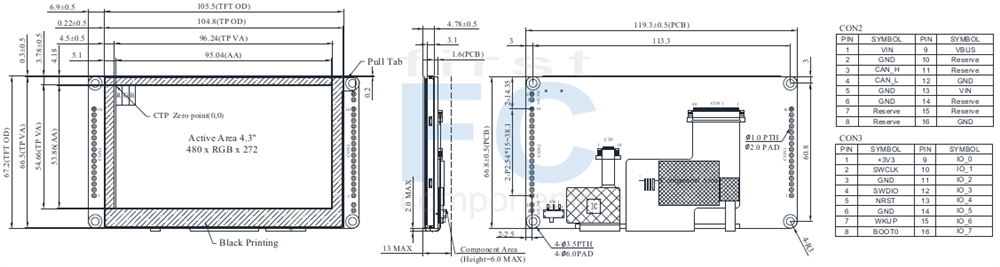

DRAWING





SPECIFICATIONS



General Specifications

ItemStandard ValueUnit
Operating voltage 5-28 Vdc
Communication Interface CAN bus N/A
MCU STM32F750 N/A
Flash Memory 16 MB
LCD display size 4.3 inch
Dot Matrix 480 × 3 (RGB) × 272 dot
Module dimension 119.3(W) × 67.2(H) × 13 mm
Active area 95.04(W) × 53.856 (H) mm
Pixel pitch 0.198(H) × 0.198(V) mm
Brightness Min: 300; Typ: 400 cd/m2
Backlight Type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 16:9
With /Without TP With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage VCC 5 12 28 V
Supply Current ICC - 180   mA



BOM

ItemDescription
LCM WF43-480272WD#APW3-FC
PCBA SV10004R300WB00N0100



Interface Pin Function

CON2 definition

PinSymbolFunctionRemark
16-5 Reserved -- --
4 CAN_L CAN bus D- I/O
3 CAN_H CAN bus D+ I/O
2 GND Power GND Input
1 VIN Power +5V~+28V Input


CON3 definition

Pin

SymbolFunctionRemark
16 IO_7 GPIO (PC5) I/O
15 IO_6 GPIO (PC4) I/O
14 IO_5 GPIO (PC1) I/O
13 IO_4 GPIO (PF9) I/O
12 IO_3 GPIO (PB5) I/O
11 IO_2 GPIO (PB4) I/O
10 IO_1 GPIO (PD5) I/O
9 IO_0 GPIO (PD4) I/O
8 Reversed -- --
7 WKUP Wake Up (PA0) Input
6 Reversed -- --
5 NRST Reset pin for SWD interface Input
4 SWDIO Data pin for SWD interface I/O
3 GND GND for SWD interface Output
2 SWCLK CLK pin for SWD interface Input
1 +3V3 3.3V power for SWD interface Output



CAN-TM definition

PinStatusFunctionRemark
12 Open Switch off termianal resistance 120Ω Default
Short Activate terminal resistance 120Ω --



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

Schermata iniziale

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection



Example Screen Layout

Example Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC



Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01



Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01







SKU: WL0F00043000WGAACSA00-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€84.60
€76.10
€66.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€84.60 excl tax

DESCRIPTION

NEW 2nd generation 4.3” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages and GPIO functions.



4.3 Inch Smart Display Feature:

  1. Self-testing after booting function.
  2. CAN bus communication interface.
  3. Supports Custom CAN ID protocol, default baud rate at 250KB.
  4. Built in flash memory, store the fonts and pictures.
  5. Supports GPIO functions.
  6. Support capacitive touch panel (CTP).
  7. Smart Display scenario is slave device display and action from Master Device instruction.
  8. Embedded buzzer controlled by Master Device.
  9. Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  10. Design the UI without writing a line of code by winstar GUI builder! (►Link to GUI Builder Introduction)



DRAWING





SPECIFICATIONS



General Specifications

ItemStandard ValueUnit
Operating voltage 5-28 Vdc
Communication Interface CAN bus N/A
MCU STM32F750 N/A
Flash Memory 16 MB
LCD display size 4.3 inch
Dot Matrix 480 × 3 (RGB) × 272 dot
Module dimension 119.3(W) × 67.2(H) × 13 mm
Active area 95.04(W) × 53.856 (H) mm
Pixel pitch 0.198(H) × 0.198(V) mm
Brightness Min: 300; Typ: 400 cd/m2
Backlight Type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Aspect Ratio 16:9
With /Without TP With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage VCC 5 12 28 V
Supply Current ICC - 180   mA



BOM

ItemDescription
LCM WF43-480272WD#APW3-FC
PCBA SV10004R300WB00N0100



Interface Pin Function

CON2 definition

PinSymbolFunctionRemark
16-5 Reserved -- --
4 CAN_L CAN bus D- I/O
3 CAN_H CAN bus D+ I/O
2 GND Power GND Input
1 VIN Power +5V~+28V Input


CON3 definition

Pin

SymbolFunctionRemark
16 IO_7 GPIO (PC5) I/O
15 IO_6 GPIO (PC4) I/O
14 IO_5 GPIO (PC1) I/O
13 IO_4 GPIO (PF9) I/O
12 IO_3 GPIO (PB5) I/O
11 IO_2 GPIO (PB4) I/O
10 IO_1 GPIO (PD5) I/O
9 IO_0 GPIO (PD4) I/O
8 Reversed -- --
7 WKUP Wake Up (PA0) Input
6 Reversed -- --
5 NRST Reset pin for SWD interface Input
4 SWDIO Data pin for SWD interface I/O
3 GND GND for SWD interface Output
2 SWCLK CLK pin for SWD interface Input
1 +3V3 3.3V power for SWD interface Output



CAN-TM definition

PinStatusFunctionRemark
12 Open Switch off termianal resistance 120Ω Default
Short Activate terminal resistance 120Ω --



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

Schermata iniziale

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection



Example Screen Layout

Example Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC



Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01



Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01







Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Power supply 12V
Display Interface CAN Bus + GPIO
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -30~80
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Power supply 12V
Display Interface CAN Bus + GPIO
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -30~80
Preferred - Not Preferred Preferred
