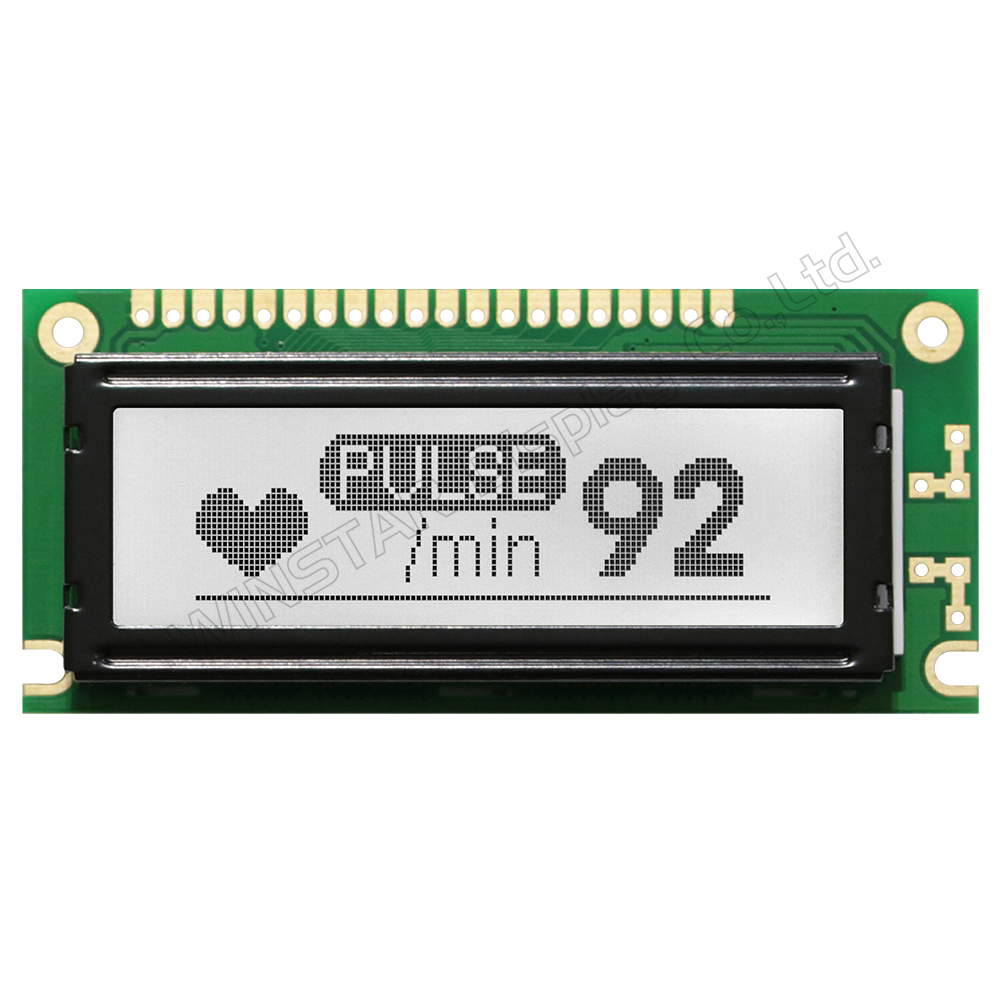

WG12232J-TFH-N#A

Graphic LCD 2.2'' 122x32, B/L white, FSTN white pos, COB, 5V, Interface 6800, 6 O'clock, No VNEG, Internal oscillation

DESCRIPTION

WG12232J is a 122x32 graphic LCD module which is built in with SBN1661G controller IC or equivalent controller.  This 122x32 LCD display supports 6800 8-bit parallel interface and 5V power supply. WG12232J also supports Negative Voltage 3V optional.  This display is built in with internal oscillation, please choose WG12232E if you need external oscillation.

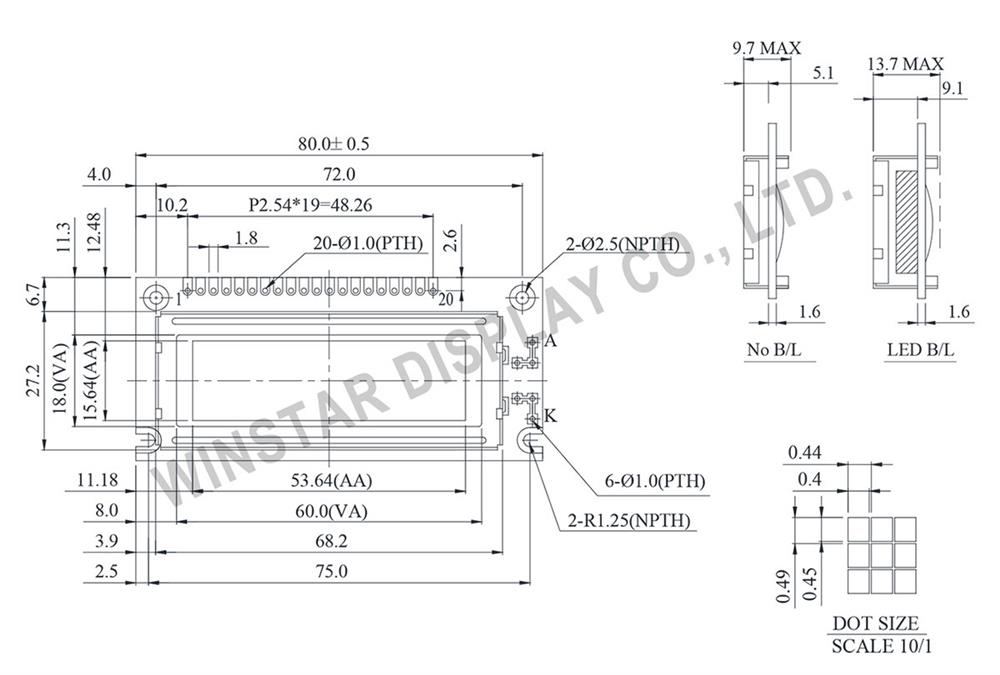

DRAWING

Winstar Display WG12232J Graphic LCD Module 122x32

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction  select signal
5 CS1 Chip select signal for IC1
6 CS2 Chip select signal for IC2
7 CL/NC External clock 2KHZ
8 E/NC Enable signal
9 R/ W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 /RES Controller reset signal, Active Low
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 80.0 × 27.2 mm
Viewing Area 60.0 × 18.0 mm
Mounting Hole 75.0 × 28.0 mm
Dot Pitch 0.44 × 0.49 mm
Dot Size 0.40 × 0.45 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.35 V


SKU: WG12232J-TFH-N#A
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€10.30
€7.60
€7.30
€7.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€10.30 excl tax

DESCRIPTION

WG12232J is a 122x32 graphic LCD module which is built in with SBN1661G controller IC or equivalent controller.  This 122x32 LCD display supports 6800 8-bit parallel interface and 5V power supply. WG12232J also supports Negative Voltage 3V optional.  This display is built in with internal oscillation, please choose WG12232E if you need external oscillation.


DRAWING

Winstar Display WG12232J Graphic LCD Module 122x32

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction  select signal
5 CS1 Chip select signal for IC1
6 CS2 Chip select signal for IC2
7 CL/NC External clock 2KHZ
8 E/NC Enable signal
9 R/ W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 /RES Controller reset signal, Active Low
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 80.0 × 27.2 mm
Viewing Area 60.0 × 18.0 mm
Mounting Hole 75.0 × 28.0 mm
Dot Pitch 0.44 × 0.49 mm
Dot Size 0.40 × 0.45 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.35 V


Products specifications
Brand Winstar
Size 2.2"
Resolution 122x32
Active Area (mm) 53.64x15.64
Dot Size 0.40x0.45
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC Controller SBN1661G
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.2"
Resolution 122x32
Active Area (mm) 53.64x15.64
Dot Size 0.40x0.45
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC Controller SBN1661G
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
