WL0F00050000FGXAANA00-FC

Picture of WL0F00050000FGXAANA00-FC Picture of WL0F00050000FGXAANA00-FC
TFT 5" 800x480, Multi-Interface Development System, MCU STM32U599, 400cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)

DESCRIPTION

5-inch HMI Display Development Board

WL0F00050000FGXAANA00-FC is a 5-inch HMI display development board designed for engineers developing industrial control systems and graphical user interface (GUI) applications. The board combines a 5-inch IPS TFT LCD module with a capacitive touch panel and a high-performance STM32U599ZIT6 MCU, providing a complete hardware platform for rapid HMI development, system evaluation, and application prototyping.

The integrated display provides 800×480 resolution, wide viewing angles (80/80/80/80), and a typical brightness of 400 cd/m², ensuring clear and stable visual output for industrial control panels and embedded graphical interfaces. The capacitive touch panel communicates via an I²C interface, enabling responsive and intuitive user interaction.

At the core of the system is the ultra-low-power STM32U599 series MCU, featuring 2MB Flash and approximately 2.5MB SRAM. The MCU integrates a GPU2D graphics accelerator and LTDC display controller, allowing efficient rendering of graphical user interfaces. In addition, the board includes 16MB external serial flash memory to store fonts, images, and other GUI assets required by HMI applications.

The development board supports multiple communication interfaces including RS485, UART, SPI, I²C, and USB Type-C (USB 2.0 OTG), and also provides a Micro SD card slot for data storage and firmware updates. With a wide input voltage range of 5–28V DC, the board can be easily integrated into various industrial and embedded systems.

To accelerate development, the platform is compatible with the STM32 development ecosystem including STM32CubeMX, STM32CubeIDE, STM32CubeProgrammer, and TouchGFX Designer. An initial code project is provided to help developers quickly start GUI design, firmware development, and system integration.

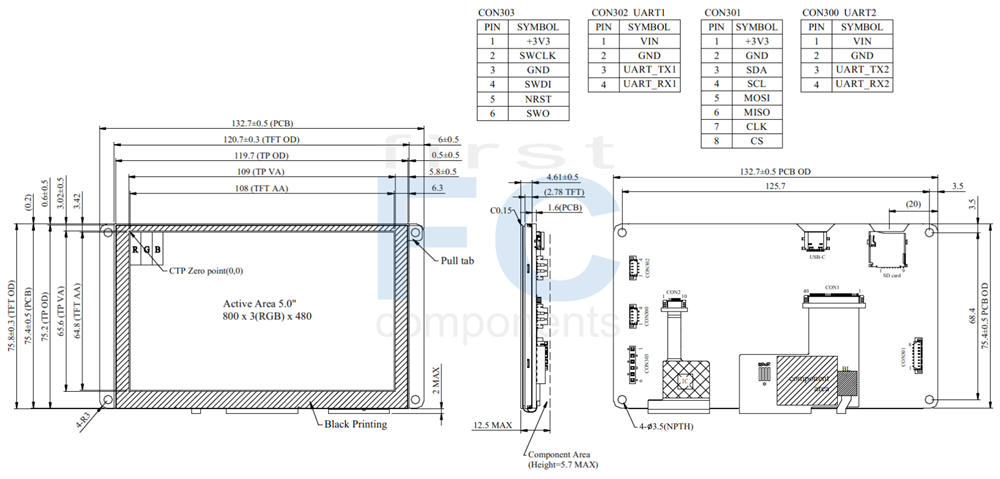

DRAWING

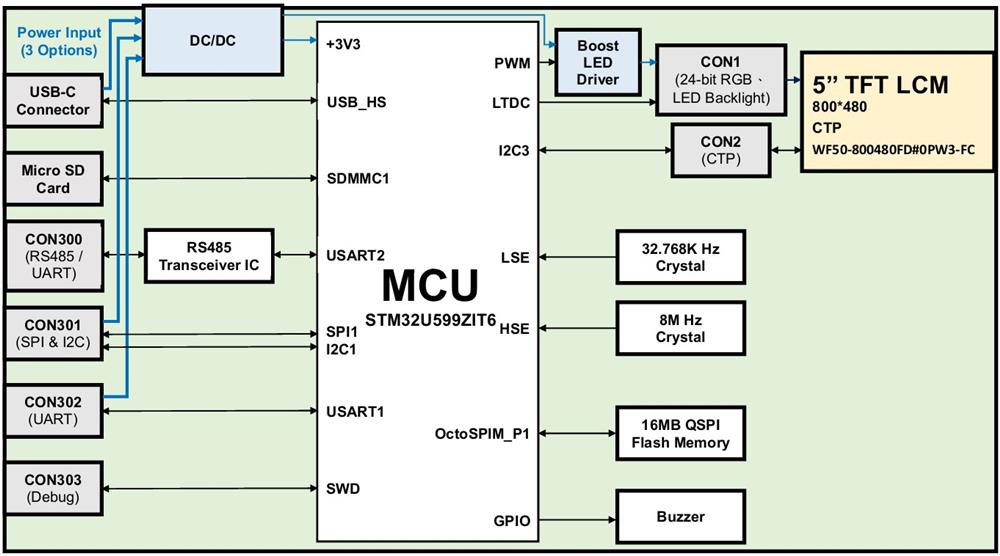

Block diagram

SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 5~28 Vdc
Communication Interface USB-C －
Micro SD Card －
CON300: Option for RS485, UART －
CON301: SPI －
CON301: I²C －
CON302: UART －
MCU STM32U599ZIT6
(2MB Flash, 2.5MB RAM)		 N/A
Flash Memory 16 MB
LCD display size 5 inch
Dot Matrix 800 × R.G.B × 480(TFT) dot
Module dimension 132.7(W) × 75.8(H) × 12.5(D) mm
Active area 108 (W) × 64.8(H) mm
Pixel pitch 0.135(W) × 0.135(H) mm
Brightness Min:300; Typ:400
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 15:9
Touch Panel Capacitive Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC － 5 12 28 V
Supply LCM Current I(mA) － － 150 － mA



BOM

ItemDescription
LCM WF50-800480FD#0PW3-FC
PCBA SV10005R000FJ00N0100



Interface Pin Function

CON300 Definition:

PinSymbolFunctionRemark
1 VIN Power supply 5V~28V input Input
2 GND Power supply GND input Input
3 UART_TX2 USART TX2 interface I/O
4 UART_RX2 USART RX2 interface I/O


CON301 Definition:

PinSymbolFunctionRemark
1 +3V3 Power supply +3V3 output Output
2 GND Power supply GND output Output
3 SDA Serial Data Line I/O
4 SCL Serial Clock Line Output
5 MOSI Master Out Slave In I/O
6 MISO Master In Slave Out I/O
7 CLK Clock I/O
8 CS Chip Select I/O


CON302 Definition:

PinSymbolFunctionRemark
1 VIN Power supply 5V~28V input Input
2 GND Power supply GND input Input
3 UART_TX1 USART TX1 interface I/O
4 UART_RX1 USART RX1 interface I/O


CON303 Definition:

PinSymbolFunctionRemark
1 +3V3 3.3V power for JTAG interface Output
2 SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 SWDI Data pin for JTAG interface I/O
5 NRST Reset pin for JTAG interface Input
6 SWO Serial Wire Output Output
SKU: WL0F00050000FGXAANA00-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€97.00
€92.20
€87.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€97.00 excl tax

DESCRIPTION

5-inch HMI Display Development Board

WL0F00050000FGXAANA00-FC is a 5-inch HMI display development board designed for engineers developing industrial control systems and graphical user interface (GUI) applications. The board combines a 5-inch IPS TFT LCD module with a capacitive touch panel and a high-performance STM32U599ZIT6 MCU, providing a complete hardware platform for rapid HMI development, system evaluation, and application prototyping.

The integrated display provides 800×480 resolution, wide viewing angles (80/80/80/80), and a typical brightness of 400 cd/m², ensuring clear and stable visual output for industrial control panels and embedded graphical interfaces. The capacitive touch panel communicates via an I²C interface, enabling responsive and intuitive user interaction.

At the core of the system is the ultra-low-power STM32U599 series MCU, featuring 2MB Flash and approximately 2.5MB SRAM. The MCU integrates a GPU2D graphics accelerator and LTDC display controller, allowing efficient rendering of graphical user interfaces. In addition, the board includes 16MB external serial flash memory to store fonts, images, and other GUI assets required by HMI applications.

The development board supports multiple communication interfaces including RS485, UART, SPI, I²C, and USB Type-C (USB 2.0 OTG), and also provides a Micro SD card slot for data storage and firmware updates. With a wide input voltage range of 5–28V DC, the board can be easily integrated into various industrial and embedded systems.

To accelerate development, the platform is compatible with the STM32 development ecosystem including STM32CubeMX, STM32CubeIDE, STM32CubeProgrammer, and TouchGFX Designer. An initial code project is provided to help developers quickly start GUI design, firmware development, and system integration.



DRAWING

Block diagram

SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 5~28 Vdc
Communication Interface USB-C －
Micro SD Card －
CON300: Option for RS485, UART －
CON301: SPI －
CON301: I²C －
CON302: UART －
MCU STM32U599ZIT6
(2MB Flash, 2.5MB RAM)		 N/A
Flash Memory 16 MB
LCD display size 5 inch
Dot Matrix 800 × R.G.B × 480(TFT) dot
Module dimension 132.7(W) × 75.8(H) × 12.5(D) mm
Active area 108 (W) × 64.8(H) mm
Pixel pitch 0.135(W) × 0.135(H) mm
Brightness Min:300; Typ:400
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 15:9
Touch Panel Capacitive Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC － 5 12 28 V
Supply LCM Current I(mA) － － 150 － mA



BOM

ItemDescription
LCM WF50-800480FD#0PW3-FC
PCBA SV10005R000FJ00N0100



Interface Pin Function

CON300 Definition:

PinSymbolFunctionRemark
1 VIN Power supply 5V~28V input Input
2 GND Power supply GND input Input
3 UART_TX2 USART TX2 interface I/O
4 UART_RX2 USART RX2 interface I/O


CON301 Definition:

PinSymbolFunctionRemark
1 +3V3 Power supply +3V3 output Output
2 GND Power supply GND output Output
3 SDA Serial Data Line I/O
4 SCL Serial Clock Line Output
5 MOSI Master Out Slave In I/O
6 MISO Master In Slave Out I/O
7 CLK Clock I/O
8 CS Chip Select I/O


CON302 Definition:

PinSymbolFunctionRemark
1 VIN Power supply 5V~28V input Input
2 GND Power supply GND input Input
3 UART_TX1 USART TX1 interface I/O
4 UART_RX1 USART RX1 interface I/O


CON303 Definition:

PinSymbolFunctionRemark
1 +3V3 3.3V power for JTAG interface Output
2 SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 SWDI Data pin for JTAG interface I/O
5 NRST Reset pin for JTAG interface Input
6 SWO Serial Wire Output Output
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x 64.80
Color Full Color
Power supply 12V
Display Interface RS485 // UART // USB // I2C // SPI // SD
Display IC STM32U599
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -30~80
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x 64.80
Color Full Color
Power supply 12V
Display Interface RS485 // UART // USB // I2C // SPI // SD
Display IC STM32U599
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -30~80
Preferred - Not Preferred Preferred
