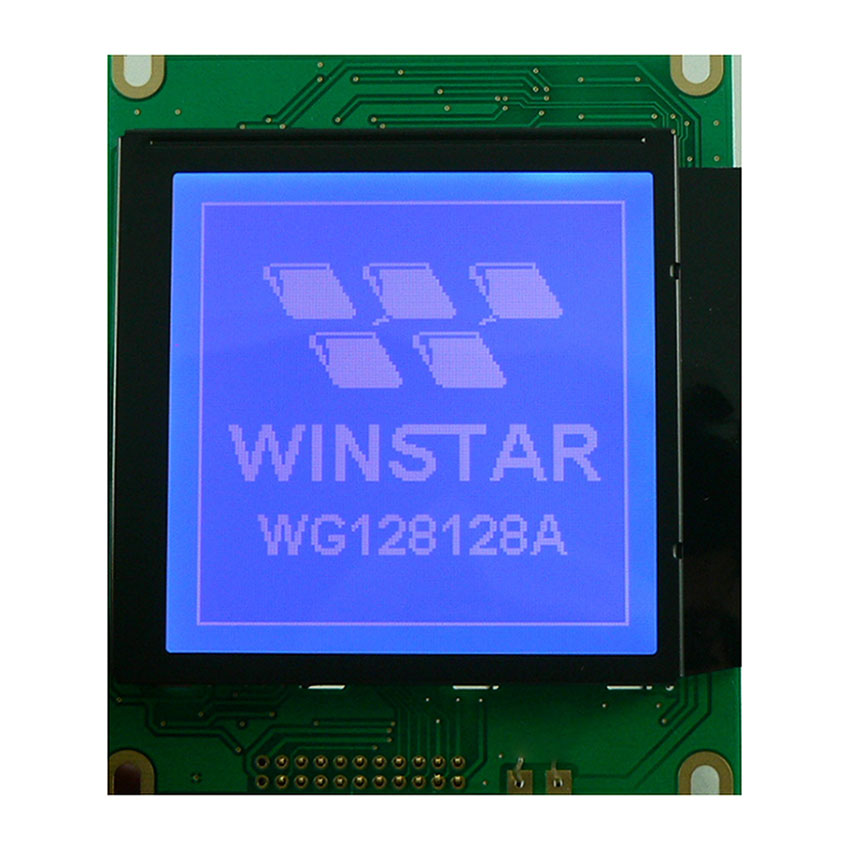

WG128128A-TMI-VZ#

Graphic LCD 3.1" 128x128, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 8080, 6 O'clock, VNEG

DESCRIPTION

WG128128A is a monochrome LCD display 128x128 module which is having the module dimension of 85x100 mm and AA size of 55.01x55.01 mm. WG128128A model is built in with RA6963; it communicates via 8080 8-bit parallel interface and 3.3V negative voltage optional. This module is 128x128 graphic mode --or-- Character Generator mode (Character font) optional. WG128128A is available in various LED colors including yellow/green, blue, white, red, etc (minimum order may be required). This LCD 128x128 module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

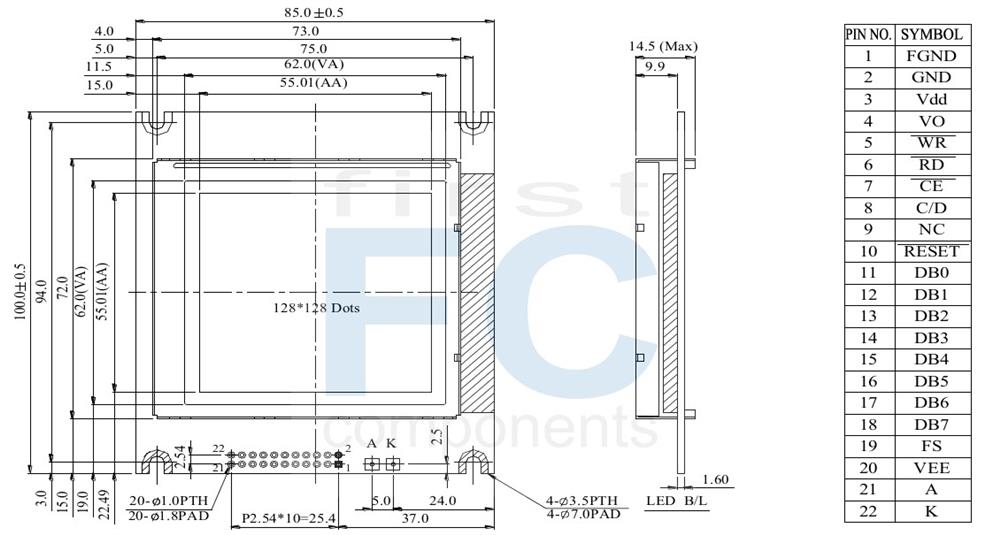

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	FGND	Frame ground
2	GND	Ground
3	V_DD	Power supply for logic
4	V_O	Contrast Adjustment
5	/WR	Data write. Write data into LCD Controller
6	/RD	Data read. Read data from LCD Controller
7	/CE	Enable signal
8	C/D	Data/ Instruction select signal
9	NC	No connection
10	/RESET	Controller reset signal, Active Low
11~18	DB0~DB7	Data bus line
19	FS	Selection of font; H : 6 * 8 , L : 8 * 8
20	V_EE	Negative Voltage Output
21	A	Power supply for B/L +
22	K	Power supply for B/L -

Mechanical Data

Item	Standard Value	Unit
Module Dimension	85.0 × 100.0	mm
Viewing Area	62.0 × 62.0	mm
Mounting Hole	75.0 × 94.0	mm
Dot Pitch	0.43 × 0.43	mm
Dot Size	0.40 × 0.40	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	16.35	V

SKU: WG128128A-TMI-VZ#

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€42.70

€35.60

€34.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€42.70 excl tax

Overview
Product Notifications
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	FGND	Frame ground
2	GND	Ground
3	V_DD	Power supply for logic
4	V_O	Contrast Adjustment
5	/WR	Data write. Write data into LCD Controller
6	/RD	Data read. Read data from LCD Controller
7	/CE	Enable signal
8	C/D	Data/ Instruction select signal
9	NC	No connection
10	/RESET	Controller reset signal, Active Low
11~18	DB0~DB7	Data bus line
19	FS	Selection of font; H : 6 * 8 , L : 8 * 8
20	V_EE	Negative Voltage Output
21	A	Power supply for B/L +
22	K	Power supply for B/L -

Mechanical Data

Item	Standard Value	Unit
Module Dimension	85.0 × 100.0	mm
Viewing Area	62.0 × 62.0	mm
Mounting Hole	75.0 × 94.0	mm
Dot Pitch	0.43 × 0.43	mm
Dot Size	0.40 × 0.40	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	16.35	V

Date	Notice	Link/Description
2021/03/18	PCN	RAIO IC RA6963-N > RA6963-N1 for monochrome COB LCDs

For more details, please contact us @ [email protected]

Products specifications

Brand	Winstar
Size	3.1"
Resolution	128x128
Active Area (mm)	55.01x55.01
Dot Size	0.40x0.40
B/L color, LCD type	B/L white, STN blue neg
Power supply	5V
Display Interface	8080
Display IC	RA6963
Constructive Structure	COB
View Angle	6H
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	22
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
