WG14432C5-TMI-VGB#

Graphic LCD 2.4" 144x32, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800/SPI, 6 O'clock, VNEG



RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

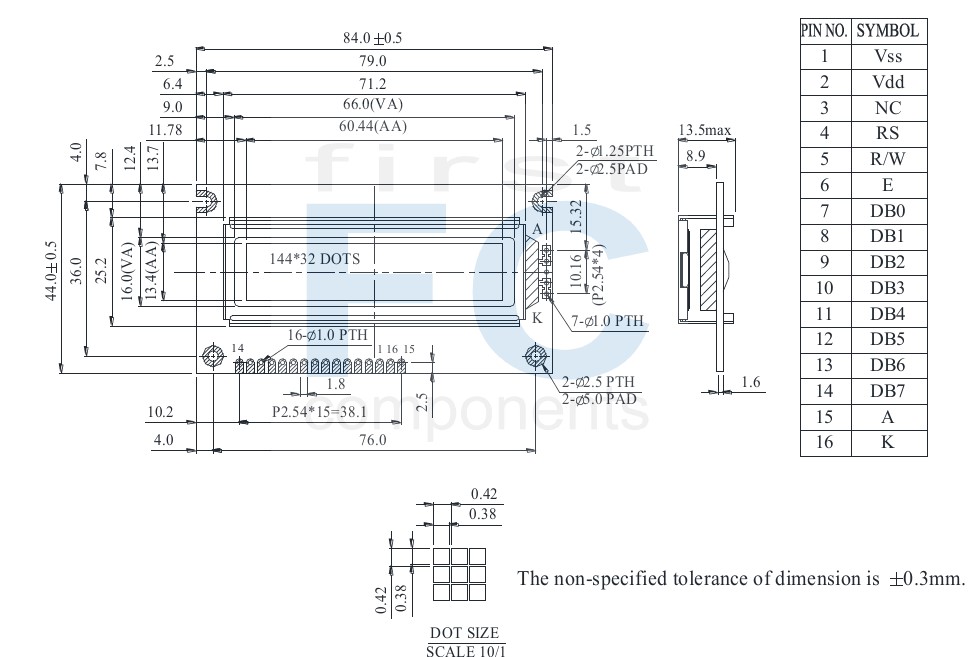

DRAWING

SKU: WG14432C5-TMI-VGB#
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€18.10
€13.30
€12.80
€12.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€18.10 excl tax



RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

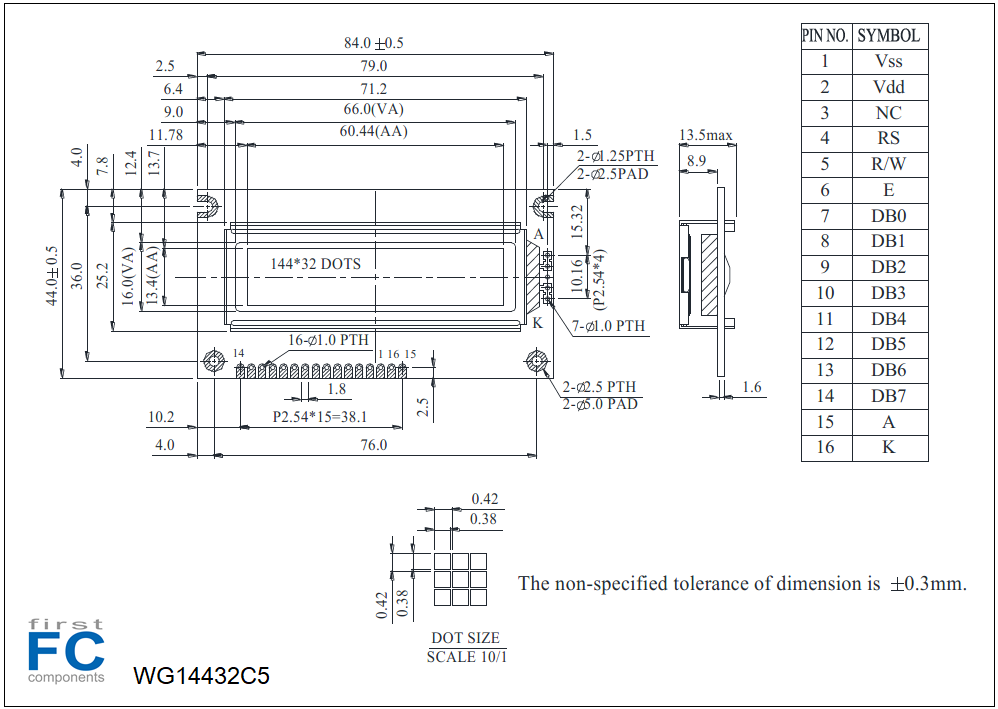

DRAWING

Products specifications
Brand Winstar
Size 2.4"
Resolution 144x32
Active Area (mm) 60.44x13.44
Dot Size 0.38x0.38
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800/SPI
Display IC ST7920
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 144x32
Active Area (mm) 60.44x13.44
Dot Size 0.38x0.38
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800/SPI
Display IC ST7920
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
