WG14432D5-YYH-NKR#

Graphic LCD 2.4'' 144x32, B/L yellow/green, STN yellow/green pos, COB, 5V, Interface 6800, 6 O'clock, VNEG, ST7920-0F (Chinese simplified + Japanese & Korean)

DESCRIPTION



WG14432D is a monochrome 144x32 graphics LCD module which is built in with ST7920 controller IC.  WG14432D is having the same mechanical size as Character WH1602D.  This WG14432D module supports 8080 8-bit parallel and SPI interface; 5V power supply, also internal boost 3.3V optional.  This 144x32 graphic LCD display supports Traditional Chinese and Simplified Chinese Font.  It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

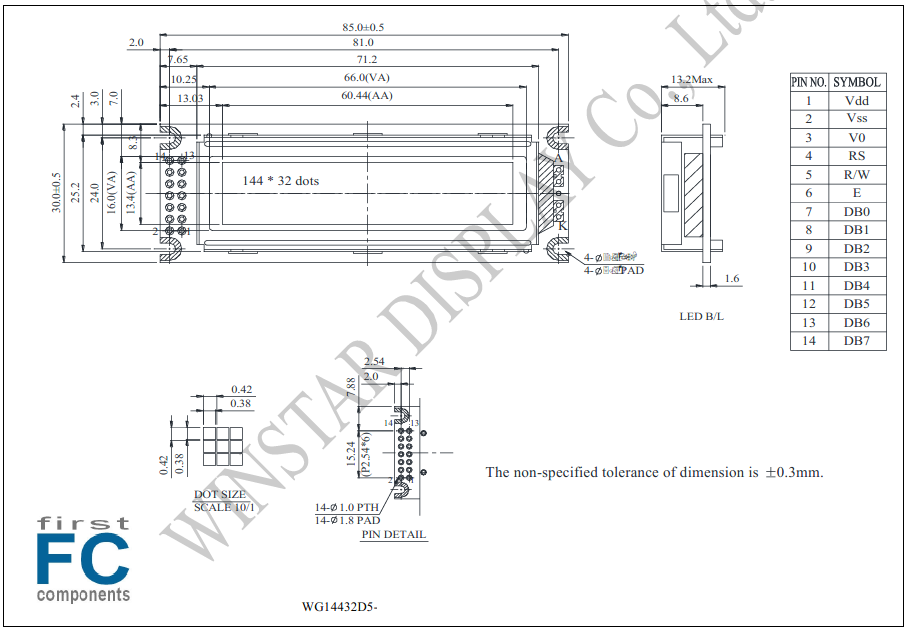

DRAWING

Winstar 144x32 LCD Graphic Display - WG14432D



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply for logic
2 VSS Ground
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.0 × 30.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 81.0 × 25.2 mm
Dot Pitch 0.42 × 0.42 mm
Dot Size 0.38 × 0.38 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.40 V


SKU: WG14432D5-YYH-NKR#
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
Price
€14.10
€10.40
€8.40
€8.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€14.10 excl tax

DESCRIPTION



WG14432D is a monochrome 144x32 graphics LCD module which is built in with ST7920 controller IC.  WG14432D is having the same mechanical size as Character WH1602D.  This WG14432D module supports 8080 8-bit parallel and SPI interface; 5V power supply, also internal boost 3.3V optional.  This 144x32 graphic LCD display supports Traditional Chinese and Simplified Chinese Font.  It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.


DRAWING

Winstar 144x32 LCD Graphic Display - WG14432D



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply for logic
2 VSS Ground
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.0 × 30.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 81.0 × 25.2 mm
Dot Pitch 0.42 × 0.42 mm
Dot Size 0.38 × 0.38 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.40 V


Products specifications
Brand Winstar
Size 2.4"
Resolution 144x32
Active Area (mm) 60.44x13.44
Dot Size 0.38x0.38
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Interface 6800
Built-in Controller ST7920-0F
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 14
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 144x32
Active Area (mm) 60.44x13.44
Dot Size 0.38x0.38
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Interface 6800
Built-in Controller ST7920-0F
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 14
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
