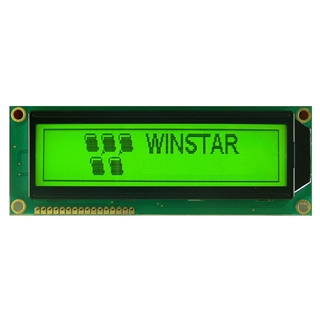

WG16032D5-YYH-N#T

Graphic LCD 3.9'' 160x32, B/L yellow/green,STN yellow/green pos, COB, 5V, Interface 6800, 6 O'clock, No VNEG

DESCRIPTION

WG16032D type is a monochrome graphical LCD display which is built in ST7920 controller.  This WG12232D5 graphical lcd module supports 6800 interface, 4 Line SPI or 3 Line SPI (optional) interface. This LCD display has the same mechanical size as WH1602L with the outline size of 122.0 x 44.0.0 mm and VA size of 99.0 x 24.0 mm and the maximum thickness is 13.60 mm. The WG16032D is built in Traditional Chinese and Simplified Chinese fonts. This type of LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.  The WG16032D3 is 3.3V power supply; WG16032D5 is 5V power supply.

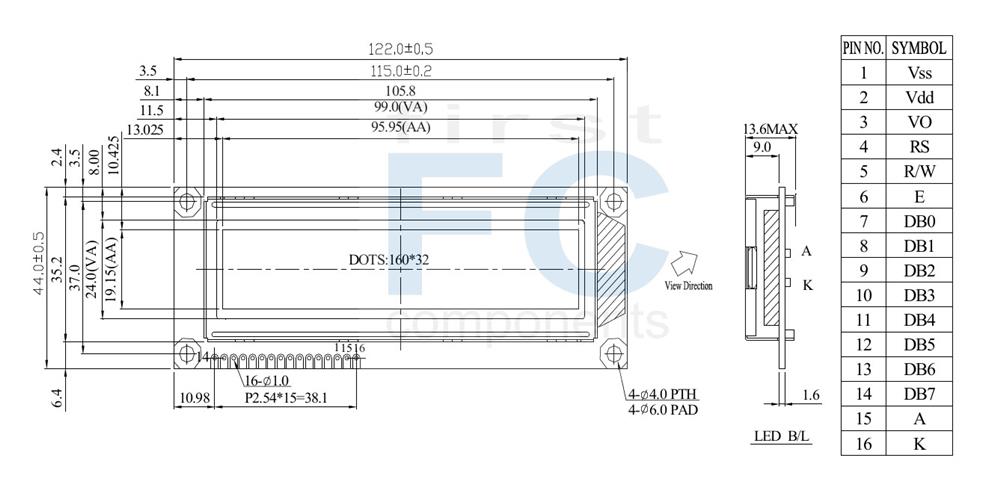

DRAWING

WG16032D5 Graphical LCD Display, Graphical LCD Module - Winstar Graphical LCD

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 NC No connection
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 122.0 × 44.0 mm
Viewing Area 99.0 × 24.0 mm
Mounting Hole 115.0 × 37.0 mm
Dot Pitch 0.6 × 0.6 mm
Dot Size 0.55 × 0.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 4.75 V


SKU: WG16032D5-YYH-N#T
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
Price
€18.20
€13.30
€10.80
€10.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€18.20 excl tax

DESCRIPTION

WG16032D type is a monochrome graphical LCD display which is built in ST7920 controller.  This WG12232D5 graphical lcd module supports 6800 interface, 4 Line SPI or 3 Line SPI (optional) interface. This LCD display has the same mechanical size as WH1602L with the outline size of 122.0 x 44.0.0 mm and VA size of 99.0 x 24.0 mm and the maximum thickness is 13.60 mm. The WG16032D is built in Traditional Chinese and Simplified Chinese fonts. This type of LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.  The WG16032D3 is 3.3V power supply; WG16032D5 is 5V power supply.


DRAWING

WG16032D5 Graphical LCD Display, Graphical LCD Module - Winstar Graphical LCD

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 NC No connection
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 122.0 × 44.0 mm
Viewing Area 99.0 × 24.0 mm
Mounting Hole 115.0 × 37.0 mm
Dot Pitch 0.6 × 0.6 mm
Dot Size 0.55 × 0.55 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss 4.75 V


Products specifications
Brand Winstar
Size 3.9"
Resolution 160x32
Active Area (mm) 95.95x19.15
Dot Size 0.55x0.55
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Interface 6800
Built-in Controller ST7920
Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
