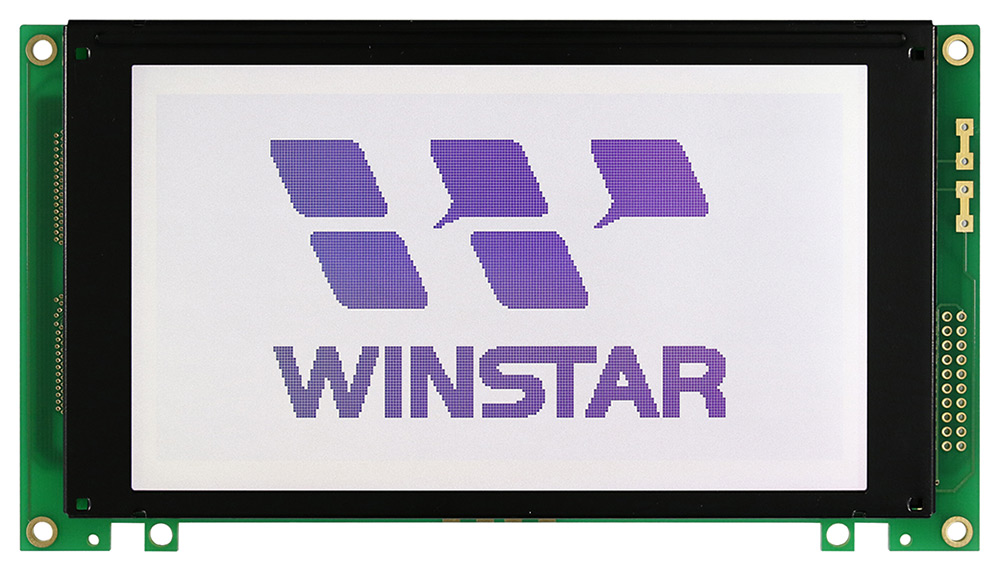

WG240128A-TFH-NZ#

Graphic LCD 5.4'' 240x128, B/L white, FSTN white pos, COB, 5V, Interface 8080, 6 O'clock, No VNEG

DESCRIPTION



WG240128A is a graphic LCD 240x128 module which is having the module dimension 170x103.5 mm and AA size of 119x63.97 mm, diagonal size 5.4 inch. This LCD display 240x128 modules is built in with RA6963 controller and negative voltage output built in on module.  It supports 8080 8-bit parallel interface and 5V power supply and 3.3V optional.  Also, there is touch panel optioanl for WG240128A. Please note the standard WG240128A is 20 pins on board, there is 24-pins option for this type. The graphic LCD is suitable in many applications; they can be used in white goods, POS system, home applications, industrial instrument, automation, audio display systems, and medical devices.


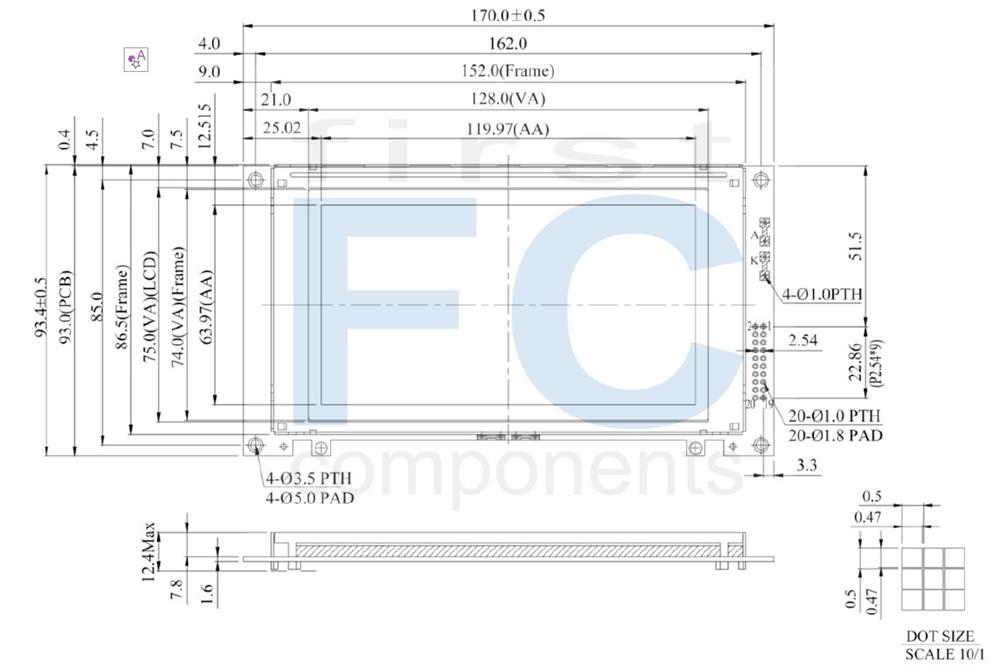

DRAWING

Winstar graphic lcd 240x128, lcd 240x128, lcd 240 128, lcd display 240x128, display 240x128 - WG240128A

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 FGND Frame ground
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 WR Data write. Write data into LCD Controller
6 RD Data read. Read data from LCD Controller
7 CE Enable signal
8 C/D Data/ Instruction select signal
9 VEE Negative Voltage Output
10 RESET Controller reset signal, Active Low
11~18 DB0~DB7 Data bus line
19 FS Selection of font; H : 6 * 8 , L : 8 * 8
20 RV H: Reverse L: Normal



Mechanical Data

ItemStandard ValueUnit
Module Dimension 170.0 × 93.4 mm
Viewing Area 128.0 × 74.0 mm
Mounting Hole 162.0 × 85.0 mm
Dot Pitch 0.50 × 0.50 mm
Dot Size 0.47 × 0.47 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 18.0 V
SKU: WG240128A-TFH-NZ#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€59.60
€52.60
€49.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€59.60 excl tax

DESCRIPTION



WG240128A is a graphic LCD 240x128 module which is having the module dimension 170x103.5 mm and AA size of 119x63.97 mm, diagonal size 5.4 inch. This LCD display 240x128 modules is built in with RA6963 controller and negative voltage output built in on module.  It supports 8080 8-bit parallel interface and 5V power supply and 3.3V optional.  Also, there is touch panel optioanl for WG240128A. Please note the standard WG240128A is 20 pins on board, there is 24-pins option for this type. The graphic LCD is suitable in many applications; they can be used in white goods, POS system, home applications, industrial instrument, automation, audio display systems, and medical devices.


DRAWING

Winstar graphic lcd 240x128, lcd 240x128, lcd 240 128, lcd display 240x128, display 240x128 - WG240128A

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 FGND Frame ground
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 WR Data write. Write data into LCD Controller
6 RD Data read. Read data from LCD Controller
7 CE Enable signal
8 C/D Data/ Instruction select signal
9 VEE Negative Voltage Output
10 RESET Controller reset signal, Active Low
11~18 DB0~DB7 Data bus line
19 FS Selection of font; H : 6 * 8 , L : 8 * 8
20 RV H: Reverse L: Normal



Mechanical Data

ItemStandard ValueUnit
Module Dimension 170.0 × 93.4 mm
Viewing Area 128.0 × 74.0 mm
Mounting Hole 162.0 × 85.0 mm
Dot Pitch 0.50 × 0.50 mm
Dot Size 0.47 × 0.47 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 18.0 V
Products specifications
Brand Winstar
Size 5.4"
Resolution 240x128
Active Area (mm) 119.97x63.97
Dot Size 0.47x0.47
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 8080
Display IC Controller RA6963
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.4"
Resolution 240x128
Active Area (mm) 119.97x63.97
Dot Size 0.47x0.47
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 8080
Display IC Controller RA6963
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
