WH1601L-TMI-JT#

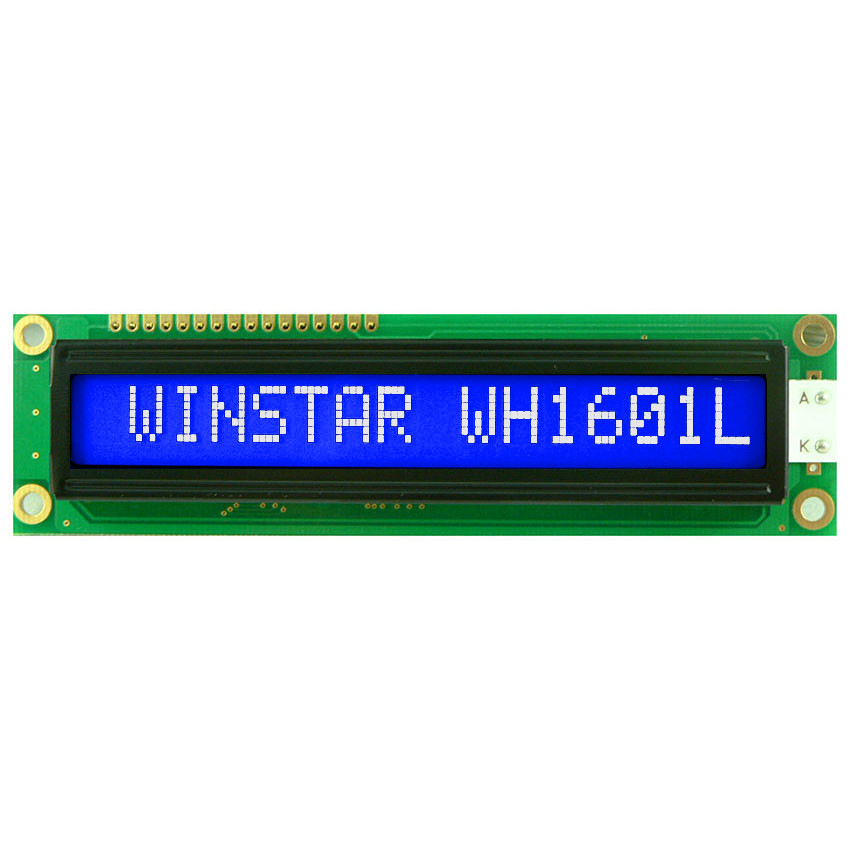

Character LCD 3.8'' 16x1, B/L white, STN blue neg, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

DESCRIPTION



WH1601L is 16 characters with 1 row LCD alphanumeric display module. WH1601L is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel. This display is also available in SPI and I2C interface by using RW1063 controller IC. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, and amber, as well as no backlight option. The LEDs can be driven by PIN1, PIN2, PIN15, PIN16 or A and K.

There are different interface options for WH1601L series, details as below:
►WH1601L : 6800 interface (ST7066 IC)
​►WH1601L3: I2C interface (RW1063 IC)


DRAWING

Winstar LCD Alphanumeric 16x1 - WH1601L

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 122.0 × 33.0 mm
Viewing Area 99.0 × 13.0 mm
Mounting Hole 115.0 × 25.2 mm
Character Size 4.84 × 8.06 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp. Version module @25°C
VDD-VO 4.35 V



Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01           07 40 41           47


SKU: WH1601L-TMI-JT#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€8.00
€5.80
€4.90
€4.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€8.00 excl tax

DESCRIPTION



WH1601L is 16 characters with 1 row LCD alphanumeric display module. WH1601L is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel. This display is also available in SPI and I2C interface by using RW1063 controller IC. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, and amber, as well as no backlight option. The LEDs can be driven by PIN1, PIN2, PIN15, PIN16 or A and K.

There are different interface options for WH1601L series, details as below:
►WH1601L : 6800 interface (ST7066 IC)
​►WH1601L3: I2C interface (RW1063 IC)


DRAWING

Winstar LCD Alphanumeric 16x1 - WH1601L

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 122.0 × 33.0 mm
Viewing Area 99.0 × 13.0 mm
Mounting Hole 115.0 × 25.2 mm
Character Size 4.84 × 8.06 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp. Version module @25°C
VDD-VO 4.35 V



Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01           07 40 41           47


Products specifications
Brand Winstar
Size 3.8"
Resolution 16x1
Active Area (mm) 94.84x9.66
Dot Size 0.92x1.10
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 6800
Built-in Controller ST7066
Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.8"
Resolution 16x1
Active Area (mm) 94.84x9.66
Dot Size 0.92x1.10
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Interface 6800
Built-in Controller ST7066
Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
