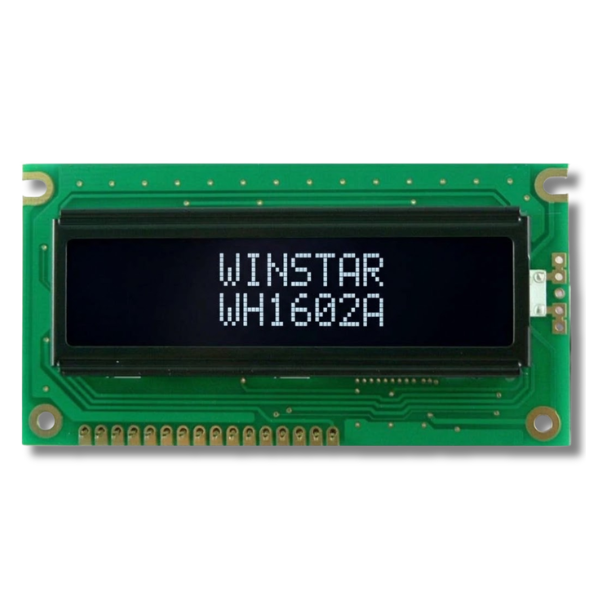

WH1602A-TTI-ET#

Character LCD 2.3" 16x2, B/L white, FSTN black neg, Transmissive, COB, 5V, Interface 6800, Font Eng/Eu, 6 O'clock

DESCRIPTION

WH1602A-TTI-ET# is a 16x2 dot matrix LCD display module with a COB (Chip on Board) structure and a 2.26-inch diagonal display size. It uses a 5x8 dot matrix character format and measures 84.0 x 44.0 x 13.5 mm, with an active area of 56.2 x 11.5 mm.

By default, WH1602A-TTI-ET# is configured with the ST7066 controller IC and a 6800 4/8-bit parallel interface.

The module operates at 5V by default, with a 3V option also available. When operating at 3V, the negative voltage supply is limited to 3V. WH1602A-TTI-ET# is available with or without an LED backlight. Backlight options include yellow-green, blue, green, white, amber, red, and RGB.

For versions using the ST7066 controller IC, several character font ROM options are available for the dot matrix LCD display, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic. The appropriate font ROM version can be selected according to the required character set.

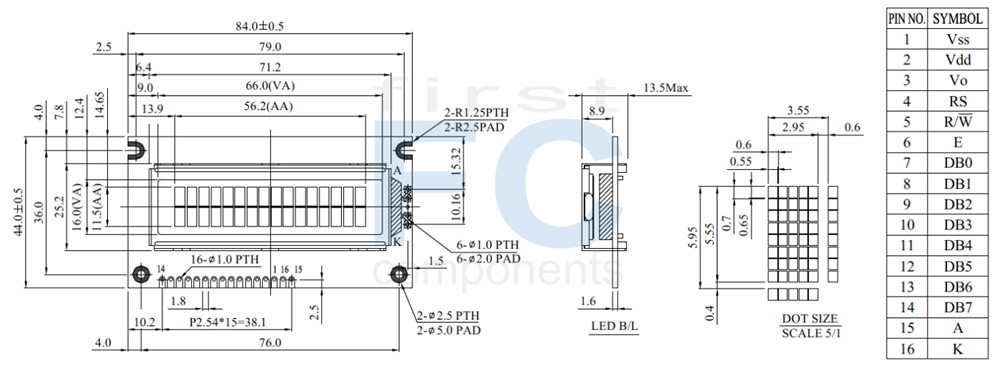

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Number of Characters	16 Characters x 2 Lines	－
Module dimension	84.0 x 44.0 x 13.5 (MAX)	mm
View area	66.0 x 16.0	mm
Active area	56.2 x 11.5	mm
Dot size	0.55 x 0.65	mm
Dot pitch	0.60 x 0.70	mm
Character size	2.95 x 5.55	mm
Character pitch	3.55 x 5.95	mm
Duty	1/16
Backlight Type	LED
IC	ST7066U
Interface	6800

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Input Voltage	VI	VSS	－	VDD	V
Supply Voltage For Logic	VDD-VSS	-0.3	－	7	V
Supply Voltage For LCD	VDD-Vo	-0.3	－	13	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 3.6 3.2	－ 3.7 －	5.5 3.8 －	V V V
Input High Volt.	VIH	－	0.7 VDD	－	VDD	V
Input Low Volt.	VIL	－	Vss	－	0.6	V
Output High Volt.	VOH	－	3.9	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.4	V
Supply Current	IDD	VDD=5.0V	1.0	1.2	1.5	mA

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	VO	(Variable)	Operating voltage for LCD
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read L: Write
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bus line
8	DB1	H/L	Data bus line
9	DB2	H/L	Data bus line
10	DB3	H/L	Data bus line
11	DB4	H/L	Data bus line
12	DB5	H/L	Data bus line
13	DB6	H/L	Data bus line
14	DB7	H/L	Data bus line
15	A	－	Power supply for LED +
16	K	－	Power supply for LED－

SKU: WH1602A-TTI-ET#

Brand: Winstar

Available: Yes
