WH1602B3-YYH-JW#

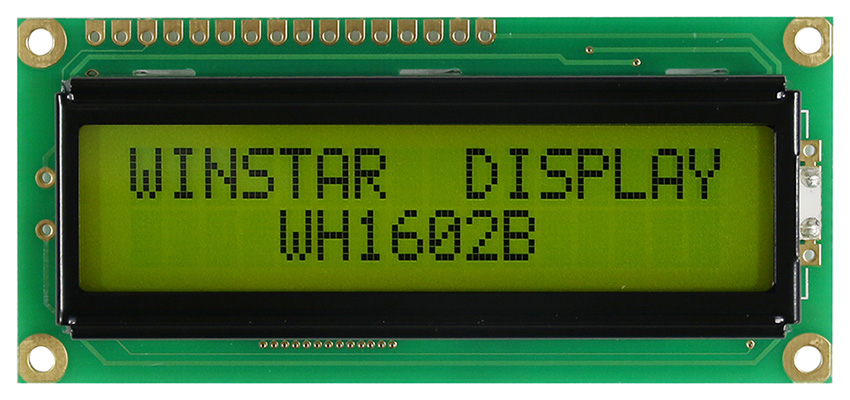

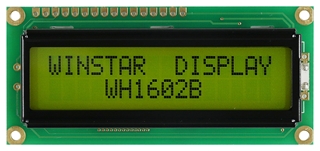

Picture of WH1602B3-YYH-JW# Picture of WH1602B3-YYH-JW#
Character LCD 2.3'' 16x2, B/L yellow/green, STN yellow/green pos, COB, 5V, Interface I2C, Font Eng/Jap, 6 O'clock

DESCRIPTION

Winstar WH1602B is one of the most popular character LCD display module 16x2 types in the market. WH1602B 16x2 LCD display model is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel. The model no. WH1602B1 is having 4 line SPI interface, as to the part no. WH1602B3 is having I2C interface.

Key Features for WH1602B1/B3 --
  • Two line (2 x 16) characters
  • Power supply：5V or 3V
  • Interface:WH1602B1for 4 line SPI, WH1602B3 for I2C
  • Driver: Winstar IC providing high level functions
  • Direct access to low level controller is available for advanced control
  • Space reserved for eight custom characters

There are different interface options for WH1602B series, details as below:
►WH1602B : 6800 interface (ST7066 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
►WH1602B1: SPI interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
►WH1602B2: 6800 interface (ST7066 IC), thickness 10.0 mm
►WH1602B3: I2C interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm

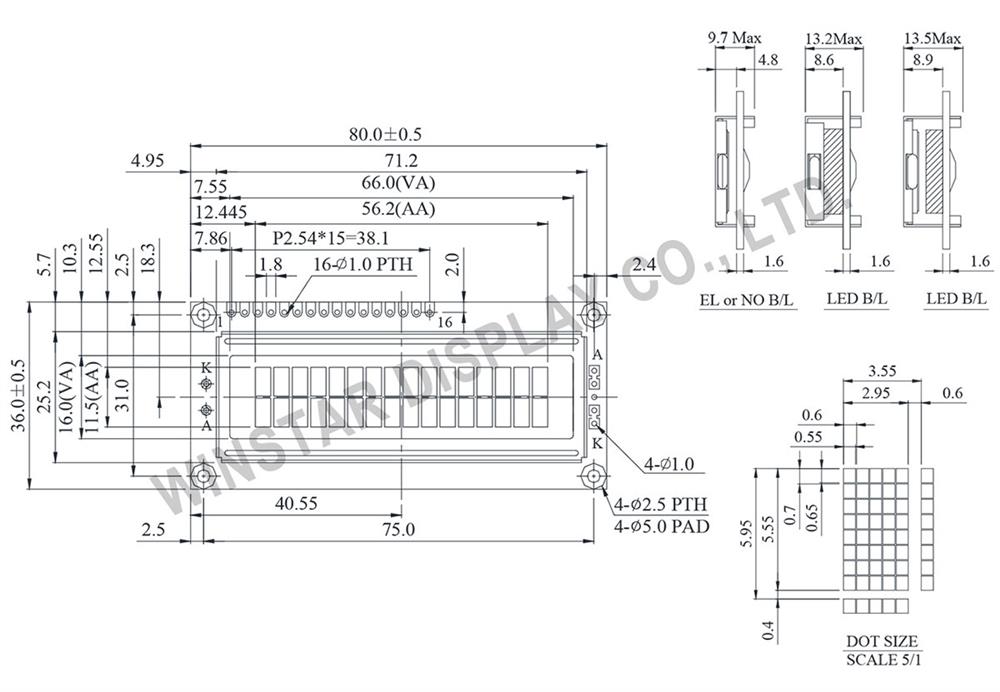

DRAWING

Display 16x2, LCD Display 16x2, LCD Module 16x2, LCD Display Module 16x2, Winstar Display LCD WH1602B

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -

Mechanical Data

ItemStandard ValueUnit
Module Dimension 80.0 × 36.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 75.0 × 31.0 mm
Character Size 2.95 × 5.55 mm

Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 3.70 V

Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01 　 　 　 　 　 　 　 　 　 　 　 　 　 0F
DD RAM Address 40 41 　 　 　 　 　 　 　 　 　 　 　 　 　 4F


SKU: WH1602B3-YYH-JW#
Brand: Winstar
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€5.70
€4.20
€4.00
€3.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€5.70 excl tax

DESCRIPTION

Winstar WH1602B is one of the most popular character LCD display module 16x2 types in the market. WH1602B 16x2 LCD display model is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel. The model no. WH1602B1 is having 4 line SPI interface, as to the part no. WH1602B3 is having I2C interface.

Key Features for WH1602B1/B3 --
  • Two line (2 x 16) characters
  • Power supply：5V or 3V
  • Interface:WH1602B1for 4 line SPI, WH1602B3 for I2C
  • Driver: Winstar IC providing high level functions
  • Direct access to low level controller is available for advanced control
  • Space reserved for eight custom characters

There are different interface options for WH1602B series, details as below:
►WH1602B : 6800 interface (ST7066 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
►WH1602B1: SPI interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
►WH1602B2: 6800 interface (ST7066 IC), thickness 10.0 mm
►WH1602B3: I2C interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm


DRAWING

Display 16x2, LCD Display 16x2, LCD Module 16x2, LCD Display Module 16x2, Winstar Display LCD WH1602B

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -

Mechanical Data

ItemStandard ValueUnit
Module Dimension 80.0 × 36.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 75.0 × 31.0 mm
Character Size 2.95 × 5.55 mm

Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 3.70 V

Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01 　 　 　 　 　 　 　 　 　 　 　 　 　 0F
DD RAM Address 40 41 　 　 　 　 　 　 　 　 　 　 　 　 　 4F


Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface I2C
Display IC Controller RW1063
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.3"
Resolution 16x2
Active Area (mm) 56.20x11.50
Dot Size 0.55x0.65
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface I2C
Display IC Controller RW1063
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
