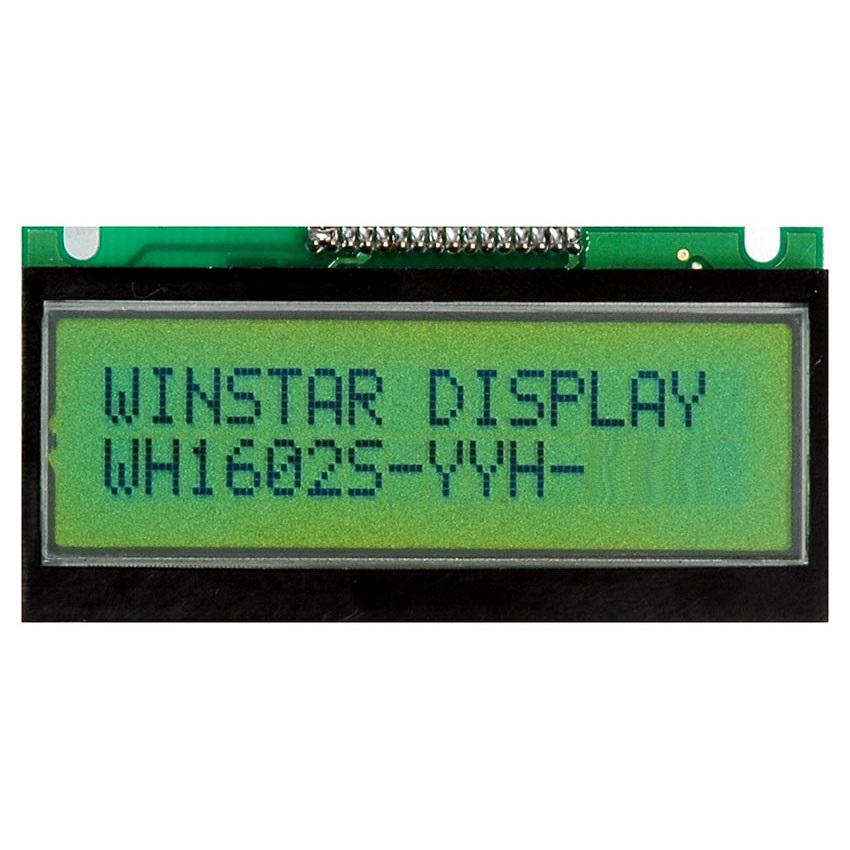

WH1602S-YYH-JT#

Character LCD 1.9'' 16x2, B/L yellow/green, STN yellow/green pos, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

DESCRIPTION



WH1602S is a 16x2 Character dot Matrix LCD Display Module which is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel, 5V power supply.  WH1602S is available in several different backlight colors including blue, green, white, yellow-green, amber, red or white LEDs.   There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

There are different interface options for WH1602S series, details as below:
►WH1602S : 6800 interface (ST7066 IC)
►WH1602S1 : SPI interface (RW1063 IC)
►WH1602S2 : I2C interface (RW1063 IC)

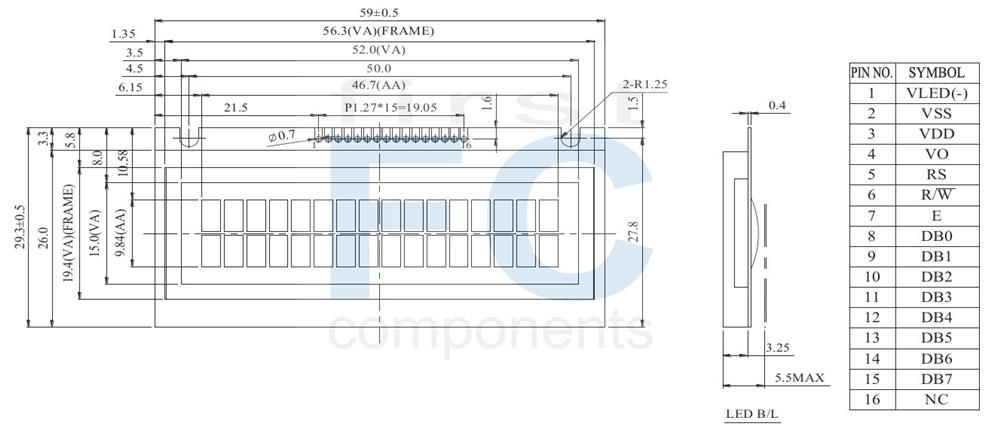

DRAWING

Winstar WH1602S 16x2 LCD Display Character

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VLED Power supply for B/L -
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 RS Data/ Instruction select signal
6 R/W Read/Write select signal
7 E Enable signal
8~15 DB0~DB7 Data bus line
16 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 59.0 × 29.3 mm
Viewing Area 52.0 × 15.0 mm
Mounting Hole 50.0 × 27.8 mm
Character Size 2.45 × 4.67 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 3.70 V



Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01 2                       0E 0F
DD RAM Address 40 41 42                       4E 4F


SKU: WH1602S-YYH-JT#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
50+
Price
€8.00
€5.90
€4.80
€4.60
€4.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€8.00 excl tax

DESCRIPTION



WH1602S is a 16x2 Character dot Matrix LCD Display Module which is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel, 5V power supply.  WH1602S is available in several different backlight colors including blue, green, white, yellow-green, amber, red or white LEDs.   There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

There are different interface options for WH1602S series, details as below:
►WH1602S : 6800 interface (ST7066 IC)
►WH1602S1 : SPI interface (RW1063 IC)
►WH1602S2 : I2C interface (RW1063 IC)


DRAWING

Winstar WH1602S 16x2 LCD Display Character

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VLED Power supply for B/L -
2 VSS Ground
3 VDD Power supply for logic
4 VO Contrast Adjustment
5 RS Data/ Instruction select signal
6 R/W Read/Write select signal
7 E Enable signal
8~15 DB0~DB7 Data bus line
16 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 59.0 × 29.3 mm
Viewing Area 52.0 × 15.0 mm
Mounting Hole 50.0 × 27.8 mm
Character Size 2.45 × 4.67 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 3.70 V



Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01 2                       0E 0F
DD RAM Address 40 41 42                       4E 4F


Products specifications
Brand Winstar
Size 1.9"
Resolution 16x2
Active Area (mm) 46.70x9.84
Dot Size 0.45x0.54
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Interface 6800
Built-in Controller ST7066
Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 1.9"
Resolution 16x2
Active Area (mm) 46.70x9.84
Dot Size 0.45x0.54
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Interface 6800
Built-in Controller ST7066
Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
