WH2004A-YYH-ETV#

Picture of WH2004A-YYH-ETV# Picture of WH2004A-YYH-ETV# Picture of WH2004A-YYH-ETV#

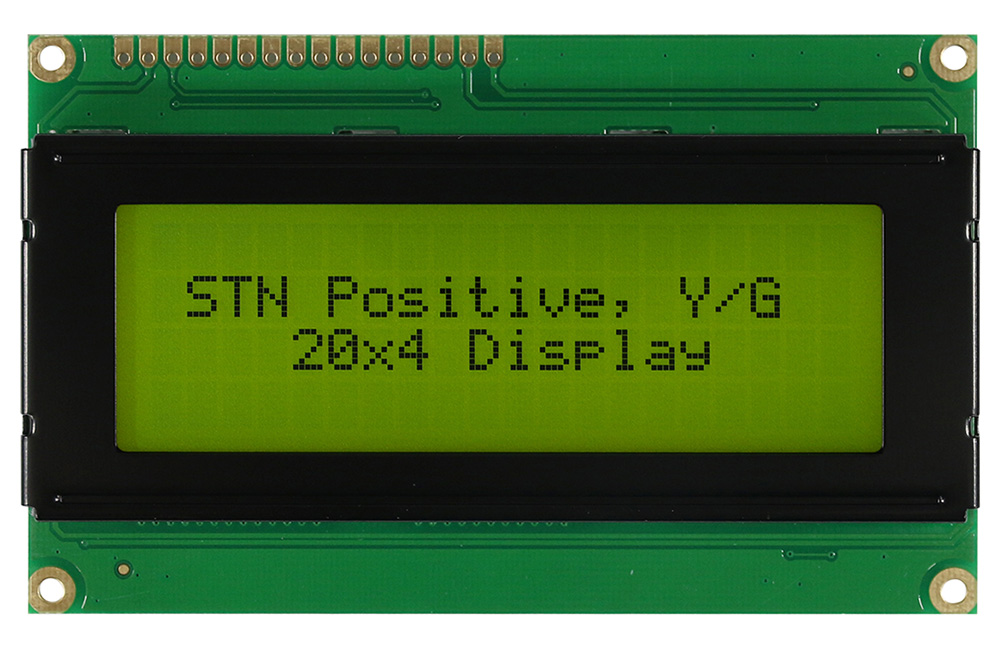

Character LCD 2.9" 20x4, B/L yellow/green, STN yellow/green pos, Transflective, COB, 3V, Interface 6800, Font Eng/Eu, 6 O'clock

DESCRIPTION

Winstar WH2004A is a Character LCD 20x4 display which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel.  These 20x4 LCD modules are also available in SPI and I2C interface by using RW1063 controller IC. WH2004A is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white, and RGB LEDs.   There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH2004A series, details as below:
►WH2004A : 6800 interface (ST7066 IC)
►WH2004A1 : SPI interface (RW1063 IC)
►WH2004A2 : I2C interface (RW1063 IC)

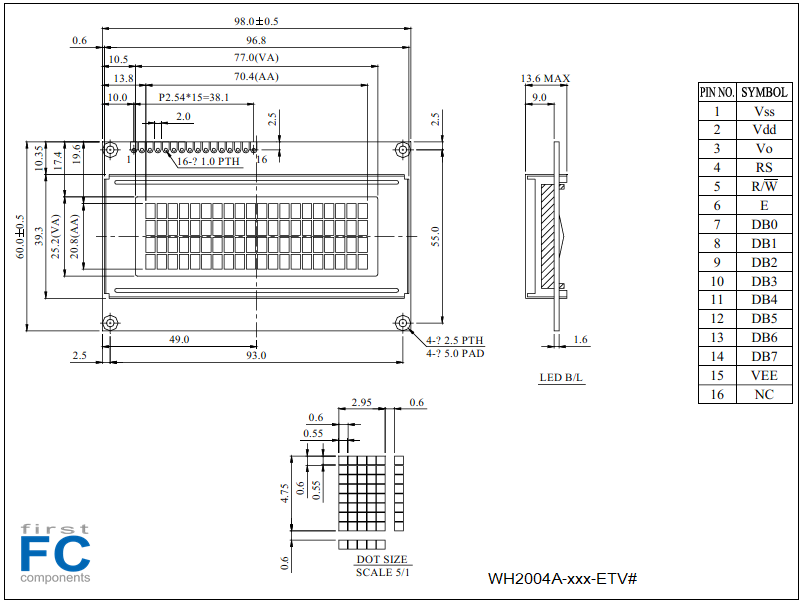

DRAWING



SPECIFICATIONS

Mechanical Data

ItemStandard ValueUnit
Module Dimension 98.0 × 60.0 mm
Viewing Area 77.0 × 25.2 mm
Mounting Hole 93.0 × 55.0 mm
Character Size 2.95 × 4.75 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3 V



Display Character Address Code

Display Position12345678910111213------20
DD RAM Address 00 01 02 　 　 　 　 　 　 　 　 　 　 　 　 13
DD RAM Address 40 41 42 　 　 　 　 　 　 　 　 　 　 　 　 53
DD RAM Address 14 15 16 　 　 　 　 　 　 　 　 　 　 　 　 27
DD RAM Address 54 35 56 　 　 　 　 　 　 　 　 　 　 　 　 67


SKU: WH2004A-YYH-ETV#
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€16.30
€12.00
€11.60
€11.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€16.30 excl tax

DESCRIPTION

Winstar WH2004A is a Character LCD 20x4 display which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel.  These 20x4 LCD modules are also available in SPI and I2C interface by using RW1063 controller IC. WH2004A is available in several different backlight colors including blue, green, white, yellow-green, amber, red, white, and RGB LEDs.   There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH2004A series, details as below:
►WH2004A : 6800 interface (ST7066 IC)
►WH2004A1 : SPI interface (RW1063 IC)
►WH2004A2 : I2C interface (RW1063 IC)



DRAWING



SPECIFICATIONS

Mechanical Data

ItemStandard ValueUnit
Module Dimension 98.0 × 60.0 mm
Viewing Area 77.0 × 25.2 mm
Mounting Hole 93.0 × 55.0 mm
Character Size 2.95 × 4.75 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3 V



Display Character Address Code

Display Position12345678910111213------20
DD RAM Address 00 01 02 　 　 　 　 　 　 　 　 　 　 　 　 13
DD RAM Address 40 41 42 　 　 　 　 　 　 　 　 　 　 　 　 53
DD RAM Address 14 15 16 　 　 　 　 　 　 　 　 　 　 　 　 27
DD RAM Address 54 35 56 　 　 　 　 　 　 　 　 　 　 　 　 67


Products specifications
Brand Winstar
Size 2.9"
Resolution 20x4
Active Area (mm) 70.40x20.80
Dot Size 0.55x0.55
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 3V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.9"
Resolution 20x4
Active Area (mm) 70.40x20.80
Dot Size 0.55x0.55
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 3V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Related products
Picture of SW30RS23200AC00N0101

SW30RS23200AC00N0101

Adapter Board RS232 19200 BAUD int. character LCM (14-16 pins)
From €15.50 excl tax
Picture of SW30RS23200AC00N0103

SW30RS23200AC00N0103

Adapter Board RS232 9600 BAUD int. character LCM (14-16 pins)
From €15.50 excl tax
Picture of SW3000USB000A00N0100

SW3000USB000A00N0100

Adapter Board USB 9600 BAUD int. character LCM (14-16 pins)
From €22.70 excl tax
Picture of GPHA101-1602A001R1BA-30

GPHA101-1602A001R1BA-30

Pin Header - Straight Contact, Single Row, 16 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 6mm)
From €0.39 excl tax
Picture of CSHA101-1602A001R1AB-30

CSHA101-1602A001R1AB-30

Female Header - Straight Contact, Single Row, 16 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 4-6mm)
From €0.52 excl tax
Picture of GPHB101-1602A044A1BA-30

GPHB101-1602A044A1BA-30

Pin Header - R/A Contact, Single Row, 16 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 3,20mm)
From €0.50 excl tax
