WH2004G1-TGH-EW#

Character LCD 2.89" 20x4, B/L white, STN gray pos, Transflective, COB, 5V, Interface SPI, Font Eng/Jeu, 6 O'clock

MOQ

After sample PO, MP MOQ 1K



DESCRIPTION



This 20x4 Character LCD Display is built-in with RW1063 controller IC which are 6800, 4 line SPI or I2C interface options. The WH2004G 20x4 LCD Display have the same AA size and pin assignment as existing WH2004A and WH2004B character LCD modules but with smaller outline and VA size.
Below are the available series model numbers --

  • WH2004G - 6800 interface
  • WH2004G1 - 4 line SPI interface
  • WH2004G2 - I2C interface

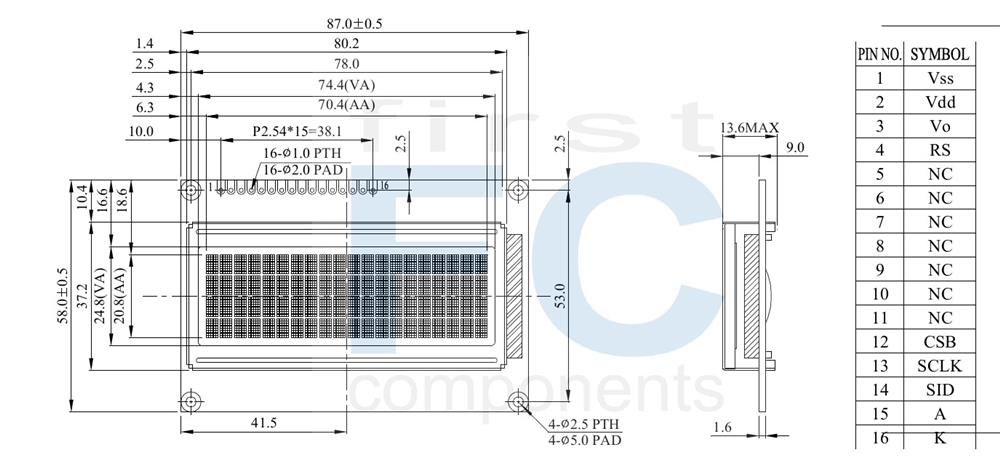

DRAWING




SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 87.0 × 58.0 mm
Viewing Area 74.4 × 24.8 mm
Mounting Hole 82.0 × 53.0 mm
Character Size 2.95 × 4.75 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 4.20 V



Display Character Address Code

Display Position1234567891011121314151617181920
DD RAM Address 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12 13
DD RAM Address 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4E 4F 50 51 52 53

DD RAM Address 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27
DD RAM Address 54 55 56 57 58 59 5A 5B 5C 5D 5E 5F 60 61 62 63 64 65 66 67


SKU: WH2004G1-TGH-EW#
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€20.00
€14.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€20.00 excl tax

MOQ

After sample PO, MP MOQ 1K



DESCRIPTION



This 20x4 Character LCD Display is built-in with RW1063 controller IC which are 6800, 4 line SPI or I2C interface options. The WH2004G 20x4 LCD Display have the same AA size and pin assignment as existing WH2004A and WH2004B character LCD modules but with smaller outline and VA size.
Below are the available series model numbers --

  • WH2004G - 6800 interface
  • WH2004G1 - 4 line SPI interface
  • WH2004G2 - I2C interface



DRAWING




SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 87.0 × 58.0 mm
Viewing Area 74.4 × 24.8 mm
Mounting Hole 82.0 × 53.0 mm
Character Size 2.95 × 4.75 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 4.20 V



Display Character Address Code

Display Position1234567891011121314151617181920
DD RAM Address 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F 10 11 12 13
DD RAM Address 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4E 4F 50 51 52 53

DD RAM Address 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 20 21 22 23 24 25 26 27
DD RAM Address 54 55 56 57 58 59 5A 5B 5C 5D 5E 5F 60 61 62 63 64 65 66 67


Products specifications
Brand Winstar
Size 2.89"
Resolution 20x4
Active Area (mm) 70.40x24.80
Dot Size 0.55x0.55
B/L color, LCD type B/L white, STN gray pos
Power supply 5V
Display Interface SPI
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.89"
Resolution 20x4
Active Area (mm) 70.40x24.80
Dot Size 0.55x0.55
B/L color, LCD type B/L white, STN gray pos
Power supply 5V
Display Interface SPI
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
