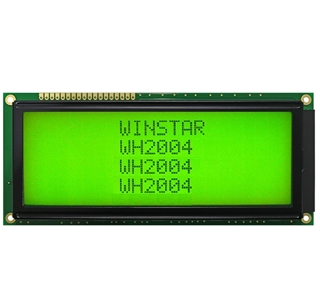

WH2004L-YYH-JT#

Character LCD 4.9'' 20x4, B/L yellow/green, STN yellow/green pos, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

DESCRIPTION



WH2004L is 24 characters by 2 lines STN LCD display module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel.  These 20x4 LCD STN display modules are also available in SPI and I2C interface by using RW1063 controller IC. This type of STN LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.  WH2004L is available in several different backlight colors including blue, green, yellow-green, amber, red and white LEDs. The LEDs can be driven by pin 1, pin 2, or pin 15 pin 16 or A/K.  There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH2004L series, details as below:
►WH2004L : 6800 interface (ST7066 IC)
►WH2004L1 : SPI interface (RW1063 IC)
►WH2004L2 : I2C interface (RW1063 IC)



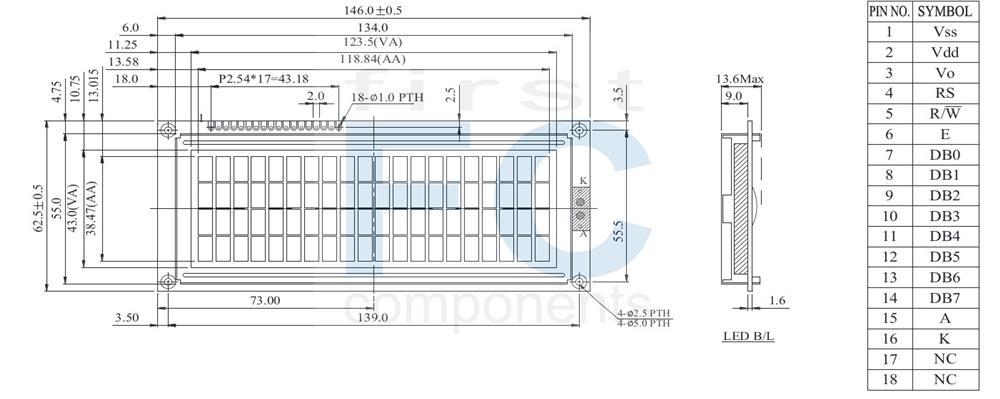

DRAWING

STN LCD Module, STN Display, STN LCD Display, LCD STN 20x4 - WH2004L

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -
17 NC No connection
18 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 146.0 × 62.5 mm
Viewing Area 123.5 × 43.0 mm
Mounting Hole 139.0 × 55.5 mm
Character Size 4.84 × 9.22 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.20 V



Display Character Address Code

Display Position12345678910111213------20
DD RAM Address 00 01                           13
DD RAM Address 40 41                           53
DD RAM Address 14 15                           27
DD RAM Address 54 55                           67


SKU: WH2004L-YYH-JT#
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€26.00
€20.80
€16.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€26.00 excl tax

DESCRIPTION



WH2004L is 24 characters by 2 lines STN LCD display module which is built in with ST7066 controller IC; its default interface is 6800 4/8-bit parallel.  These 20x4 LCD STN display modules are also available in SPI and I2C interface by using RW1063 controller IC. This type of STN LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.  WH2004L is available in several different backlight colors including blue, green, yellow-green, amber, red and white LEDs. The LEDs can be driven by pin 1, pin 2, or pin 15 pin 16 or A/K.  There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options.

There are different interface options for WH2004L series, details as below:
►WH2004L : 6800 interface (ST7066 IC)
►WH2004L1 : SPI interface (RW1063 IC)
►WH2004L2 : I2C interface (RW1063 IC)



DRAWING

STN LCD Module, STN Display, STN LCD Display, LCD STN 20x4 - WH2004L

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line
15 A Power supply for B/L +
16 K Power supply for B/L -
17 NC No connection
18 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 146.0 × 62.5 mm
Viewing Area 123.5 × 43.0 mm
Mounting Hole 139.0 × 55.5 mm
Character Size 4.84 × 9.22 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 3/5 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.20 V



Display Character Address Code

Display Position12345678910111213------20
DD RAM Address 00 01                           13
DD RAM Address 40 41                           53
DD RAM Address 14 15                           27
DD RAM Address 54 55                           67


Products specifications
Brand Winstar
Size 4.9"
Resolution 20x4
Active Area (mm) 118.84x38.47
Dot Size 0.92x1.10
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 18
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.9"
Resolution 20x4
Active Area (mm) 118.84x38.47
Dot Size 0.92x1.10
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC Controller ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 18
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
