TFT 3.5'' 320x240, CAN Bus interface with CUSTOMIZABLE CAN ID, Capacitive touch panel (GG)

DESCRIPTION

NEW 2^nd generation 3.5” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages.

DC 5V working voltage, low power consumption for USB to drive.
Self-testing after booting function.
CAN bus communication interface.
Supports CUSTOM CAN ID protocol, default baud rate at 250KB.
Built in flash memory, store the font and Object Dictionary Data.
Support capacitive touch panel(CTP).
Smart Display scenario is slave device display and action from Master Device instruction.
Embedded buzzer controlled by Master Device.
Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
Design the UI without writing a line of code by winstar GUI builder! (►Link to GUI Builder Introduction)

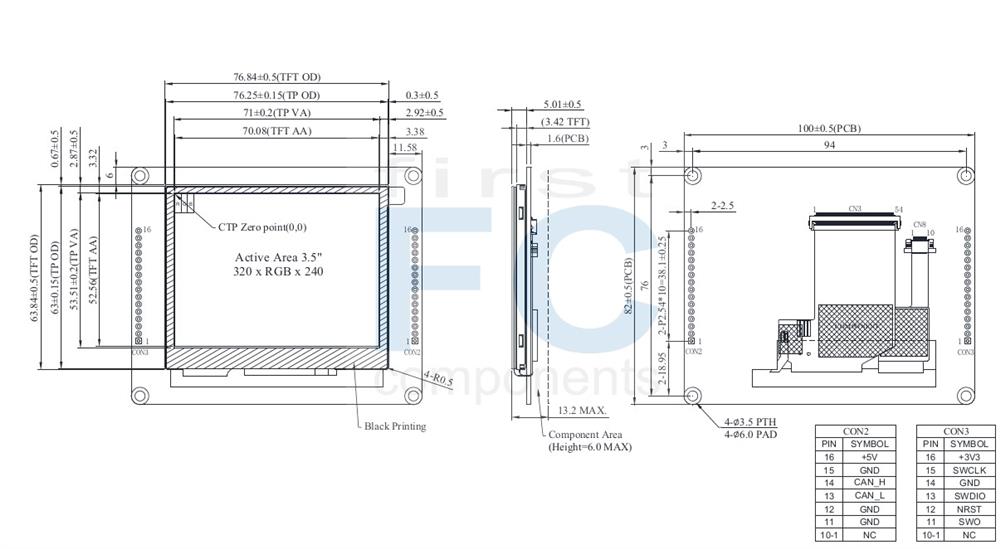

DRAWING

SPECIFICATIONS

Product information

Mechanical Data:

Item	Standard Value	Unit
LCD panel	76.84(W)63.84(H)4.53	mm
PCB	100(W)82(H)1.6	mm
Housing outline	NA	mm

General information:

Item	Standard Value	Unit
Operating voltage	5	Vdc
Communication Interface	CAN bus differential ± 3.3	Vpp
MCU	STM32F750	N/A
Flash Memory	16	MB
SDRAM Frequency	108	MHz
LCD display size	3.5	inch
Dot Matrix	320× 3(RGB) × 240	dot
Module dimension	76.84(W) x 63.84(H) x 4.53(D)	mm
Active area	70.08(W) x 52.56(H)	mm
Dot pitch	0.073(W) x 0.219(H)	mm
LCD type	TFT, Normally Black, Transmissive
View Direction	80/80/80/80
Aspect Ratio	4:3
With /Without TP	With CTP
Surface	Glare

Interface

CON2 definition:

Pin	Symbol	Function	Remark
16	+5V	Power supply 5V input	Input
15	GND	Power supply GND input	Input
14	CAN_High	CAN bus D+	I/O
13	CAN_Low	CAN bus D-	I/O
12	GND	Power supply GND input	Input
11	GND	Power supply GND input	Input
10-1	NC	Connection	-

CON3 definition:

Pin	Symbol	Function	Remark
16	VMCU	3.3V power for JTAG interface	Output
15	JTAG_SWCLK	CLK pin for JTAG interface	Input
14	GND	GND for JTAG interface	Output
13	JTAG_SWDI	Data pin for JTAG interface	I/O
12	NRST	Reset pin for JTAG interface	Input
11	JTAG_SWDO	Data pin for JTAG interface	I/O
11-1	NC	Connection	-

Absolute Maximum Ratings:

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	-	+70	°C
Storage Temperature	TST	-30	-	+80	°C

Electrical Characteristics:

Item	Symbol	Min	Typ	Max	Unit	Remark
Supply Voltage	VCC	4.5	5-	5.5	V
Supply Current	ICC	-	250		mA

BOM:

Item	Description	Remark
LCM	WF35-320240XD#0P3-FC
PCBA	SV100035000XA00N0100

Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

Schermata iniziale

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection

Example Screen Layout

Example Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC

Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01

Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01
