General Specifications

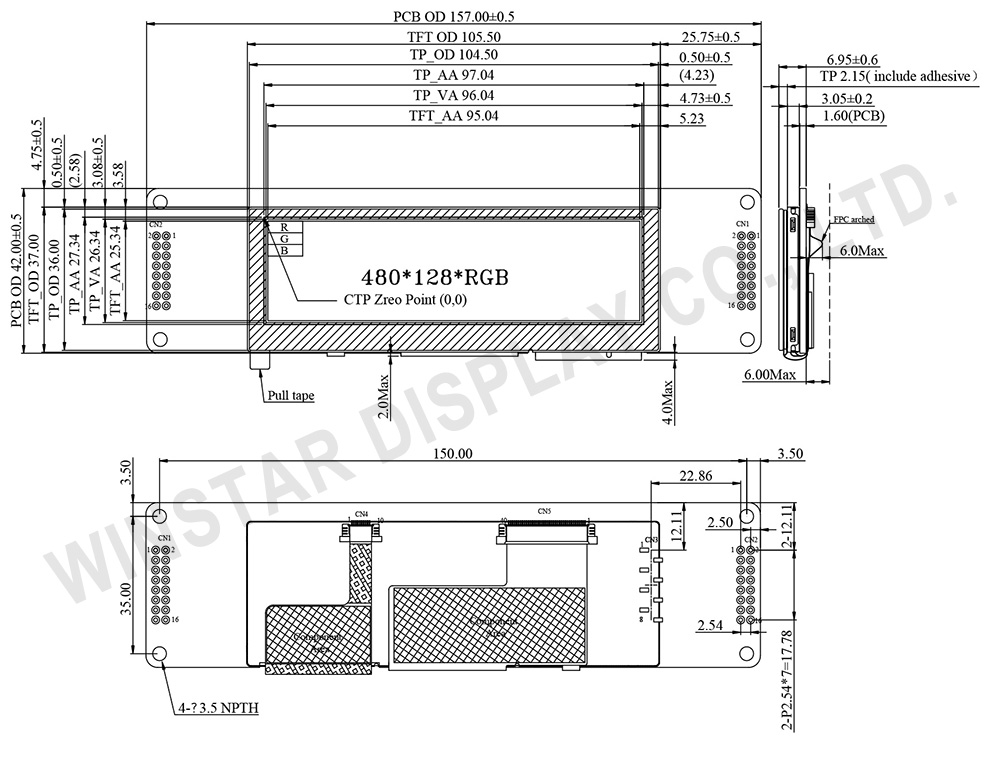

Mechanical Data
| Item | Standard Value | Unit |
|---|
| LCD panel |
105.5(W) x 37.0(H) x 5.13 |
mm |
| PCB |
157(W) x 42(H) x 1.6 |
mm |
| Housing outline |
NA |
mm |
General information
| Item | Standard Value | Unit |
|---|
| Operating voltage |
5 |
Vdc |
| Communication Interface |
CAN bus differential ± 3.3 |
Vpp |
| Size |
3.9 |
inch |
| Dot Matrix |
480 x 128 x RGB (TFT) |
dots |
| Module dimension |
105.5(W) x 37.0(H) x 5.13 |
mm |
| Active area |
95.04 x 25.34 |
mm |
| Dot pitch |
0.066(W)x 0.198(H) |
mm |
| Backlight Type |
TFT, Normally White, Transmissive |
| Viewing Angle |
6 o'clock |
| Aspect Ratio |
Bar Type |
| With /Without TP |
With Projected Capacitive Touch Panel (PCAP) |
| Surface |
Glare |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|
| Operating Temperature |
TOP |
-10 |
－ |
+70 |
℃ |
| Storage Temperature |
TST |
-10 |
－ |
+70 |
℃ |
Electrical Characteristics
Operating conditions:
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Supply Voltage For Analog |
VCI |
－ |
4.4 |
5 |
5.6 |
V |
| Interface Operation Voltage |
IOVCC |
－ |
3.234 |
3.30 |
3.367 |
V |
| Supply LCM current |
ICI(mA) |
- |
- |
350 |
- |
mA |
Interface Pin Function
CN1 definition
| Pin | Symbol | Function | Remark |
|---|
| 1 |
+5V |
Power supply 5V input |
Input |
| 2 |
DGND |
GND for USART interface |
Output |
| 3 |
GND |
Power supply GND input |
Input |
| 4 |
D- |
Differential signal D- |
I/O |
| 5 |
CAN High |
CAN bus D+ |
I/O |
| 6 |
D+ |
Differential signal D+ |
I/O |
| 7 |
CAN Low |
CAN bus D- |
I/O |
| 8 |
+5V |
5V output for USART interface |
Output |
| 9 |
DGND |
GND for USART interface |
Output |
| 10 |
NC |
|
|
| 11 |
DGND |
GND for USART interface |
Output |
| 12 |
NC |
|
|
| 13 |
NC |
|
|
| 14 |
NC |
|
|
| 15 |
NC |
|
|
| 16 |
NC |
|
|
CN2 definition
| Pin | Symbol | Function | Remark |
|---|
| 1 |
NC |
|
|
| 2 |
VMCU |
Power supply 3V3 input |
Input |
| 3 |
NC |
|
|
| 4 |
TAG_SWCLK |
JTAG Serial Wire Clock interface |
Clock |
| 5 |
NC |
|
|
| 6 |
GND |
GND for USART interface |
I/O |
| 7 |
NC |
|
|
| 8 |
TAG_SWDIO |
JTAG Serial Wire debug Data Input/Output interface |
I/O |
| 9 |
NC |
|
|
| 10 |
NRST |
Reset input
Connect this pin to the (active low) reset input of the target MCU. |
|
| 11 |
NC |
|
|
| 12 |
TAG_SWO |
JTAG Serial Wire trace Output - Optional interface |
Output |
| 13 |
DGND |
GND for USART interface |
I/O |
| 14 |
DGND |
GND for USART interface |
I/O |
| 15 |
+5V |
Power supply 5V input |
Input |
| 16 |
NC |
|
|
CN3 definition
| Pin | Symbol | Function | Remark |
|---|
| 1 |
NC |
|
|
| 2 |
NC |
|
|
| 3 |
NC |
|
|
| 4 |
NC |
|
|
| 5 |
NC |
|
|
| 6 |
NC |
|
|
| 7 |
NC |
|
|
| 8 |
NC |
|
|
Display Usage
Functional description
Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode. The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.
Splash Screen

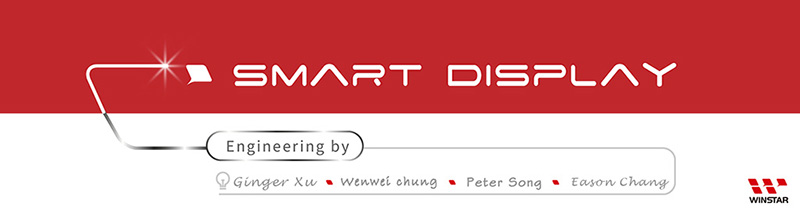

The default splash image is shown below.
This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.
Acquisition of Displayed Data
The Smart Display can acquire the data that it displays either using the CANopen SDO protocol, or using the CANopen PDO protocol. On Pre-operational mode, customers can set the coordinates of objects through SDO; On operational mode, customers can send data of objects through PDO.

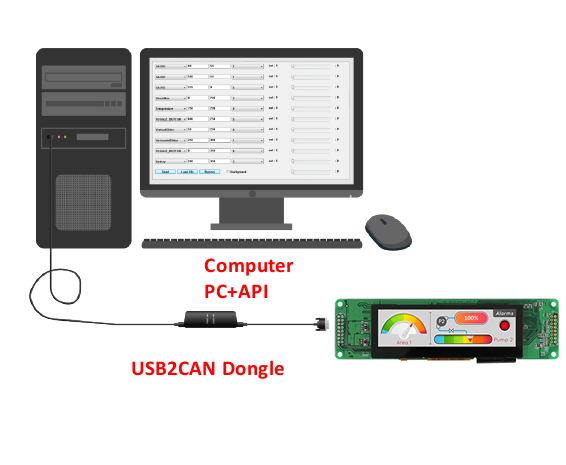

Configuring the Display
Winstar Smart Display CAN series offers an out-of-the-box CANopen development experience that will lower customers' development costs and speed time-to-market expectations. The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas. The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days. The Smart Display is defined as a slave device, which is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects.
Example Screen Layout (Industry application)
Example Layout
The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.
