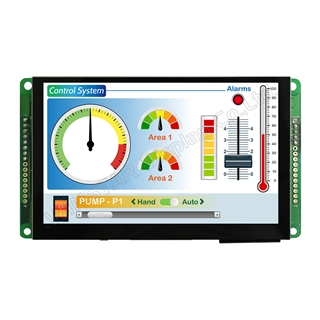

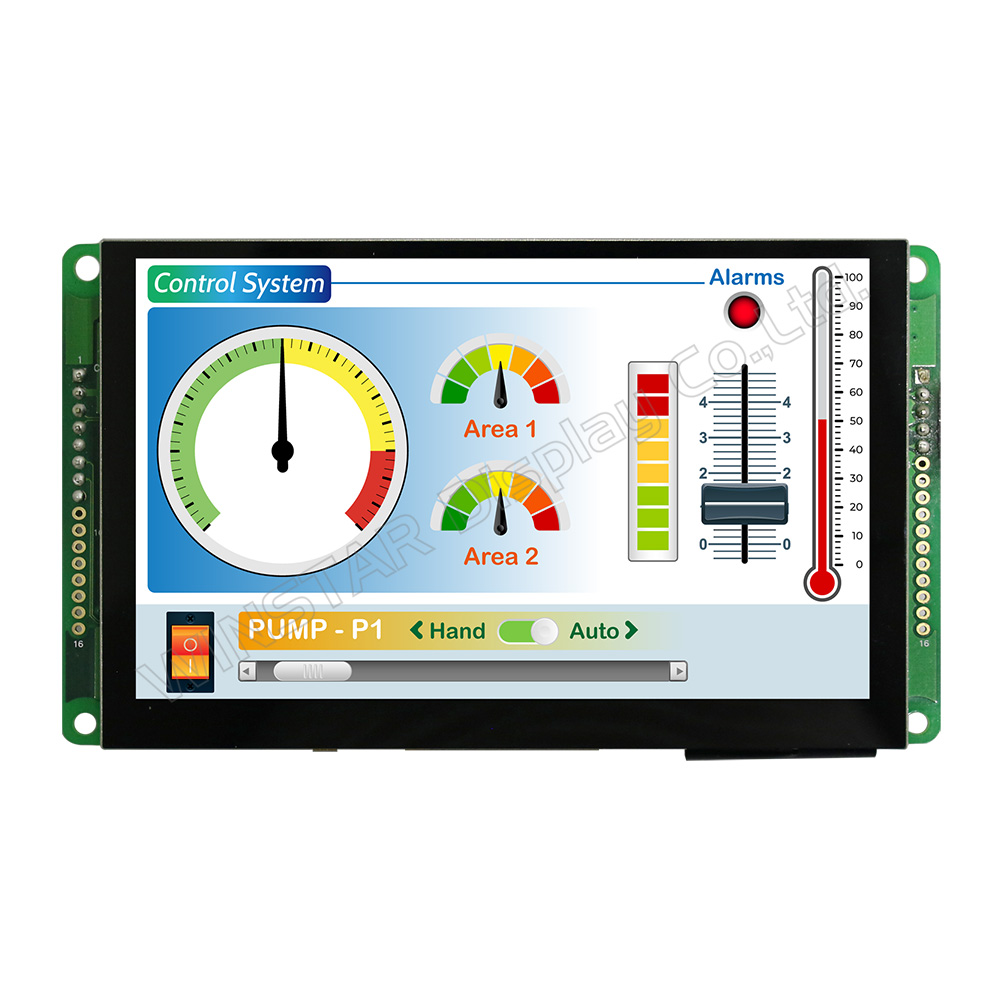

WL0F00050000FGAAASA00-FC

TFT 5'' 800x480, CAN Bus communication interface differential ± 3.3, Wide View Angle (IPS), Capacitive touch panel (GG)

DESCRIPTION



WL0F00050000FGAAASA00-FC is a 5” Smart Display_CAN series TFT which is defined as a slave device, that is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects. WL0F00050000FGAAASA00-FC is integrated with an standard TFT module WF50-800480FD#0P3-FC and a 4-layers FR4 PCBA with built-in firmware. This 5” Smart Display _CAN series TFT is an easy-to-use product which allows you to develop projects rapidly in cost-effective way. Below are the features of WL0F00050000FGAAASA00-FC. Our Smart Display can be used on multiple host (HOST) platforms. such as Computer (with USB2CAN Dongle) , MCU, Raspberry Pi (with PiCAN2).

We have three demo scenario as below.
WL0F00050000FGAAASB00-FC (Industrial Application)
WL0F00050000FGAAASC00-FC (Vehicle Application)

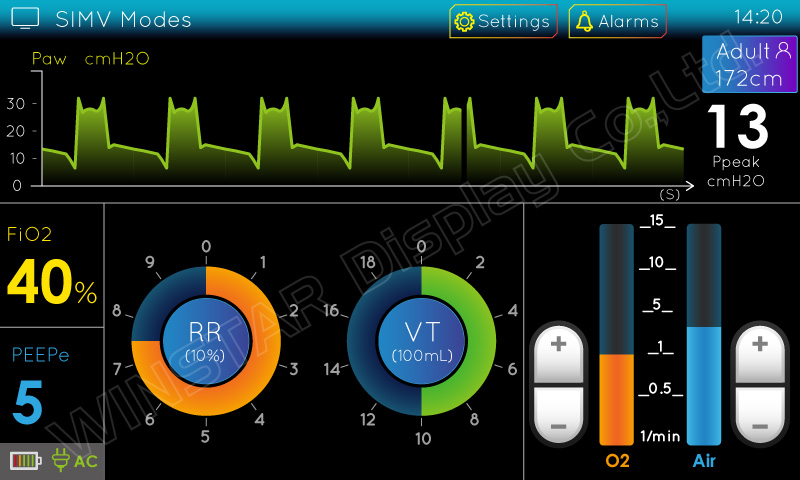

WL0F00050000FGAAASD00-FC (Medical Application)

5 Inch Smart Display Feature:

  • DC 5V working voltage, low power consumption for USB to drive.
  • Power-On Self-Test & Splash screen.
  • CAN bus Interface.
  • Built in flash memory, store the font and Object Dictionary Data.
  • Supports PCAP touch screen.
  • CanTFT Smart Display is defined as a slave device, which is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects.
  • Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  • Built-in Buzzer is controlled from master device.



DRAWING

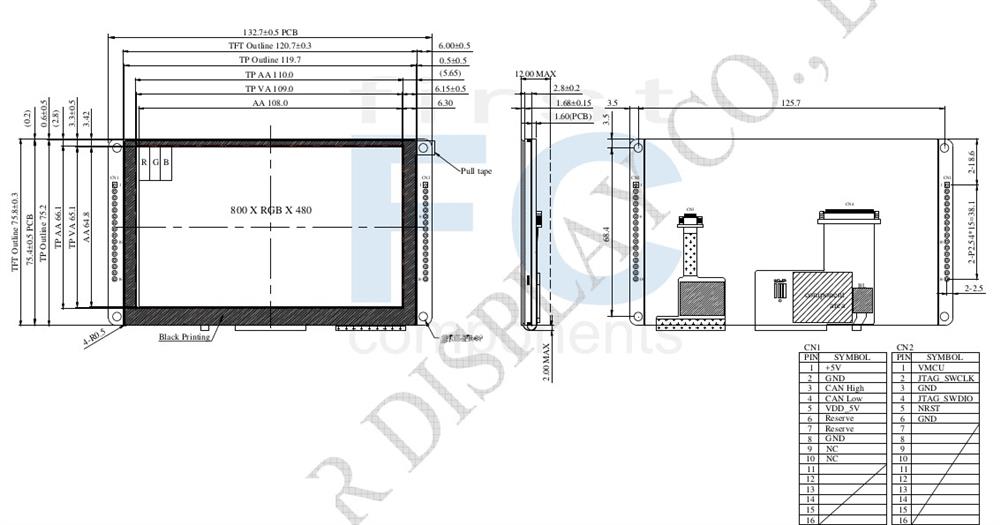

5 inch CAN Bus TFT Display with Projected Capacitive Touch - WL0F00050000FGAAASA00

Bom

ItemDescription
LCM WF50FTYAGDNG0#-
PCBA 4 layer FR4, 1.6mm



SPECIFICATIONS

General Specifications



Mechanical Data

ItemStandard ValueUnit
LCD panel 120.7(W) × 75.8(H) × 4.475 mm
PCB 132.7(W) × 75.8(H) × 1.6 mm
Housing outline NA mm


General information

ItemStandard ValueUnit
Operating voltage 5 Vdc
Communication Interface  CAN bus differential ± 3.3 Vpp
LCD display size 5 inch
Dot Matrix 800 × 3(RGB) × 480 dot
Module dimension 120.7(W) × 75.8(H) × 4.475 mm
Active area 108(W) × 64.8 (H) mm
Dot pitch 0.135(W) × 0.135(H) mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 16:9
With /Without TP With Projected Capacitive Touch Panel (PCAP)
Surface Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80
Note: Device is subject to be damaged permanently if stresses beyond those absolute maximum ratings listed above 1. Temp. ≦60℃, 90% RH MAX. Temp.>60℃, Absolute humidity shall be less than 90% RH at 60℃

Electrical Characteristics

Operating conditions
ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Analog VCI 4.75 5 5.5 V
Interface Operation Voltage IOVCC 3.234 3.30 3.367 V
Supply LCM current ICI(mA) 320 350 - mA

LED driving conditions
ParameterSymbolMin.Typ.Max.UnitRemark
LED current   - 1.0 1.5 mA
Power Consumption   - - 27 mW
LED voltage VBL+ - - 18 V Note 1
LED Life Time   - 50,000 - Hr Note 2,3,4

Note 1 : There are 1 Groups LED

Note 2 : Ta = 25 ℃
Note 3 : Brightness to be decreased to 50% of the initial value
Note 4 : The single LED lamp case

Interface Pin Function

CN1 definition

PinSymbolFunctionRemark
1 +5V Power supply 5V input Input
2 GND Power supply GND input Input
3 CAN_High CAN bus D+ I/O
4 CAN_Low CAN bus D- I/O
5   VDD_5V 5V output for USART interface Output
6 USART1_RX USART RX interface Reserve
7 USART1_TX USART TX interface Reserve
8 GND GND for USART interface Output
9-16 NC Connection -



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

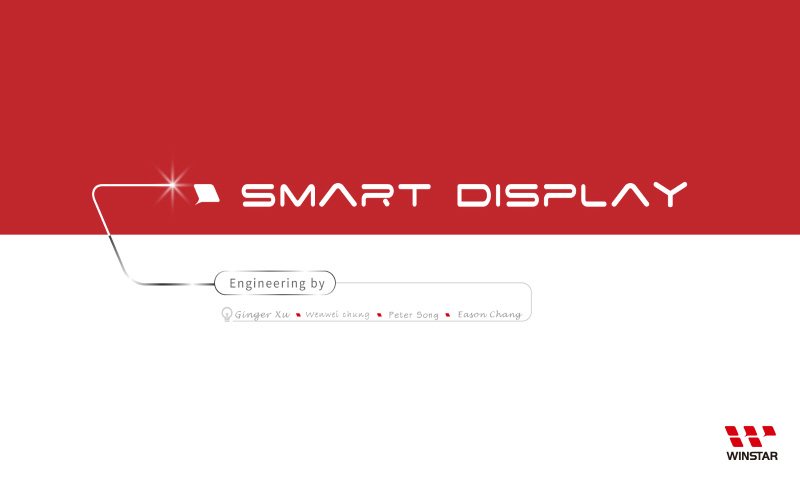

The default splash image is shown below.



This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Acquisition of Displayed Data

The Smart Display can acquire the data that it displays either using the CANopen SDO protocol, or using the CANopen PDO protocol.

On Pre-operational mode, customers can set the coordinates of objects through SDO; On operational mode, customers can send data of objects through PDO.

Configuring the Display

Winstar Smart Display CAN series offers an out-of-the-box CANopen development experience that will lower customers' development costs and speed time-to-market expectations.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days.

The Smart Display is defined as a slave device, which is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects.



Example Screen Layout (Vehicle automotive)

Example Layout

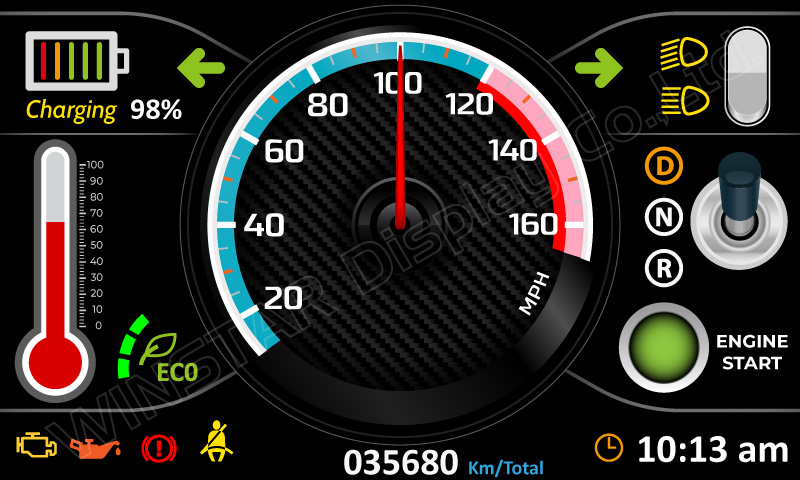

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Example Screen Layout (Vehicle automotive)



Example Screen Layout (Industry application)

Example Layout

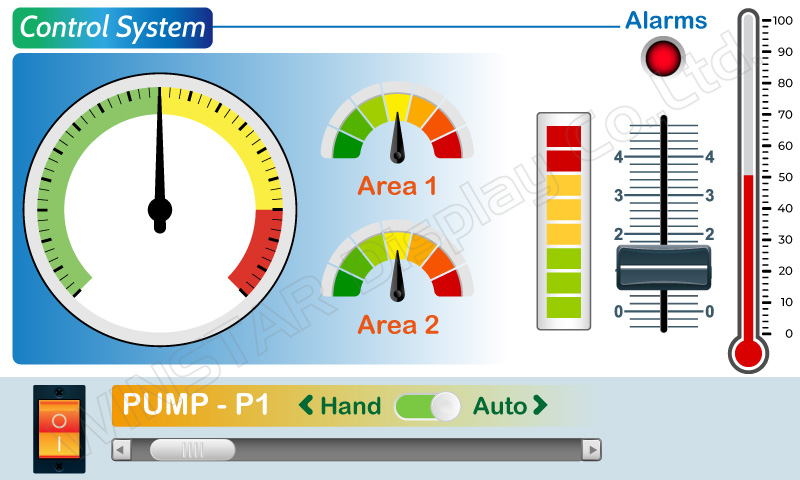

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Example Screen Layout (Industry application)
