WL0F00101000JGDAASA00-FC

TFT 10.1'' 1024x600, RS485 ModBus communication interface, 400cd/m², Wide View Angle (IPS), Capacitive touch panel (GG), Free Template

DESCRIPTION

    Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

WL0F00101000JGDAASA00 is a 10.1-inch Smart Display_RS485 series TFT, defined as a slave device controlled by a master device via RS485 command to render display content on the display screen and return touch event data with Modbus protocol data. WL0F00101000JGDAASA00 is featured with Winstar wide temperature TFT WF101JTYAHLNB0 and a 4-layers FR4 PCBA built-in firmware. This 10.1" RS485 series TFT is an easy-to-use product that allows you to develop projects rapidly in a cost-effective way. Winstar RS485 Smart Display support single-master (HOST) platforms, such as a computer (with USB2RS485 Dongle), MCU, and Raspberry Pi. Below are the features of this 10.1-inch RS485 Smart Display:

  • +12V power supply input, the power consumption is around 6W.
  • Self testing after booting function.
  • RS485 communication interface.
  • Built in flash memory, store the font and Object Dictionary Data.
  • TFT WF101JTYAHLNB0 with PCAP touch panel.
  • Smart Display scenario is slave device display and action from Master Device instruction.
  • Embedded buzzer controlled by Master Device.
  • Demo set HOST can be used on multiple platforms, such as Computer (with USB2RS485 Dongle), MCU.
  • Design the UI without writing a line of code by winstar GUI builder!



Winstar developed a Windows app. for Smart Display GUI design. Winstar GUIbuilder software allows customers to simulate their GUI design in advance by using the drag-and-drop Widget preview function; customers can also create their ideal GUI. Winstar GUI builder software supports Windows systems only; it can fulfill What You See Is What You Get (WYSIWYG). The new version of built-in software is a 3-in-1 APP; we combined three application templates for optional, including industrial, vehicle and medical applications. Please press the preferred application and hold for 3 seconds at the first time power on. Customers can change to another template by using GUIbuilder to change the application.

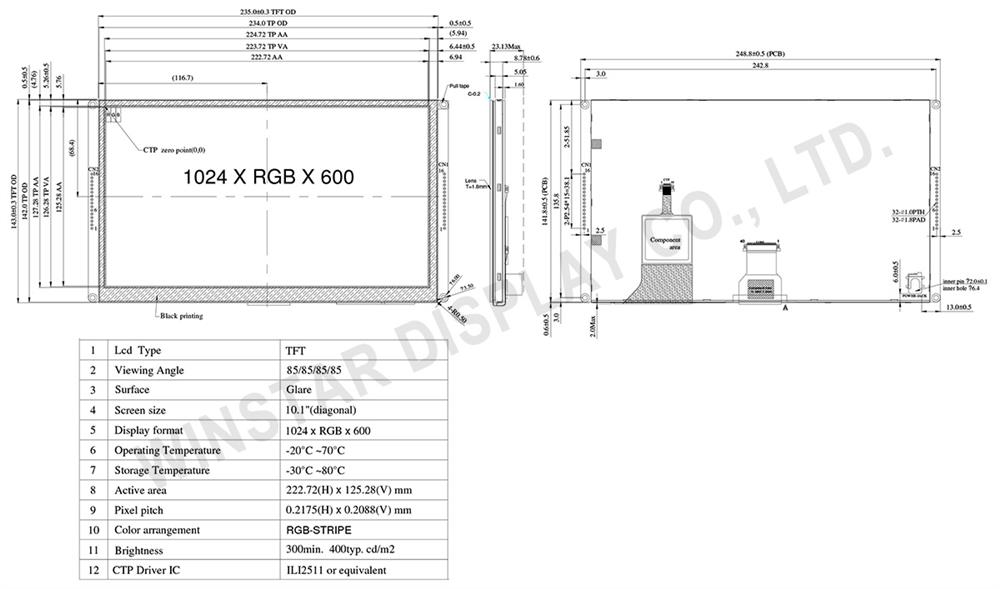

DRAWING



SPECIFICATIONS

General Specifications

Mechanical Data

ItemStandard ValueUnit
LCD panel 235(W) x 143(H) x 8.78(D) mm
PCB 248.8(W) x 143(H) x 1.6(D) mm
Housing outline NA mm


General information

ItemStandard ValueUnit
Operating voltage 12 Vdc
Communication Interface RS485 differential ± 3.3 Vpp
MCU STM32F746 N/A
Flash Memory 16 MB
SDRAM Frequency 166 MHz
LCD display size 10.1 inch
Dot Matrix 1024 x RGB x 600(TFT) dots
Module dimension 235(W) x 143(H) x 8.78(D) mm
Active area 222.72 (H) x 125.28(V) mm
Dot pitch 0.2175(W) x 0.2088(H) mm
LCD type LED, Normally White
View Direction 85/85/85/85
Aspect Ratio 16:9
Touch Panel With Projected Capacitive Touch Panel (PCAP)
Surface Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80


Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC 11.4 12 12.6 V
Supply LCM current I(mA) - - 435 - mA


BOM

ItemDescription
LCM WF101-1024600JL#0P8-FC
PCBA SV100101000JA00N0100




Interface Pin Function

CON1 definition

PinSymbolFunctionRemark
1 12V Power supply12V input Power
2 GND Power supply GND input Power
3 _ _ _
4 _ _ _
5   GND Power supply GND input Power
6 GND Power supply GND input Power
7 _ _ _
8 _ _ _
9 VDD_3.9V 3.9V Power
10 _ _ _
11 _ _ _
12 GND GND GND
13 VDD_3.9V 3.9V Power
14 RS485_B RS485 DATA- I/O
15 RS485_A RS485 DATA+ I/O
16 GND GND GND


CON2 definition

PinSymbolFunctionRemark
1 VDD3V 3.3V power for JTAG interface Output
2 JTAG_SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 JTAG_SWDIO Data pin for JTAG interface I/O
5 NRST Reset pin for JTAG interface Input
6 GND GND Output
7
8
9
10
11
12
13
14
15
16

Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register.

Splash Screen

The default splash image is shown below.

Splash Screen - Winstar Can Display, Smart Display - WL0F00101000JGAAASA00

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.


Winstar's Smart Display Default Selection


Acquisition of Displayed Data

Smart Display uses the Modbus protocol to get and send the data.

On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

Configuring the Display

Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days.

The Smart Display is defined as a slave device, which is controlled by master device via RS485 bus command to render display content on the display screen and return touch event data with protocol objects.

Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.

Example Screen Layout (Industry application) - WL0F00101000JGDAASA00

Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Example Screen Layout (Vehicle automotive) - WL0F00101000JGDAASA00


Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Example Screen Layout (Medical application) - WL0F00101000JGDAASA00
