DESCRIPTION

Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

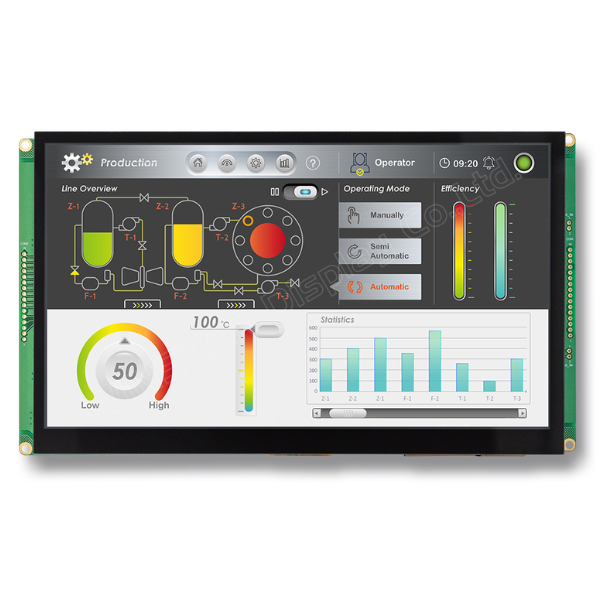

WL0F00101000JGDAESA02-FC is a 10.1-inch Smart Display_RS485 series TFT module, designed as a slave device that communicates with a master device through RS485 commands to display content and return touch event data via Modbus protocol. It features WINSTAR’s TFT standard IPS wide-temperature display, WF101-1024600JL#0P8-FC, and a 4-layer FR4 PCBA with built-in firmware. This 10.1" RS485 series TFT provides an efficient solution for accelerating product development, leveraging the WINSTAR GUI Builder to minimize coding time and reduce overall development costs.

Key Features:

• +12V power input with an 8V to 28V dynamic range and a power consumption of approximately 6W.
• Self-testing functionality upon boot-up.
• RS485 communication interface with Modbus protocol support.
• 32MB built-in flash memory for storing fonts and Object Dictionary Data.
• Supports capacitive touch panel (CTP).
• Embedded buzzer, controllable by the master device.
• GPIO PIN support for extended functionality.
• Design the UI without writing a line of code by WINSTARGUI builder! (►Link to GUI Builder Introduction)
• Built on the STM32F series MCU, supporting STMicroelectronics' software development tools.
• Extended memory management, including:
  • Up to 255 objects per page (vs. 64 in the 16MB version).
  • Up to 1000 total objects (vs. 500 in the 16MB version).
  • Support for up to 64 pages (vs. 30 in the 16MB version).
  • Dynamic memory allocation for efficient flash storage management.



DRAWING

SPECIFICATIONS

General Specifications

Item	Standard Value	Unit
Operating voltage	8V~28V dynamic	Vdc
Communication Interface	RS485	-
MCU	STM32F746	N/A
Flash Memory	32	MB
LCD display size	10.1	inch
Dot Matrix	1024 x RGB x 600(TFT)	dots
Module dimension	248.8(W) x 143(H) x 23.2(D)	mm
Active area	222.72 (H) x 125.28(V)	mm
Pixel pitch	0.2175(W) x 0.2088(H)	mm
Brightness	Min: 300; Typ: 400	cd/m2
LCD type	TFT, Normally Black, Transmissive
View Direction	85/85/85/85
Aspect Ratio	16:9
Touch Panel	With Projected Capacitive Touch Panel (PCAP)
Surface	Glare



Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃



Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VCC	－	8	12	28	V
Supply LCM current	I(mA)	－	－	550	－	mA



BOM

Item	Description
LCM	WF101-1024600JL#0P8-FC
PCBA	SV10010R100JC00N0108



Interface Pin Function

CON1 definition

Pin	Symbol	Function	Remark
1	VIN	Power supply 8V to 28V input	Input
2	GND	Power supply GND input	Input
3	NC	-	-
4	NC	-	-
5	GND	Power supply GND input	GND
6	GND	Power supply GND input	GND
7	Reserve	USB_D-	Reserve
8	Reserve	USB_D+	Reserve
9	NC	-	-
10	Reserve	USART RX interface(Reserve)	Reserve
11	Reserve	USART TX interface(Reserve)	Reserve
12	GND	Power supply GND input	GND
13	VIN	Power supply 8V to 28V input	Input
14	485B	RS485 D-	I/O
15	485A	RS485 D+	I/O
16	GND	Power supply GND input	Input

CON2 definition

Pin	Symbol	Function	Remark
1	+3V3	3.3V power for JTAG interface	Output
2	SWCLK	CLK pin for JTAG interface	Input
3	GND	GND for JTAG interface	Output
4	SWDIO	Data pin for JTAG interface	I/O
5	NRST	Reset pin for JTAG interface	Input
6	GND	GND	Output
7	IO_8	IO_8 for system Resume from suspend (Reserve)	WKup,ADC,Timer,Event,I/O
8	REST	Reset (active Low) (Reserve)	I
9	IO_0	ADC,DAC,Timer,Event,I/O	PA5
10	IO_1	ADC,Timer,Event,I/O	PA6
11	IO_2	ADC,Timer,Event,I/O	PA7
12	IO_3	RST,Timer,Event,I/O	PA8
13	IO_4	RST,Timer,Event,I/O	PC13
14	IO_5	ADC,Timer,Event,I/O	PB11
15	IO_6	RST,Timer,Event,I/O	PA15
16	IO_7	RST,ADC,Event,I/O	PD11



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode

The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register.

Splash Screen

The default splash image is shown below.

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Acquisition of Displayed Data

Smart Display uses the Modbus protocol to get and send the data.

On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

Configuring the Display

Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days.

The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.

Example Screen Layout (Industry application)

Example Layout

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.

Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Example Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.
