WO12864-85HB1#000-FC

Graphic LCD 2.8" 128x64, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080/SPI, Frame, 6 O'clock, Resistive touch panel (IC ST7565P)

MOQ

After sample PO, Touch panel MOQ 1Kpcs



DESCRIPTION

2.8 inch 128x64 COG monochrome Graphic LCD module with Resistive touch panel. This LCD module is built in with ST7565P controller or equivalent IC.  It supports 6800 8-bit, 8080 8-bit parallel and SPI interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.  This display is very suitable for the applications that demand more compact package displays.

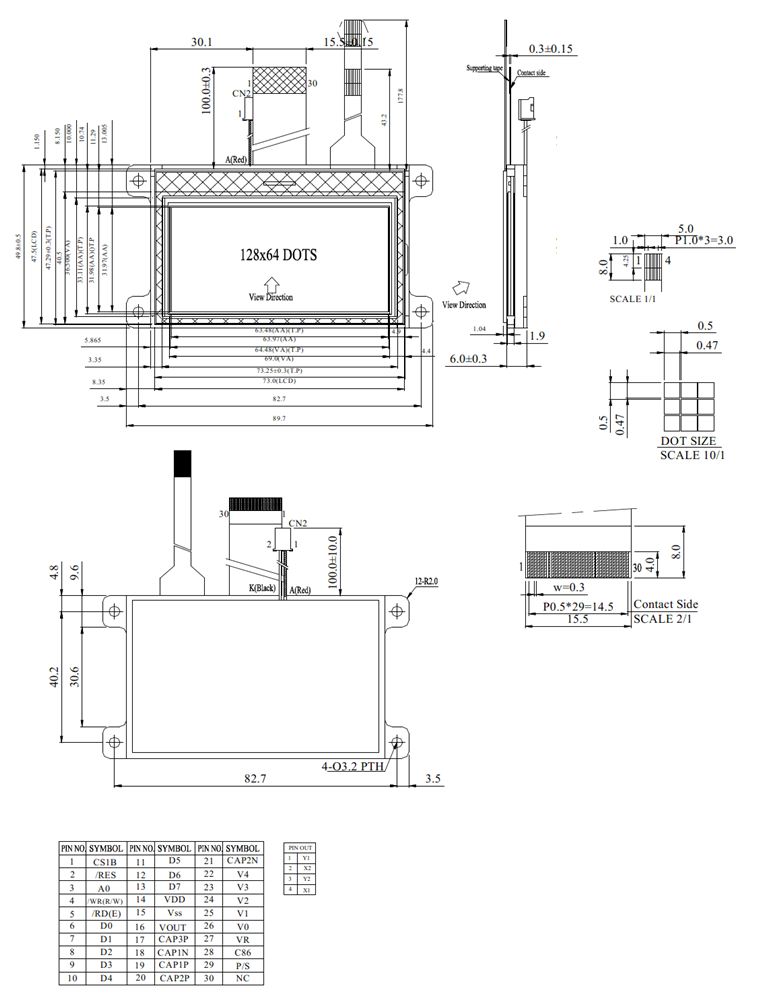

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 /CS1B This is the chip select signal.
2 /RES Controller reset signal, Active Low
3 A0 Data/ Instruction select signal
4 /WR(R/W) 8080 family: Write signal, 6800 family: Read/Write signal
5 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
6~13 D0~D7 Data bus line
14 VDD Power supply for logic
15 VSS Ground
16 Vout Positive Voltage output
17 CAP3P DC/DC voltage converter.
18 CAP1N DC/DC voltage converter.
19 CAP1P DC/DC voltage converter.
20 CAP2P DC/DC voltage converter.
21 CAP2N DC/DC voltage converter.
22~26 V4~ V0 Bias voltage levels for LCD driving
27 VR LCD Contrast Adjustment when IRS = “L”
28 C86 Interface selection 6800/8080
29 P/S Selects the interface type: Serial or Parallel.
30 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 89.7 × 49.8 mm
Viewing Area 69.0 × 36.5 mm
Mounting Hole 82.7 × 40.2 mm
Dot Pitch 0.50 × 0.50 mm
Dot Size 0.47 × 0.47 mm



Electrical Characteristics

ItemSymbolStandard value
typ.		Unit
Input Voltage VDD 3.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 9.50 V


SKU: WO12864-85HB1#000-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€22.00
€17.60
€16.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€22.00 excl tax

MOQ

After sample PO, Touch panel MOQ 1Kpcs



DESCRIPTION

2.8 inch 128x64 COG monochrome Graphic LCD module with Resistive touch panel. This LCD module is built in with ST7565P controller or equivalent IC.  It supports 6800 8-bit, 8080 8-bit parallel and SPI interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.  This display is very suitable for the applications that demand more compact package displays.

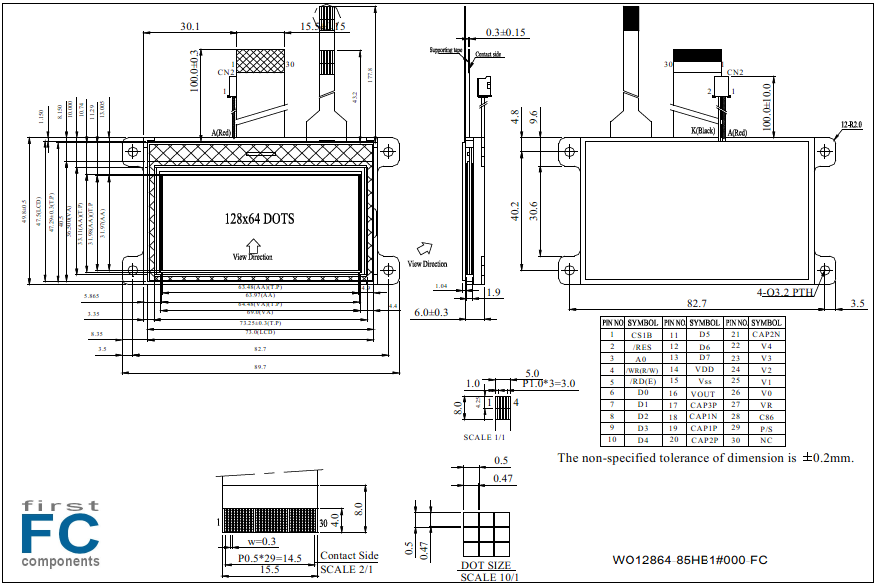

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 /CS1B This is the chip select signal.
2 /RES Controller reset signal, Active Low
3 A0 Data/ Instruction select signal
4 /WR(R/W) 8080 family: Write signal, 6800 family: Read/Write signal
5 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
6~13 D0~D7 Data bus line
14 VDD Power supply for logic
15 VSS Ground
16 Vout Positive Voltage output
17 CAP3P DC/DC voltage converter.
18 CAP1N DC/DC voltage converter.
19 CAP1P DC/DC voltage converter.
20 CAP2P DC/DC voltage converter.
21 CAP2N DC/DC voltage converter.
22~26 V4~ V0 Bias voltage levels for LCD driving
27 VR LCD Contrast Adjustment when IRS = “L”
28 C86 Interface selection 6800/8080
29 P/S Selects the interface type: Serial or Parallel.
30 NC No connection



Mechanical Data

ItemStandard ValueUnit
Module Dimension 89.7 × 49.8 mm
Viewing Area 69.0 × 36.5 mm
Mounting Hole 82.7 × 40.2 mm
Dot Pitch 0.50 × 0.50 mm
Dot Size 0.47 × 0.47 mm



Electrical Characteristics

ItemSymbolStandard value
typ.		Unit
Input Voltage VDD 3.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 9.50 V


Products specifications
Brand Winstar
Size 2.8"
Resolution 128x64
Active Area (mm) 63.97x31.97
Dot Size 0.47x0.47
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7565P
Constructive Structure COG
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 2.8"
Resolution 128x64
Active Area (mm) 63.97x31.97
Dot Size 0.47x0.47
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7565P
Constructive Structure COG
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
