WO12864-85HN#FC

Picture of WO12864-85HN#FC Picture of WO12864-85HN#FC
Graphic LCD 2.8" 128x64, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080/SPI, Frame, 6 O'clock (IC ST7567)

DESCRIPTION

128x64 COG Graphic LCD display. This LCD module is built in with ST7567 controller IC, driving duty 1/65. It supports 6800 8-bit, 8080 8-bit parallel and 4-line SPI interface. This LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO12864N is COG structure display that is very suitable for applications that demand a more compact package. Please note theat this family is the alternative model for WO12864-xxxB1#FC corresponding IC shortage or longer lead-time.

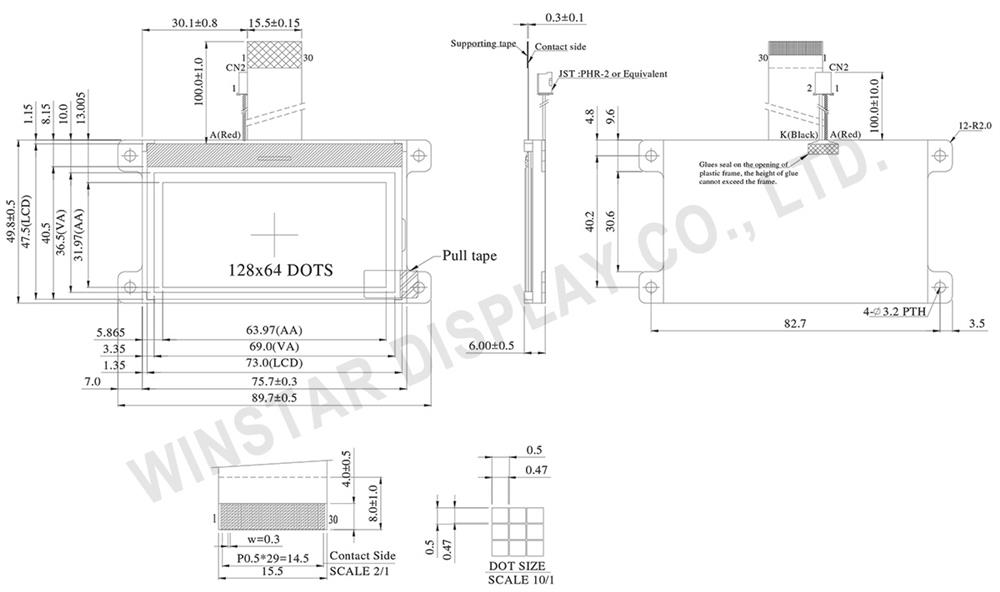

DRAWING

SPECIFICATIONS



Interface Pin Function

PinSymbolDescription
1 CSB Chip select input pin.Interface access is enabled when CSB is “L”,When CSB is non-active(CSB=”H”),D[7:0] pins are high impedance.
2 RSTB Hardware reset input pin. When RSTB is “L”, interna initialization is executed and the internal registers will be initialized.
3 A0 It determines whether the access is related to data or command. A0=“H” : Indicates that signals on D[7:0] are display data.
A0=“L” : Indicates that signals on D[7:0] are command
4 RWR Read/Write execution control pin. When PSB is “H”,
RWR is not used in serial interface and should fix to “H” by VDD1 or VDDH.
5 ERD Read/Write execution control pin. When PSB is “H”,
ERD is not used in serial interface and should fix to “H” by VDD1 or VDDH.
6 D0 When using 8-bit parallel interface: (6800 or 8080 mode)
8-bit bi-directional data bus. Connect to the data bus of 8-bit microprocessor. When CSB is non-active (CSB=“H”), D[7:0] pins are high impedance.
7 D1
8 D2
9 D3
10 D4
11 D5
12 D6
13 D7
14 VDD Power supply
15 Vss Ground
16-19 NC Not connect.
20 V0 V0 is the LCD driving voltage for common circuits at negative frame.
21 XV0 XV0 is the LCD driving voltage for common circuits at positive frame.
22 VG VG is the LCD driving voltage for segment circuits.
23-27 NC Not connect.
28 C86 C86 selects the microprocessor type in parallel interface mode.
29 PSB PSB selects the interface type: Serial or Parallel.
30 NC Not connect.



General Specification

ItemDimensionUnit
Number of dots 128 x 64 －
Module dimension 89.7 x 49.8 x 6.0 mm
View area 69.0 x 36.5 mm
Active area 63.97 x 31.97 mm
Dot size 0.47 x 0.47 mm
Dot pitch 0.5 x 0.5 mm
Duty 1/65 , 1/9 Bias
Backlight Type LED
IC ST7567
Interface 6800/8080/4-Line SPI



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Input Voltage VI -0.3 － VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 － 3.6 V
LCD Power supply voltage V0-XV0 -0.3 － 16 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 2.8 3.0 3.2 V
Supply Voltage For LCM
*Note		 VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
9.3
－		 －
9.5
－		 －
9.7
－		 V
V
V
Input High Volt. VIH － 0.7 VDD － VDD V
Input Low Volt. VIL － Vss － 0.3VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － Vss － 0.2VDD V
Supply Current IDD VDD=3.0V － 0.7 1.0 mA
SKU: WO12864-85HN#FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€14.80
€10.90
€10.50
€10.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€14.80 excl tax

DESCRIPTION

128x64 COG Graphic LCD display. This LCD module is built in with ST7567 controller IC, driving duty 1/65. It supports 6800 8-bit, 8080 8-bit parallel and 4-line SPI interface. This LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO12864N is COG structure display that is very suitable for applications that demand a more compact package. Please note theat this family is the alternative model for WO12864-xxxB1#FC corresponding IC shortage or longer lead-time.

DRAWING

SPECIFICATIONS



Interface Pin Function

PinSymbolDescription
1 CSB Chip select input pin.Interface access is enabled when CSB is “L”,When CSB is non-active(CSB=”H”),D[7:0] pins are high impedance.
2 RSTB Hardware reset input pin. When RSTB is “L”, interna initialization is executed and the internal registers will be initialized.
3 A0 It determines whether the access is related to data or command. A0=“H” : Indicates that signals on D[7:0] are display data.
A0=“L” : Indicates that signals on D[7:0] are command
4 RWR Read/Write execution control pin. When PSB is “H”,
RWR is not used in serial interface and should fix to “H” by VDD1 or VDDH.
5 ERD Read/Write execution control pin. When PSB is “H”,
ERD is not used in serial interface and should fix to “H” by VDD1 or VDDH.
6 D0 When using 8-bit parallel interface: (6800 or 8080 mode)
8-bit bi-directional data bus. Connect to the data bus of 8-bit microprocessor. When CSB is non-active (CSB=“H”), D[7:0] pins are high impedance.
7 D1
8 D2
9 D3
10 D4
11 D5
12 D6
13 D7
14 VDD Power supply
15 Vss Ground
16-19 NC Not connect.
20 V0 V0 is the LCD driving voltage for common circuits at negative frame.
21 XV0 XV0 is the LCD driving voltage for common circuits at positive frame.
22 VG VG is the LCD driving voltage for segment circuits.
23-27 NC Not connect.
28 C86 C86 selects the microprocessor type in parallel interface mode.
29 PSB PSB selects the interface type: Serial or Parallel.
30 NC Not connect.



General Specification

ItemDimensionUnit
Number of dots 128 x 64 －
Module dimension 89.7 x 49.8 x 6.0 mm
View area 69.0 x 36.5 mm
Active area 63.97 x 31.97 mm
Dot size 0.47 x 0.47 mm
Dot pitch 0.5 x 0.5 mm
Duty 1/65 , 1/9 Bias
Backlight Type LED
IC ST7567
Interface 6800/8080/4-Line SPI



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Input Voltage VI -0.3 － VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 － 3.6 V
LCD Power supply voltage V0-XV0 -0.3 － 16 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 2.8 3.0 3.2 V
Supply Voltage For LCM
*Note		 VOP Ta=-20℃
Ta=25℃
Ta=70℃		 －
9.3
－		 －
9.5
－		 －
9.7
－		 V
V
V
Input High Volt. VIH － 0.7 VDD － VDD V
Input Low Volt. VIL － Vss － 0.3VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － Vss － 0.2VDD V
Supply Current IDD VDD=3.0V － 0.7 1.0 mA
Products specifications
Brand Winstar
Size 2.8"
Resolution 128x64
Active Area (mm) 63.97x31.97
Dot Size 0.47x0.47
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7567
Constructive Structure COG
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.8"
Resolution 128x64
Active Area (mm) 63.97x31.97
Dot Size 0.47x0.47
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7567
Constructive Structure COG
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
