WEP12864L#AJP5N00E00-FC

Immagine di WEP12864L#AJP5N00E00-FC Immagine di WEP12864L#AJP5N00E00-FC
PMOLED 2.42" Graphic 128x64, Yellow color, COG + PCB, 5V, Interface RS232, Frame, Glare

RECOMMENDED ONLY AS SPARE PARTS

For new projects please check the related products below or contact us for alternative parts at sales@first-components.com.



Description

WEP12864L#AJP5N00E00-FC is a 2.42-inch graphic OLED display with a resolution of 128x64 pixels. This module is built-in with CH1116 IC and can be connected via an RS232 interface. The supply voltage for logic is 5V (typical value) with 1/64 driving duty.

This module can operate at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



DRAWING

2.42-inch 128x64 Graphic OLED Display with PCB, supporting RS232 interface - WEP012864AJ(RS232)





SPECIFICATIONS

Interface Pin Function

No.SymbolDescription
1 VDD Power supply input
2 VSS Ground.
3 MCU_RESET MCU hardware reset input.3.3V~5V
This pin is not used and should be open.
4 RX RS-232 Receive
5 TX RS-232 Transmit
6~20 NC No connection.



General Specification

ItemDimensionUnit
Dot Matrix 128 x 64 -
Module dimension 75.0 × 52.7 × 8.5(Max). mm
Active Area(AA) 55.01 × 27.49 mm
Pixel Size 0.40 × 0.40 mm
Pixel Pitch 0.43 × 0.43 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC CH1116
Interface RS232 (Baud rate:115200)
Size 2.42 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 3.6 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD - 2.8 3.0 3.3 V
Display 50% Pixel on IDD VDD =5V - 60 120 mA

SKU: WEP12864L#AJP5N00E00-FC
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€29,60
€23,70
€22,80

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€29,60 IVA esclusa

RECOMMENDED ONLY AS SPARE PARTS

For new projects please check the related products below or contact us for alternative parts at sales@first-components.com.



Description

WEP12864L#AJP5N00E00-FC is a 2.42-inch graphic OLED display with a resolution of 128x64 pixels. This module is built-in with CH1116 IC and can be connected via an RS232 interface. The supply voltage for logic is 5V (typical value) with 1/64 driving duty.

This module can operate at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



DRAWING

2.42-inch 128x64 Graphic OLED Display with PCB, supporting RS232 interface - WEP012864AJ(RS232)





SPECIFICATIONS

Interface Pin Function

No.SymbolDescription
1 VDD Power supply input
2 VSS Ground.
3 MCU_RESET MCU hardware reset input.3.3V~5V
This pin is not used and should be open.
4 RX RS-232 Receive
5 TX RS-232 Transmit
6~20 NC No connection.



General Specification

ItemDimensionUnit
Dot Matrix 128 x 64 -
Module dimension 75.0 × 52.7 × 8.5(Max). mm
Active Area(AA) 55.01 × 27.49 mm
Pixel Size 0.40 × 0.40 mm
Pixel Pitch 0.43 × 0.43 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC CH1116
Interface RS232 (Baud rate:115200)
Size 2.42 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 3.6 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD - 2.8 3.0 3.3 V
Display 50% Pixel on IDD VDD =5V - 60 120 mA

Specifiche di prodotto
Brand Winstar
Size 2.42"
Risoluzione 128x64
Area Attiva (mm) 55.01x27.49
Dot Size 0.40x0.40
Polarizzatore Glare
Colore Yellow
Alimentazione 5V
Interfaccia Display RS232
Display IC CH1116
Struttura Costruttiva COG + PCB
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -40~80
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 2.42"
Risoluzione 128x64
Area Attiva (mm) 55.01x27.49
Dot Size 0.40x0.40
Polarizzatore Glare
Colore Yellow
Alimentazione 5V
Interfaccia Display RS232
Display IC CH1116
Struttura Costruttiva COG + PCB
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -40~80
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Preferred
Prodotti correlati
Immagine di GPHA101-2002A001R1BA-30

GPHA101-2002A001R1BA-30

Pin Header - Straight Contact, Single Row, 20 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 6mm)
Da €0,28 IVA esclusa
Immagine di CSHA101-2002A001R1AB-30

CSHA101-2002A001R1AB-30

Female Header - Straight Contact, Single Row, 20 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 4-6mm)
Da €0,42 IVA esclusa
Immagine di GPHB101-2002A044A1BA-30

GPHB101-2002A044A1BA-30

Pin Header - R/A Contact, Single Row, 20 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 3,20mm)
Da €0,42 IVA esclusa
Immagine di CSHA106-2002A001R1AB-30

CSHA106-2002A001R1AB-30

Female Header - Straight Contact, Single Row, 20 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 3-4,50mm)
Da €0,53 IVA esclusa
Immagine di WEO12864S#G00-FC

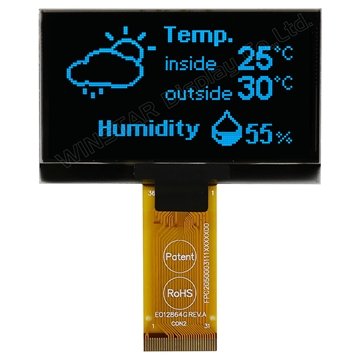

WEO12864S#G00-FC

PMOLED 2.42" Graphic 128x64, Sky Blue color, COG, 3V, Interface 6800,8080,SPI,I2C, SSD1309ZC IC, Glare
Da €16,40 IVA esclusa
Immagine di WEO12864S#G08-FC

WEO12864S#G08-FC

PMOLED 2.42" Graphic 128x64, Sky Blue color, COG, 3V, Interface 6800,8080,SPI,I2C, SSD1309ZC IC, (22pin), Anti-glare
Da €16,70 IVA esclusa
Immagine di WEO12864S#G0D-FC

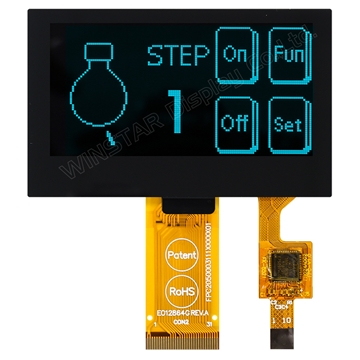

WEO12864S#G0D-FC
