WF70-800480HD#004-FC

TFT 7'' 800x480, LCD Module, Interface RGB (40pin), 460cd/m², Square pixels, Frame, No touch

DESCRIPTION

7'' TFT Winstar standard display.

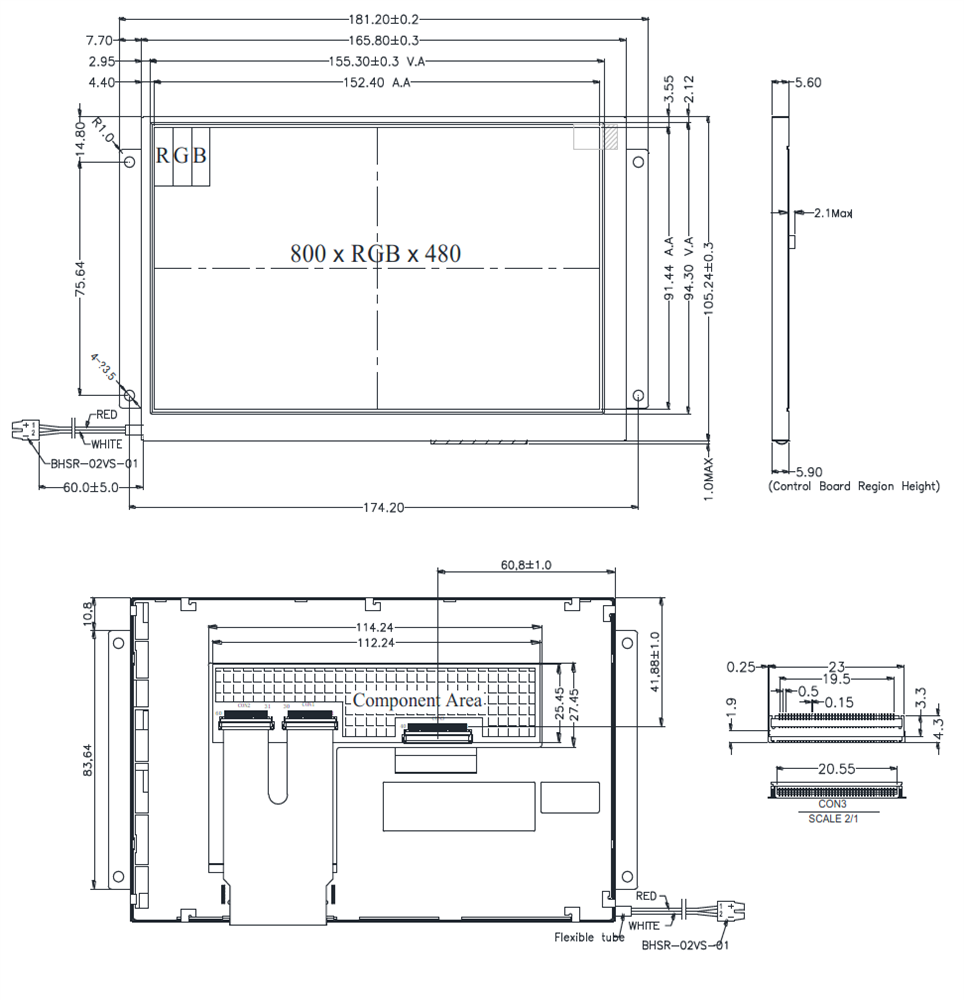

DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunctionPinSymbolFunction
1~2 GND Power Ground 23 G3 Green Data 3
3 NC Not Connect 24 GND Power Ground
4~7 Vcc Power Supply for Digital Circuit 25 G2 Green Data 2
8 NC Not Connect 26 G1 Green Data 1
9 DE Data Enable 27 G0 Green Data 0(LSB)
10~12 GND Power Ground 28 GND Power Ground
13 B5 Blue Data 5 (MSB) 29 R5 Red Data 5 (MSB)
14 B4 Blue Data 4 30 R4 Red Data 4
15 B3 Blue Data 3 31 R3 Red Data 3
16 GND Power Ground 32 GND Power Ground
17 B2 Blue Data 2 33 R2 Red Data 2
18 B1 Blue Data 1 34 R1 Red Data 1
19 B0 Blue Data 0 (LSB) 35 R0 Red Data 0(LSB)
20 GND Power Ground 36~37 GND Power Ground
21 G5 Green Data 5 (MSB) 38 DCLK Clock Signals ; Latch Data at the Falling Edge
22 G4 Green Data 4 39~40 GND Power Ground



Backlight Driving Part

Pin No.SymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- White, LED_ Cathode



General Specifications

ItemDimensionUnit
Size 7 inch TFT LCD
Dot Matrix 800 × RGB × 480 (TFT) dots
Module dimension 181.20(W) × 105.24(H) × 5.2(D) mm
Active area 152.4 × 91.44 mm
Dot pitch 0.0635 × 0.1905 mm
LCD type TFT, Normally White, Transmissive
TFT Interface 18-bit RGB
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics


Absolute Maximum Ratings (GND=0V)
ItemSymbolMinTypMaxUnit
Power Voltage Vcc -0.3 - 6 V
Input Signal Voltage Vi -0.3 - Vcc+0.3 V
Recommended Operation condition (GND=0V,Ta=25℃)
ItemSymbolMinTypMaxUnit
Power Supply Voltage Vcc 3.0 3.3 3.6 V
Power Supply Current Icc - 200 260 mA
Input logic Voltage High Level VIH 0.7Vcc - Vcc V
Low Level VIL 0 - 0.3Vcc


SKU: WF70-800480HD#004-FC
Brand: Winstar
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€53,00
€46,90
€42,00

Per quantita’ maggiori di 25pz prego invii la richiesta a sales@first-components.com o chiami il +39 0332 1888005

€53,00 IVA esclusa

DESCRIPTION

7'' TFT Winstar standard display.


DRAWING



SPECIFICATIONS



Interface

LCM PIN Definition

PinSymbolFunctionPinSymbolFunction
1~2 GND Power Ground 23 G3 Green Data 3
3 NC Not Connect 24 GND Power Ground
4~7 Vcc Power Supply for Digital Circuit 25 G2 Green Data 2
8 NC Not Connect 26 G1 Green Data 1
9 DE Data Enable 27 G0 Green Data 0(LSB)
10~12 GND Power Ground 28 GND Power Ground
13 B5 Blue Data 5 (MSB) 29 R5 Red Data 5 (MSB)
14 B4 Blue Data 4 30 R4 Red Data 4
15 B3 Blue Data 3 31 R3 Red Data 3
16 GND Power Ground 32 GND Power Ground
17 B2 Blue Data 2 33 R2 Red Data 2
18 B1 Blue Data 1 34 R1 Red Data 1
19 B0 Blue Data 0 (LSB) 35 R0 Red Data 0(LSB)
20 GND Power Ground 36~37 GND Power Ground
21 G5 Green Data 5 (MSB) 38 DCLK Clock Signals ; Latch Data at the Falling Edge
22 G4 Green Data 4 39~40 GND Power Ground



Backlight Driving Part

Pin No.SymbolDescription
1 VLED+ Red, LED_ Anode
2 VLED- White, LED_ Cathode



General Specifications

ItemDimensionUnit
Size 7 inch TFT LCD
Dot Matrix 800 × RGB × 480 (TFT) dots
Module dimension 181.20(W) × 105.24(H) × 5.2(D) mm
Active area 152.4 × 91.44 mm
Dot pitch 0.0635 × 0.1905 mm
LCD type TFT, Normally White, Transmissive
TFT Interface 18-bit RGB
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80



Electrical Characteristics


Absolute Maximum Ratings (GND=0V)
ItemSymbolMinTypMaxUnit
Power Voltage Vcc -0.3 - 6 V
Input Signal Voltage Vi -0.3 - Vcc+0.3 V
Recommended Operation condition (GND=0V,Ta=25℃)
ItemSymbolMinTypMaxUnit
Power Supply Voltage Vcc 3.0 3.3 3.6 V
Power Supply Current Icc - 200 260 mA
Input logic Voltage High Level VIH 0.7Vcc - Vcc V
Low Level VIL 0 - 0.3Vcc


Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 800x480
Area Attiva (mm) 152.40x91.44
Colore Full Color
Interfaccia Display RGB
IC Controller Display No
Angolo Visione TN
Brightness Range Standard 100~600cd/m²
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 800x480
Area Attiva (mm) 152.40x91.44
Colore Full Color
Interfaccia Display RGB
IC Controller Display No
Angolo Visione TN
Brightness Range Standard 100~600cd/m²
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
Preferred - Not Preferred Preferred
