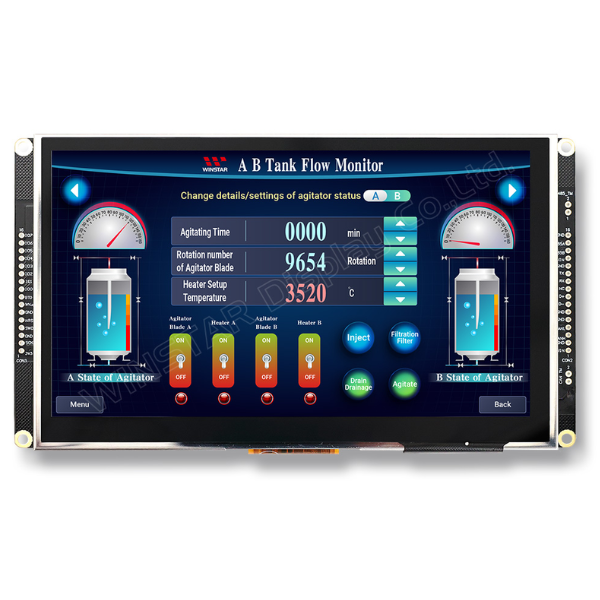

WL0F0007000A8GFADSA00-FC

Immagine di WL0F0007000A8GFADSA00-FC Immagine di WL0F0007000A8GFADSA00-FC
TFT 7" 1024x600, UART interface & GPIO Support, 450cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)

DESCRIPTION

7 Inch Smart Display (UART series) Features

  • +12V power supply input with 8V to 35V dynamic range power input, the power consumption is around 6 Watt.
  • Self-testing after booting function.
  • UART communication interface.
  • Supports UART protocol, default baud rate at 115200Kbps.
  • Built in 16M external flash memory to store the font and Object Dictionary Data.
  • Support capacitive touch panel (CTP).
  • Build in buzzer and can be controlled by Master Device.

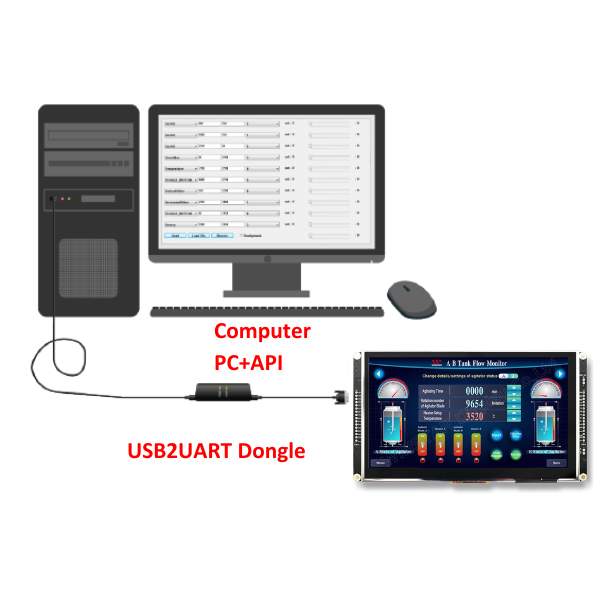

  • Demo set HOST can be used on multiple platforms, such as Computer (with USB to  UART Dongle), MCU, Raspberry Pi (with PiCAN2). 9. GPIO PIN support with 3.3V TTL.


Software Features_GUI builder:

  • Real-Time Simulation: With the WINSTAR GUI Builder, you can directly simulate your design on a computer without the need to program it to the device first, simplifying adjustments and testing.
  • Convenient Design Process: No programming is required; you can create beautiful interfaces with simple drag-and-drop operations. Images and functions are linked, making it especially suitable for users unfamiliar with programming.
  • Rich Functionality and Widgets: Offers a variety of customizable widgets that integrate graphics and functions, easily handling both simple displays and complex functionalities.


Software Features_ST development tools:

Smart Display UART series is designed with STMicroelectronics' (ST) controller which supports ST development tools like TouchGFX and STM32CubeIDE. You can also use ST tools to design WINSTAR Smart Display modules besides GUI builder.

  • TouchGFX: An advanced free-of-charge graphic software framework optimized for STM32 microcontrollers.
  • STM32CubeIDE: An advanced C/C++ development platform with peripheral configuration, code generation, code compilation, and debug features for STM32 microcontrollers and microprocessors.
  • STM32CubeMX: A graphical tool that allows a very easy configuration of STM32 microcontrollers, as well as the generation of the corresponding initialization C code for the Arm® Cortex®-M core or a partial Linux® Device Tree for Arm® Cortex®-A core, through a step-by-step process.
  • STM32CubeProg: An all-in-one multi-OS software tool for programming STM32 products. It provides an easy-to-use and efficient environment for reading, writing and verifying device memory through both the debug interface (JTAG and SWD) and the bootloader interface (UART, USB DFU, I2C, SPI, and CAN).

Networking and Communication Features:

  • Network Type: Peer-to-peer for short distance usage
  • Protocol: Proprietary UART



Application Scenarios:

Suitable for industrial short-distance applications, such as coffee machines, smart appliances, and vending machines.



Competitive Advantages:

  • The WINSTAR UART Smart Display eliminates the need to separate design from functionality, saving time and effort.
  • Provides real-time simulation and a user-friendly design interface, making it accessible for users without programming backgrounds.
  • Easy start and speed up the development for programmers by built in STM32 MCU on Smart UART module.


DRAWING

SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 8~35 Vdc
Communication Interface UART --
MCU STM32F746 N/A
Flash Memory 16 MB
SDRAM Memory 16 MHz
LCD display size 7.0 inch
Dot Matrix 1024 x RGB x 600(TFT) dot
Module dimension 184.1(W) x 103.8(H) x 22(D) mm
Active area 154.2144 x 85.92 mm
Dot pitch 0.1506 x 0.1432 mm
Brightness Min:400; Typ:450 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 16:9
Touch Panel With CTP
Surface Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃


Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VIN － 8 12 35 V
Supply current I(mA) － － 520 － mA


BOM

ItemDescription
LCM

WF70-­1024600A8L#BP3-­FC
PCBA SV10007R00A8K00N0104


Interface Pin Function

CON2 definition:

PinSymbolFunctionRemark
1 VIN Power supply GND input Input
2 GND Power supply 8V to 35V input Input
3 Reserve - -
4 Reserve - -
5 GND Power supply GND input Input
6 GND Power supply GND input Input
7 Reserve - -
8 Reserve - -
9 NC - Input
10 UART_RX UART RX interface I/O
11 UART_TX UART TX interface I/O
12 GND Power supply GND input Input
13 VIN Power supply 8V to 35V input Input
14 Reserve - -
15 Reserve - -
16 GND Power supply GND input Input


CON3 definition:

PinSymbolFunctionRemark
1 +3V3 3.3V power for JTAG interface Output
2 SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 SWDIO Data pin for JTAG interface I/O
5 NRST Reset pin for JTAG interface Input
6 GND Power GND Output
7 Wkup WKup,ADC,Timer,Event,I/O Input
8 BOOT0 Lo: Internal flash boot (Default)
Hi: External flash boot		 Input
9 IO_0 ADC,DAC,Timer,Event,I/O @3.3V I/O
10 IO_1 ADC,Timer,Event,I/O @3.3V I/O
11 IO_2 ADC,Timer,Event,I/O @3.3V I/O
12 IO_3 ADC,Timer,Event,I/O @3.3V I/O
13 IO_4 ADC,Timer,Event,I/O @3.3V I/O
14 IO_5 ADC,Timer,Event,I/O @3.3V I/O
15 IO_6 ADC,Timer,Event,I/O @3.3V I/O
16 IO_7 RST,ADC,Event,I/O @3.3V I/O



EVALUATION KIT

Evaluation Kit P/N WWSSDEMO70A8-FA-11#002 available at the links:

ITA: https://www.first-components.com/it/wwssdemo70a8-fa-11002

ENG: https://www.first-components.com/en/wwssdemo70a8-fa-11002
SKU: WL0F0007000A8GFADSA00-FC
Brand: Winstar
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€92,00
€82,80
€78,40

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€92,00 IVA esclusa

DESCRIPTION

7 Inch Smart Display (UART series) Features

  • +12V power supply input with 8V to 35V dynamic range power input, the power consumption is around 6 Watt.
  • Self-testing after booting function.
  • UART communication interface.
  • Supports UART protocol, default baud rate at 115200Kbps.
  • Built in 16M external flash memory to store the font and Object Dictionary Data.
  • Support capacitive touch panel (CTP).
  • Build in buzzer and can be controlled by Master Device.
  • Demo set HOST can be used on multiple platforms, such as Computer (with USB to  UART Dongle), MCU, Raspberry Pi (with PiCAN2). 9. GPIO PIN support with 3.3V TTL.


Software Features_GUI builder:

  • Real-Time Simulation: With the WINSTAR GUI Builder, you can directly simulate your design on a computer without the need to program it to the device first, simplifying adjustments and testing.
  • Convenient Design Process: No programming is required; you can create beautiful interfaces with simple drag-and-drop operations. Images and functions are linked, making it especially suitable for users unfamiliar with programming.
  • Rich Functionality and Widgets: Offers a variety of customizable widgets that integrate graphics and functions, easily handling both simple displays and complex functionalities.


Software Features_ST development tools:

Smart Display UART series is designed with STMicroelectronics' (ST) controller which supports ST development tools like TouchGFX and STM32CubeIDE. You can also use ST tools to design WINSTAR Smart Display modules besides GUI builder.

  • TouchGFX: An advanced free-of-charge graphic software framework optimized for STM32 microcontrollers.
  • STM32CubeIDE: An advanced C/C++ development platform with peripheral configuration, code generation, code compilation, and debug features for STM32 microcontrollers and microprocessors.
  • STM32CubeMX: A graphical tool that allows a very easy configuration of STM32 microcontrollers, as well as the generation of the corresponding initialization C code for the Arm® Cortex®-M core or a partial Linux® Device Tree for Arm® Cortex®-A core, through a step-by-step process.
  • STM32CubeProg: An all-in-one multi-OS software tool for programming STM32 products. It provides an easy-to-use and efficient environment for reading, writing and verifying device memory through both the debug interface (JTAG and SWD) and the bootloader interface (UART, USB DFU, I2C, SPI, and CAN).

Networking and Communication Features:

  • Network Type: Peer-to-peer for short distance usage
  • Protocol: Proprietary UART



Application Scenarios:

Suitable for industrial short-distance applications, such as coffee machines, smart appliances, and vending machines.



Competitive Advantages:

  • The WINSTAR UART Smart Display eliminates the need to separate design from functionality, saving time and effort.
  • Provides real-time simulation and a user-friendly design interface, making it accessible for users without programming backgrounds.
  • Easy start and speed up the development for programmers by built in STM32 MCU on Smart UART module.


DRAWING

SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 8~35 Vdc
Communication Interface UART --
MCU STM32F746 N/A
Flash Memory 16 MB
SDRAM Memory 16 MHz
LCD display size 7.0 inch
Dot Matrix 1024 x RGB x 600(TFT) dot
Module dimension 184.1(W) x 103.8(H) x 22(D) mm
Active area 154.2144 x 85.92 mm
Dot pitch 0.1506 x 0.1432 mm
Brightness Min:400; Typ:450 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 16:9
Touch Panel With CTP
Surface Glare


Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃


Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VIN － 8 12 35 V
Supply current I(mA) － － 520 － mA


BOM

ItemDescription
LCM

WF70-­1024600A8L#BP3-­FC
PCBA SV10007R00A8K00N0104


Interface Pin Function

CON2 definition:

PinSymbolFunctionRemark
1 VIN Power supply GND input Input
2 GND Power supply 8V to 35V input Input
3 Reserve - -
4 Reserve - -
5 GND Power supply GND input Input
6 GND Power supply GND input Input
7 Reserve - -
8 Reserve - -
9 NC - Input
10 UART_RX UART RX interface I/O
11 UART_TX UART TX interface I/O
12 GND Power supply GND input Input
13 VIN Power supply 8V to 35V input Input
14 Reserve - -
15 Reserve - -
16 GND Power supply GND input Input


CON3 definition:

PinSymbolFunctionRemark
1 +3V3 3.3V power for JTAG interface Output
2 SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 SWDIO Data pin for JTAG interface I/O
5 NRST Reset pin for JTAG interface Input
6 GND Power GND Output
7 Wkup WKup,ADC,Timer,Event,I/O Input
8 BOOT0 Lo: Internal flash boot (Default)
Hi: External flash boot		 Input
9 IO_0 ADC,DAC,Timer,Event,I/O @3.3V I/O
10 IO_1 ADC,Timer,Event,I/O @3.3V I/O
11 IO_2 ADC,Timer,Event,I/O @3.3V I/O
12 IO_3 ADC,Timer,Event,I/O @3.3V I/O
13 IO_4 ADC,Timer,Event,I/O @3.3V I/O
14 IO_5 ADC,Timer,Event,I/O @3.3V I/O
15 IO_6 ADC,Timer,Event,I/O @3.3V I/O
16 IO_7 RST,ADC,Event,I/O @3.3V I/O



EVALUATION KIT

Evaluation Kit P/N WWSSDEMO70A8-FA-11#002 available at the links:

ITA: https://www.first-components.com/it/wwssdemo70a8-fa-11002

ENG: https://www.first-components.com/en/wwssdemo70a8-fa-11002
Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 1024x600
Area Attiva (mm) 154.21x85.92
Colore Full Color
Alimentazione 12V
Interfaccia Display UART + GPIO
Angolo Visione IPS
Frame Yes
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 1024x600
Area Attiva (mm) 154.21x85.92
Colore Full Color
Alimentazione 12V
Interfaccia Display UART + GPIO
Angolo Visione IPS
Frame Yes
Touch Panel Capacitive
Temperatura O. (°C) -20~70
Preferred - Not Preferred Preferred
