Graphic LCD 2.15'' 132x32, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface I2C, 6 O'clock, FPC per ZIF Connector (IC ST7567A)

DESCRIPTION

WO13232A is a monochrome COG graphic LCD module made of 132 x 32 dots matrix with FPC pinout. This COG module is built-in with ST7567A IC; it supports I2C interface, viewing direction 6 o'clock, 1/33 duty, and 1/6 Bias. WO13232A module has the same outline dimension size as WO12232G (with PCB) but with a higher resolution.

The WO13232A is available for FSTN Positive Transflective LCD with a white LED backlight (WO13232A-TFH) and DFSTN Negative (Double film) Transmissive LCD (WO13232A-TDI). This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. The supply voltage for logic of WO13232A is 2.7V to 3.3V, the typical value of 3V.

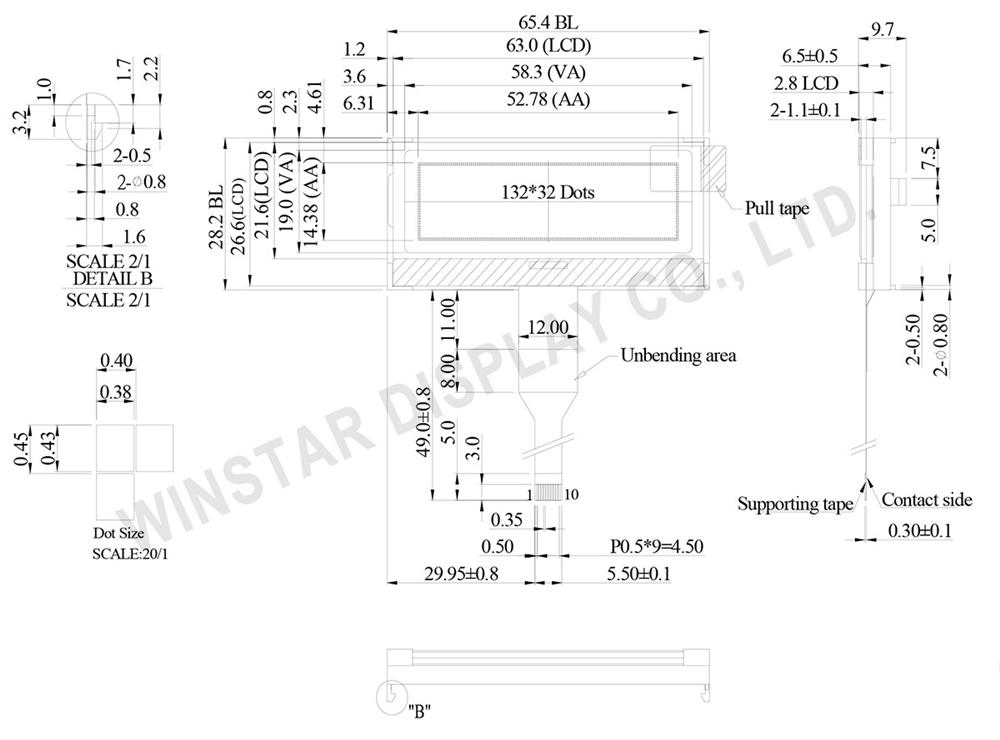

DRAWING

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VG VG is the LCD driving voltage for segment circuits.
2 XV0 XV0 is the LCD driving voltage for common circuits at positive frame.
3 V0 V0 is the LCD driving  voltage for common circuits at negative frame
4 VSS Ground
5 VDD Power supply
6 SDA Serial Data signal
7 SCL Serial clock input
8 RSTB External reset pin
9 A A
10 K K



Mechanical Data

ItemDimensionUnit
Number of dots 132 x 32
Module dimension 65.4 x 28.2 x 9.7 mm
View area 58.3 x 19.0 mm
Active area 52.78 x 14.38 mm
Dot size 0.38 x 0.43 mm
Dot pitch 0.40 x 0.45 mm
Duty 1/33duty , 1/6 Bias
Backlight Type LED
IC ST7567A
Interface I2C



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 +70
Storage Temperature TST -30 +80
Input Voltage VI -0.3 VDD+0.3 V
Digital Power Supply Voltage VDD-Vss -0.3 4 V
LCD Power supply voltage V0-XV0 -0.3 18 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 2.7 3.0 3.3 V
Supply Voltage For LCD Vop Ta=-20℃
Ta=25℃
Ta=70℃

7.8

8.0

8.2
V
V
V
Input High Volt. VIH 0.7 VDD VDD V
Input Low Volt. VIL VSS 0.3 VDD V
Output High Volt. VOH 0.8 VDD VDD V
Output Low Volt. VOL VSS 0.2VDD V
Supply Current IDD 1.5 mA
