DMG10768K104_03WTC

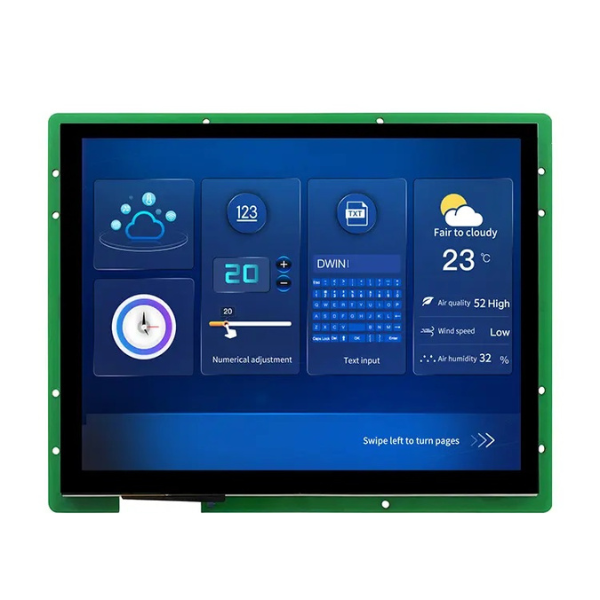

Picture of DMG10768K104_03WTC Picture of DMG10768K104_03WTC
TFT 10.4" 1024x768, Intelligent TSL RS485/RS232 COB, 250cd/m², Wide View Angle (IPS), Capacitive Touch Panel, Medical Grade

Media



Specification





ASIC Information

T5L2 ASIC Self-designed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, and 512KBytes used to store the user database.
Rewrite cycle: over 100,000 times


Display

Color 16.7M colors
LCD Type IPS-TFT-LCD
Viewing Angle 85°/85°/85°/85° (L/R/U/D)
Display Area（A.A） 211.20mm (W)×158.40mm (H)
Resolution 1024x768
Backlight LED
Brightness DMG10600K104_03WN： 300nit
DMG10600K104_03WR： 250nit
DMG10600K104_03WC：250nit


Touch Parameters

Type RTP (Resistive touch panel)
Structure ITO film + ITO glass
Touch Mode Support point touch and drag
Surface Hardness 3H
Light Transmittance Over 80%
Life Over 1,000,000 times touch
Type CTP (Capacitive touch panel)
Structure G+G structure with surface cover of Asahi tempered glas
Touch Mode Support point touch and drag
Surface Hardness 6H
Light Transmittance Over 90%
Life Over 1,000,000 times touch


Reliability Test

Working Temperature ‘-20℃~70℃ (12V @ 60% RH)
Storage Temperature -30℃~80℃
Working Humidity 10%~90%RH, typical value of 60% RH
Conformal coating Yes



Interface

LCM interface FPC60_0.5mm, LVDSinterface
Baudrate 3150~3225600bps, typical value of 115200bps
Output Voltage Output 1, Iout = 1mA; -5.0~-3.0 V
Output 0, Iout =-1mA; 3.0~5.0 V
Input Voltage
（RXD）		 Input 1， Iin = 1mA；-15.0~-5.0V
Input 0， Iin = -1mA；5.0~15V
Interface UART2：RS232
UART4：RS232 (Only avaliable after OS configuration)
UART5:  RS485 (Only avaliable after OS configuration)
User interface 8Pin_2.0mm(RS232), 2Pin_2.0mm(RS485)
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s

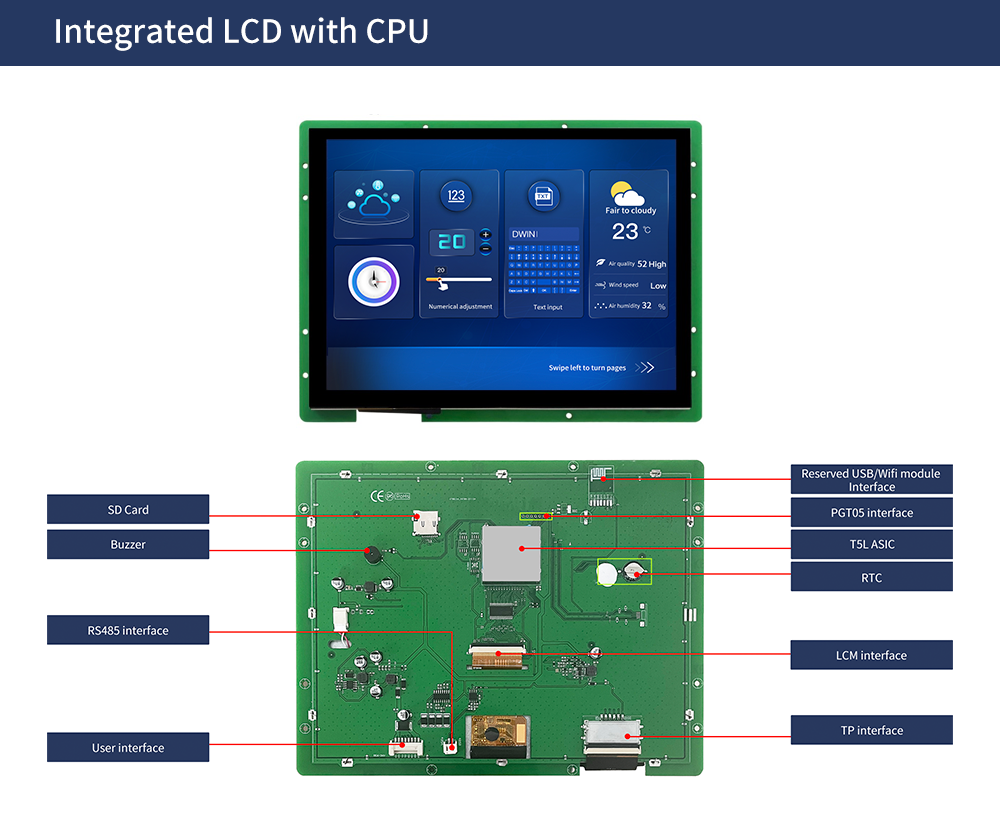

Reserved module
interface		 Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal


Peripheral

DMG10600K104_03WN Buzzer, RTC
DMG10600K104_03WR Buzzer, RTC
DMG10600K104_03WC Buzzer, RTC



Application

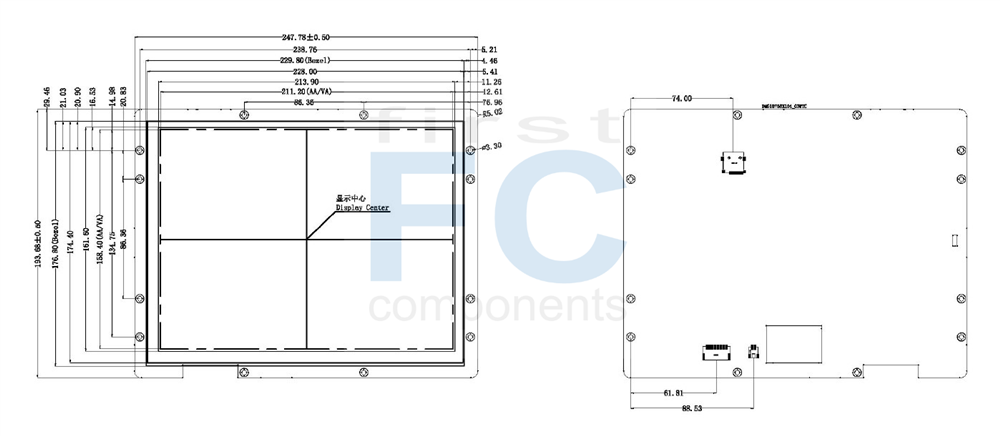

DRAWING

SKU: DMG10768K104_03WTC
Brand: DWIN
Available: Yes
Be the first to review this product

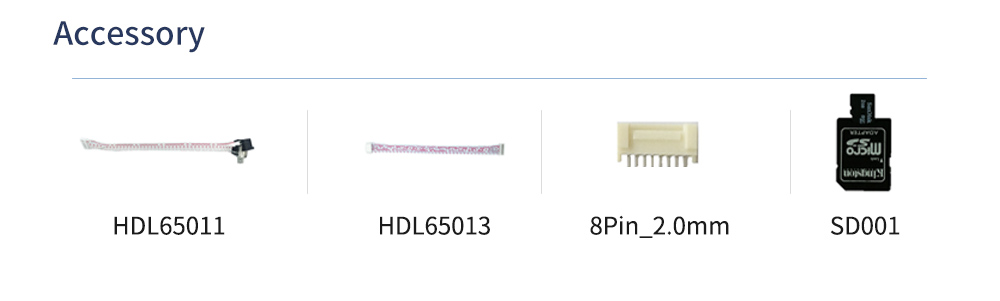

Accessory Kit
