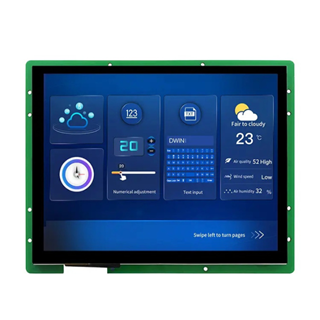

TFT 10.4" 1024x768, Intelligent T5L UART COB, 270cd/m², Wide View Angle (IPS), Capacitive Touch Panel, Industrial Grade

T5L2 ASIC

Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times

LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
Resolution	1024×768 pixels (support 0°/90°/180°/270°)
Color	24-bit 8R8G8B

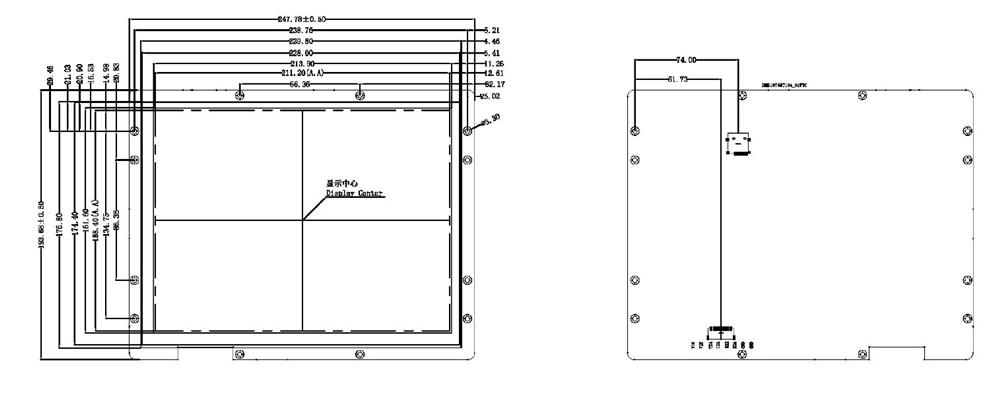

Active Area (A.A.)	211.20mm (W)×158.40mm (H)
Backlight Mode	LED
Backlight Service Life	>30000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)
Brightness	270nit
Brightness Control	0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: Long time display of high contrast still imagine over 30 minutes may lead to display residual shadow, please use screen saver to avoid this problem.

LCM interface	FPC60_0.5mm, LVDS interface
CTP interface	COB structure, IIC interface

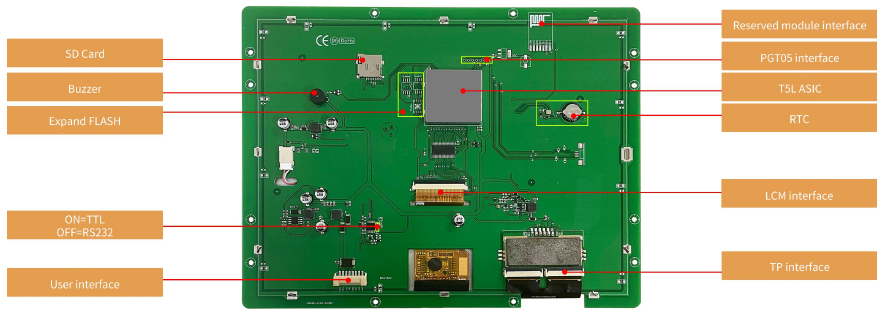

User interface	8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash	16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expand Flash	Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
Buzzer	3V passive buzzer. Power: <1W
RTC	Super-capacitor for power supply. Accuracy: 1s/24h. It can work normally for 30 days after power failure
SD card interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface	Wi-Fi module: connect to the cloud platform to update remotely; USB module: download files by USB flash disk
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

SKU: DMG10768T104_01WTC

Brand: DWIN

Available: No

Be the first to review this product

Accessory Kit

FFC Cable
Display Connector
Added Accessory 1
Added Accessory 2

Price Breaks

Quantity

10+

Price

€132.60

€126.00

€122.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€132.60 excl tax

Overview
Specifications
Download
Contact Us

T5L2 ASIC

Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 times

LCD Type	IPS, TFT LCD
Viewing Angle	Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
Resolution	1024×768 pixels (support 0°/90°/180°/270°)
Color	24-bit 8R8G8B
Active Area (A.A.)	211.20mm (W)×158.40mm (H)
Backlight Mode	LED
Backlight Service Life	>30000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)
Brightness	270nit
Brightness Control	0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)
Note: Long time display of high contrast still imagine over 30 minutes may lead to display residual shadow, please use screen saver to avoid this problem.

LCM interface	FPC60_0.5mm, LVDS interface
CTP interface	COB structure, IIC interface
User interface	8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Flash	16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Expand Flash	Expandable to 64Mbytes NOR Flash or 48Mbytes NOR Flash+512Mbytes NAND Flash
Buzzer	3V passive buzzer. Power: <1W
RTC	Super-capacitor for power supply. Accuracy: 1s/24h. It can work normally for 30 days after power failure
SD card interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface	Wi-Fi module: connect to the cloud platform to update remotely; USB module: download files by USB flash disk
PGT05 interface	When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Rated Power

Operating Voltage

6~36V, typical value of 12V

Operating Current

VCC=12V, max backlight

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Products specifications

Brand	DWIN
Size	10.4"
Resolution	1024x768
Viewing Area (mm)	211.20x158.40
Active Area (mm)	211.20x158.40
Color	Full Color
Nr. Of Color	16.7M
Operating System	DGUSII OS
Power supply	12V
Display Interface	UART(TTL)/RS232
Display IC	DWIN ASIC T5L2
View Angle	IPS
Touch Panel	Capacitive
O. Temperature (°C)	-20~70
