DMG12800K101_03WTC

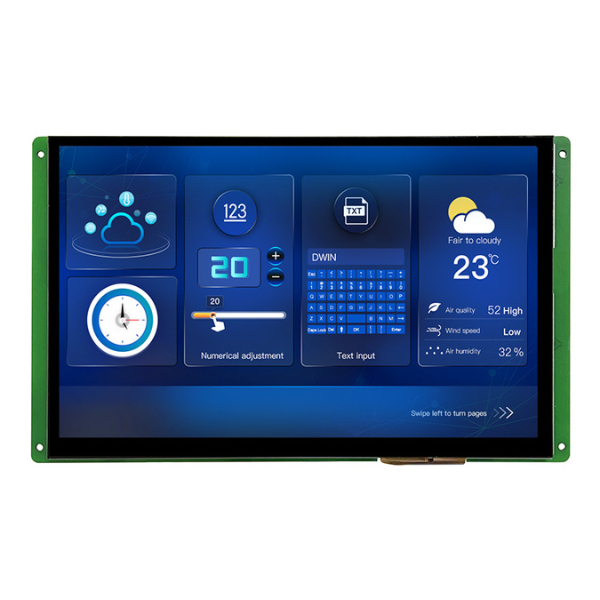

Picture of DMG12800K101_03WTC Picture of DMG12800K101_03WTC
TFT 10.1" 1280x800, Intelligent T5L RS485/RS232 COB, 350cd/m², Wide View Angle (IPS), Capacitive Touch Pane, Medical Grade

Media

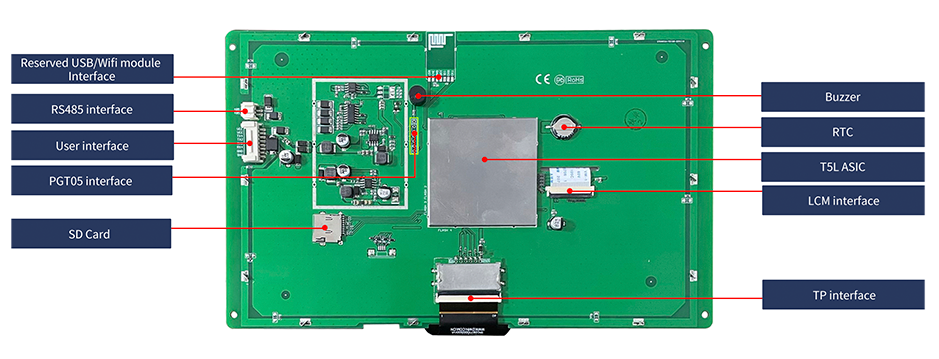

ASIC Information

T5L2 ASIC Self-designed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database.


Display

Color 16.7M（16777216） colors
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85/85/85/85 (L/R/U/D)
Display Area（A.A） 216.96mm (W)×135.6mm (H)
Resolution 1280x800Pixel
Backlight LED
Brightness 350nit


Touch Parameters

Type CTP (Capacitive touch panel)
Structure G+G structure with surface cover of Asahi tempered glas
Touch Mode Support point touch and drag
Surface Hardness 6H
Light Transmittance Over 90%
Life Over 1,000,000 times touch


Voltage & Current

Power Voltage 7~36V
Operation Current  VCC = +12V, Max backlight, 510mA
VCC = +12V, Backlight off, 180mA


Interface

LCM interface FPC40_0.5mm, LVDS interface
Baudrate 3150~3225600bps
Output Voltage Output 1, Iout = 1mA; -5.0~-3.0 V
Output 0, Iout =-1mA; 3.0~5.0 V
Input Voltage
（RXD） 		 Input 1， Iin = 1mA；-15.0~-5.0V
Input 0， Iin = -1mA；5.0~15.0V
Interface UART2: RS232
UART4: RS232 (Only available after OS configuration)
UART5: RS485 (Only available after OS configuration)
User Interface 8Pin_2.0mm (RS232), 2Pin_2.0mm (RS485)
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module
interface		 Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS
kernel and make the product return to

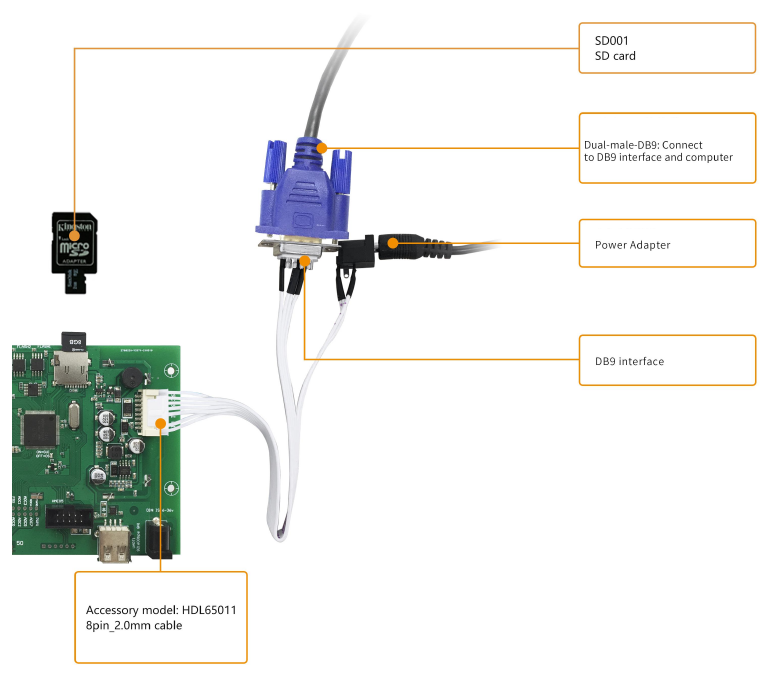

Display Connection

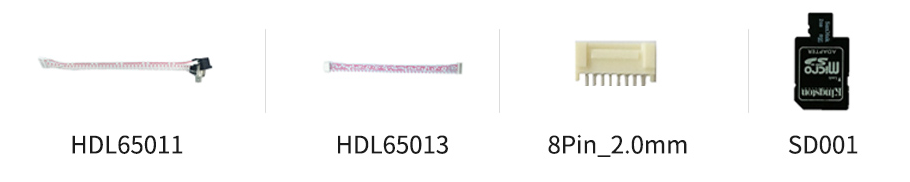

Accessories (Selectable in Above Menu)



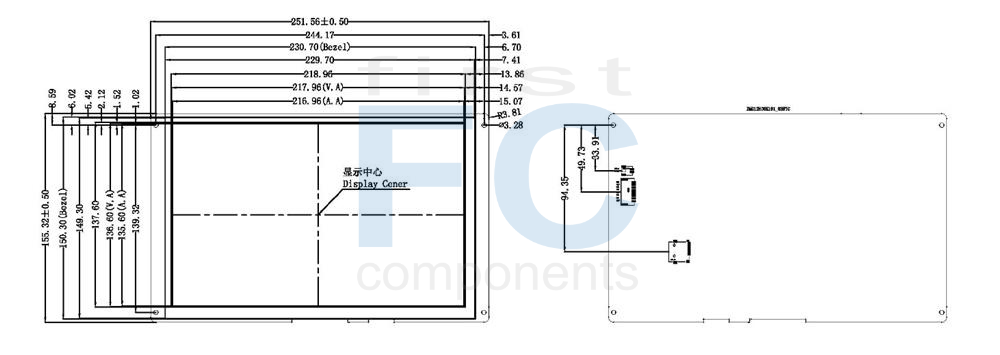

DRAWING

SKU: DMG12800K101_03WTC
Brand: DWIN
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€135.70
€129.10
€125.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€135.70 excl tax

Media



ASIC Information

T5L2 ASIC Self-designed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database.


Display

Color 16.7M（16777216） colors
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angle, 85/85/85/85 (L/R/U/D)
Display Area（A.A） 216.96mm (W)×135.6mm (H)
Resolution 1280x800Pixel
Backlight LED
Brightness 350nit


Touch Parameters

Type CTP (Capacitive touch panel)
Structure G+G structure with surface cover of Asahi tempered glas
Touch Mode Support point touch and drag
Surface Hardness 6H
Light Transmittance Over 90%
Life Over 1,000,000 times touch


Voltage & Current

Power Voltage 7~36V
Operation Current  VCC = +12V, Max backlight, 510mA
VCC = +12V, Backlight off, 180mA


Interface

LCM interface FPC40_0.5mm, LVDS interface
Baudrate 3150~3225600bps
Output Voltage Output 1, Iout = 1mA; -5.0~-3.0 V
Output 0, Iout =-1mA; 3.0~5.0 V
Input Voltage
（RXD） 		 Input 1， Iin = 1mA；-15.0~-5.0V
Input 0， Iin = -1mA；5.0~15.0V
Interface UART2: RS232
UART4: RS232 (Only available after OS configuration)
UART5: RS485 (Only available after OS configuration)
User Interface 8Pin_2.0mm (RS232), 2Pin_2.0mm (RS485)
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
Buzzer 3V passive buzzer. Power: <1W
SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module
interface		 Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS
kernel and make the product return to


Display Connection







Accessories (Selectable in Above Menu)



DRAWING

Products specifications
Brand DWIN
Size 10.1"
Resolution 1280x800
Viewing Area (mm) 217.96x136.60
Active Area (mm) 216.96×135.60
Color Full Color
Nr. Of Color 16.7M
Operating System DGUSII OS
Power supply 12V
Display Interface RS232/RS485
Display IC DWIN ASIC T5L2
View Angle IPS
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
Download
Products specifications
Brand DWIN
Size 10.1"
Resolution 1280x800
Viewing Area (mm) 217.96x136.60
Active Area (mm) 216.96×135.60
Color Full Color
Nr. Of Color 16.7M
Operating System DGUSII OS
Power supply 12V
Display Interface RS232/RS485
Display IC DWIN ASIC T5L2
View Angle IPS
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
