TFT 1.54" 240x240, Round Intelligent T5L UART with Knob and Encoder, 300cd/m², Wide View Angle (IPS), Commercial Grade



Media





ASIC Information


T5L0 ASIC Mass production in 2020, developed by DWIN, 1MBytes Nor Flash on the chip, 512KBytes used to store the user database.
Rewrite cycle: over 100,000 times




Display


Color 18-bit, 6R6G6B
LCD Type IPS, TFT-LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85°(L/R/U/D)
Display Area（A.A） Diameter=26.8mm
Resolution 240*240
Backlight LED
Brightness -



Voltage & Current


Rated Power <1W
Power Voltage 4.5~5.5V, typical value of 5V
Operation Current VCC=5V, max backlight: 62mA
VCC=5V, backlight off: -
Recommended power supply: 5V 0.2A DC



Interface


LCM interface FPC12_0.5mm, 4SPI interface
User interface 6Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
USB interface MICRO USB, power supply interface (5V)
Baud rate 3150~3225600bps
Output voltage Output 1, Iout =-4mA; 3.0~3.3 V
Output 0, Iout =4mA; 0~0.3 V
Input voltage Input 1; 2.4~5.0V
Input 0; 0~0.5V
UART mode UART2: TTL/CMOS
User interface 6Pin_2.0mm
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
SD card interface FPC10_0.5mm interface, without SD card slots, external adapter board is required for downloading. FAT32, Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal



Accessories (Selectable in Above Menu)








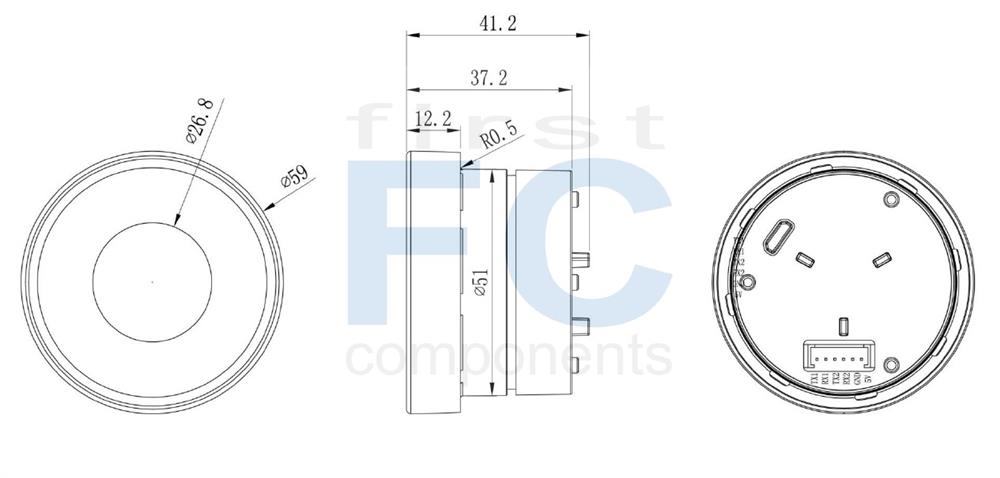

DRAWING





SKU: DMG24240C015_13WN
Brand: DWIN
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€40.50
€38.50
€31.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€40.50 excl tax



Media





ASIC Information


T5L0 ASIC Mass production in 2020, developed by DWIN, 1MBytes Nor Flash on the chip, 512KBytes used to store the user database.
Rewrite cycle: over 100,000 times




Display


Color 18-bit, 6R6G6B
LCD Type IPS, TFT-LCD
Viewing Angle Wide viewing angle, 85°/85°/85°/85°(L/R/U/D)
Display Area（A.A） Diameter=26.8mm
Resolution 240*240
Backlight LED
Brightness -



Voltage & Current


Rated Power <1W
Power Voltage 4.5~5.5V, typical value of 5V
Operation Current VCC=5V, max backlight: 62mA
VCC=5V, backlight off: -
Recommended power supply: 5V 0.2A DC



Interface


LCM interface FPC12_0.5mm, 4SPI interface
User interface 6Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s
USB interface MICRO USB, power supply interface (5V)
Baud rate 3150~3225600bps
Output voltage Output 1, Iout =-4mA; 3.0~3.3 V
Output 0, Iout =4mA; 0~0.3 V
Input voltage Input 1; 2.4~5.0V
Input 0; 0~0.5V
UART mode UART2: TTL/CMOS
User interface 6Pin_2.0mm
Flash 16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times
SD card interface FPC10_0.5mm interface, without SD card slots, external adapter board is required for downloading. FAT32, Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal



Accessories (Selectable in Above Menu)








DRAWING





Products specifications
Brand DWIN
Size 1.54"
Resolution 240x240
Active Area (mm) Ø26.80
Color Full Color
Nr. Of Color 262K
Operating System DGUSII OS
Power supply 5V
Display Interface UART
Display IC DWIN ASIC T5L0
View Angle IPS
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
Download
Products specifications
Brand DWIN
Size 1.54"
Resolution 240x240
Active Area (mm) Ø26.80
Color Full Color
Nr. Of Color 262K
Operating System DGUSII OS
Power supply 5V
Display Interface UART
Display IC DWIN ASIC T5L0
View Angle IPS
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
