DMG80480K043_03WTC

TFT 4.3" 800x480, Intelligent T5L RS485/RS232 COB, 250cd/m², Wide View Angle (IPS), Capacitive Touch Panel (GG), Medical Grade

Media

ASIC Information

T5L1 ASIC

Developed by DWIN. Mass production in 2019,512KBytes used to store the user database, 1MBytes Nor Flash on the chip. Rewrite cycle: over 100,000 times

Display

Color	16.7M（16777216） colors
LCD Type	IPS
Viewing Angle	Wide viewing angle 85°/85°/85°/85° (L/R/U/D)
Display Area（A.A）	93.60 mm (W) × 56.16 mm (H)
Resolution	800x480
Backlight	LED
Brightness	250nit

Voltage & Current

Power Voltage	6~36V
Operation Current	VCC = +12V, Max backlight, 130 mA
	VCC = +12V, Backlight off,60 mA
Recommended power supply: 12V 1A DC

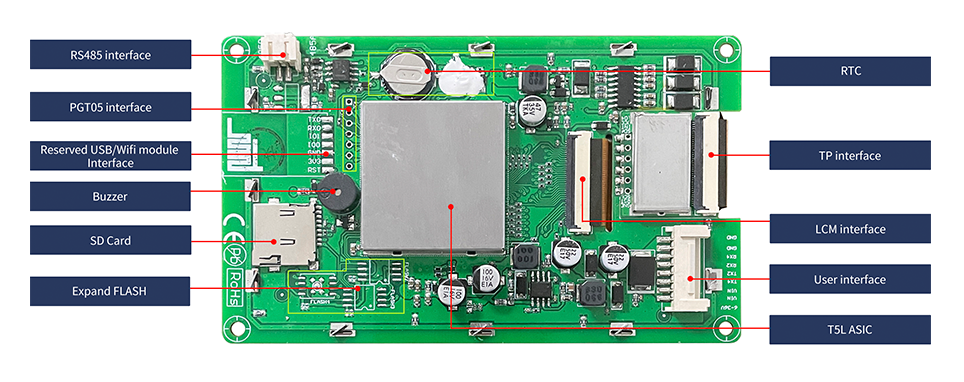

Interface

Baudrate	3150~3225600bps
Output Voltage	Output 1, Iout =-1mA; -5.0~-3.0 V
Output Voltage	Output 0, Iout = 1mA; 3.0~5.0 V
Input Voltage （RXD）	Input 1；-15.0~-5.0V
Input Voltage （RXD）	Input 0；5.0~15.0V
Interface	UART2: RS232 UART4: RS232 (Only available after OS configuration) UART5: RS485 (Only available after OS configuration)
User Interface	8Pin_2.0mm (RS232, )2Pin_2.0mm (RS485)
Buzzer	3V passive buzzer. Power: <1W
SD interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface	Wi-Fi module USB module

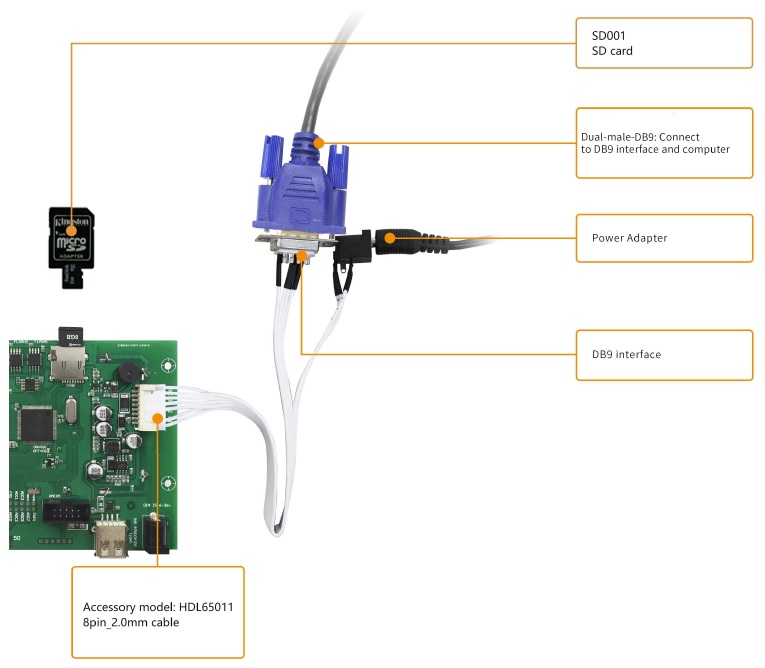

Display Connection

Accessories (Selectable in Above Menu)

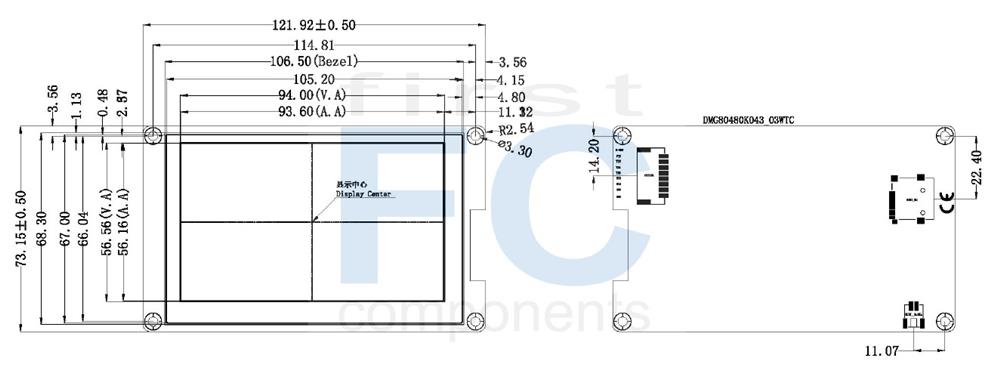

DRAWING

SKU: DMG80480K043_03WTC

Brand: DWIN

Available: Yes

Be the first to review this product

Accessory Kit

FFC Cable
Display Connector
Added Accessory 1
Added Accessory 2

Price Breaks

Quantity

10+

Price

€64.50

€57.50

€55.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€64.50 excl tax

Overview
Specifications
Download
Contact Us

Media

ASIC Information

T5L1 ASIC

Developed by DWIN. Mass production in 2019,512KBytes used to store the user database, 1MBytes Nor Flash on the chip. Rewrite cycle: over 100,000 times

Display

Color	16.7M（16777216） colors
LCD Type	IPS
Viewing Angle	Wide viewing angle 85°/85°/85°/85° (L/R/U/D)
Display Area（A.A）	93.60 mm (W) × 56.16 mm (H)
Resolution	800x480
Backlight	LED
Brightness	250nit

Voltage & Current

Power Voltage	6~36V
Operation Current	VCC = +12V, Max backlight, 130 mA
	VCC = +12V, Backlight off,60 mA
Recommended power supply: 12V 1A DC

Interface

Baudrate	3150~3225600bps
Output Voltage	Output 1, Iout =-1mA; -5.0~-3.0 V
Output Voltage	Output 0, Iout = 1mA; 3.0~5.0 V
Input Voltage （RXD）	Input 1；-15.0~-5.0V
Input Voltage （RXD）	Input 0；5.0~15.0V
Interface	UART2: RS232 UART4: RS232 (Only available after OS configuration) UART5: RS485 (Only available after OS configuration)
User Interface	8Pin_2.0mm (RS232, )2Pin_2.0mm (RS485)
Buzzer	3V passive buzzer. Power: <1W
SD interface	FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s
Reserved module interface	Wi-Fi module USB module

Display Connection

Accessories (Selectable in Above Menu)

DRAWING

Products specifications

Brand	DWIN
Size	4.3"
Resolution	800x480
Viewing Area (mm)	94.00x56.56
Active Area (mm)	93.60x56.16
Color	Full Color
Nr. Of Color	16.7M
Operating System	DGUSII OS
Power supply	5V
Display Interface	RS232/RS485
Display IC	DWIN ASIC T5L1
View Angle	IPS
Touch Panel	Capacitive
O. Temperature (°C)	-20~70
Preferred - Not Preferred	Preferred
