GPFB101-1402A001R1BA-30

Pin Header - R/A Contact, Single Row, 14 Pins, Pitch 2mm, Gold Plated (Mating Contact Length: 4mm)

Specifications

Current Rating：2.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 500VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC



Materials

Contact Material：Brass, Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0

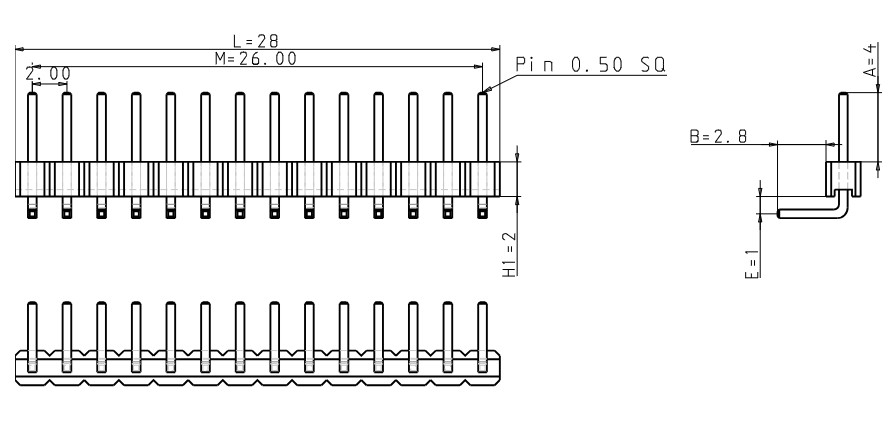

Dimensions

SKU: GPFB101-1402A001R1BA-30
Brand: Greenconn
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
50+
100+
Price
€0.29
€0.25
€0.24
€0.22
€0.20
€0.17

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€0.29 excl tax

Specifications

Current Rating：2.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 500VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC



Materials

Contact Material：Brass, Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0



Dimensions

Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*15
Pin Pitch 2mm
Contact Direction R/A
Download
Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*15
Pin Pitch 2mm
Contact Direction R/A
Related products

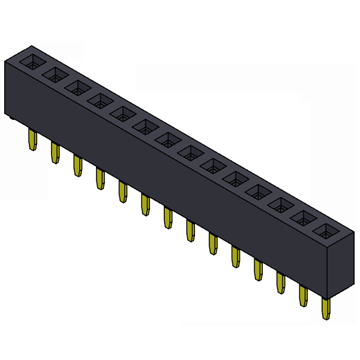

Picture of CSFA101-1402A001R1AB-30
