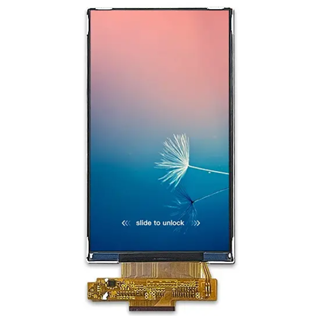

NT050-C001DW

Picture of NT050-C001DW Picture of NT050-C001DW
TFT 5" 720x1280 Portrait LCD Panel, Interface MIPI DSI IC ILI9881H, 300cd/m², Wide View Angle (IPS), Incell Capacitive Touch I2C Interface

General Specification

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 62.10(W)*110.40(H)
Driver IC ILI9881H
Luminance 300cd/m²
LED Numbers 12 LEDS
Interface MIPI 40PIN_0.5mm
CTP Structure Incell(Without Cover Lens)
CTP Interface IIC



Electrical Characteristics

Voltage for LED Backlight 9.6V(Typ.)
Current for LED Backlight 80mA
Backlight Power Consumption 768mW
LED Life-Time 20000 Hr



Optical Characteristics

Contrast Ratio 900:1
Color Gamut 70%
Response Time 30ms
Uniformity 80%





DRAWING

SKU: NT050-C001DW
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€39.00
€33.70
€30.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€39.00 excl tax

General Specification

Color 16.7M
LCD Type IPS-TFT-LCD
Viewing Angle Wide viewing angle, 85/85/85/85(L/R/U/D)
Display Area(A.A) 62.10(W)*110.40(H)
Driver IC ILI9881H
Luminance 300cd/m²
LED Numbers 12 LEDS
Interface MIPI 40PIN_0.5mm
CTP Structure Incell(Without Cover Lens)
CTP Interface IIC



Electrical Characteristics

Voltage for LED Backlight 9.6V(Typ.)
Current for LED Backlight 80mA
Backlight Power Consumption 768mW
LED Life-Time 20000 Hr



Optical Characteristics

Contrast Ratio 900:1
Color Gamut 70%
Response Time 30ms
Uniformity 80%





DRAWING

Products specifications
Brand Next Vision Display
Size 5"
Resolution 720x1280
Active Area (mm) 62.10x110.40
Color Full Color
Display Interface MIPI
Display IC ILI9881H
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 5"
Resolution 720x1280
Active Area (mm) 62.10x110.40
Color Full Color
Display Interface MIPI
Display IC ILI9881H
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
