NT070-C002ML

Picture of NT070-C002ML Picture of NT070-C002ML
TFT 7" 1024x600, HDMI Interface, Wide view angle (IPS), 600cd/m², Capacitive touch panel, Standard Temp., W/ Frame (HDMI and micro-usb cables included)



DESCRIPTION



The NT070­-C002ML model is a Color TFT LCD supplied by Next Vision Display. This main Module has a 7.0 inch diagonally measured active display area with 1024(RGB)X600 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes.The NT070-­C002ML has been designed to apply the HDMI interface method that enables low power, high speed, and high contrast.

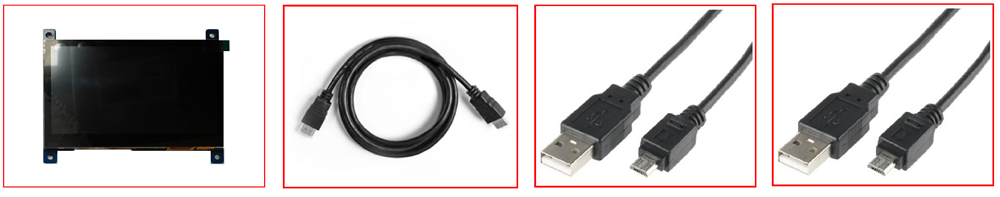

The display kit includes:

  • 1 TFT Display HDMI 7" 1024x600
  • 1 HDMI cable
  • 2 usb-microusb cables

DRAWING





SPECIFICATIONS



General Specifications

Item

Standard Value

Unit

Display Mode

Normally White, Transmissive LCD



Module Dimension

165.3(W)*121.0(H)*7.95(T)

mm

Resolution

1024(RGB)X 600

Pixels

Active Display Area

154.21(W)×85.92(H)

mm

Viewing Direction

ALL

--

LED Backlight Color

White

--

Interface

LCD:HDMI,  CTP:USB

--

Power supply

USB(5.0V)



Support system

Win/7/Win8/Win10(plug and play)



Android,Linux (configured in requests)

Power Supply

USB(5.0 V)





Absolute Max Ratings

Item

  Min

Typ

Max

Unit

Remark

Operating temperature

-20

--

70

°C



Storage temperature

-30

--

80

°C



Humidity

--

--

90%

RH

@60°C



Optical Specification

Item

Symbol

Condition

  Min Max

Unit

Note

Brightness

Bp

e=0°

F=0°

-

600

-

cd/m2



Uniformity

△Bp

-

80

-

%



Viewing Angle

e1

(0=90° or270°)

12 o’clock

80

85

-

Deg

Cr≥10

6 o’clock

80

85

-

e2

(0=0° or

180°)

9 o’clock

80

85

-

3 o’clock

80

85

-

CIE

Wx

e=0°

F=0°

0.26

0.30

0.36





Wy

0.28

0.33

0.38





Contrast Ratio

Cr

300

400



-



Response Time

ton

-

25

40

ms


SKU: NT070-C002ML
Brand: Next Vision Display
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€104.20
€92.20
€86.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€104.20 excl tax



DESCRIPTION



The NT070­-C002ML model is a Color TFT LCD supplied by Next Vision Display. This main Module has a 7.0 inch diagonally measured active display area with 1024(RGB)X600 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes.The NT070-­C002ML has been designed to apply the HDMI interface method that enables low power, high speed, and high contrast.

The display kit includes:

  • 1 TFT Display HDMI 7" 1024x600
  • 1 HDMI cable
  • 2 usb-microusb cables

DRAWING





SPECIFICATIONS



General Specifications

Item

Standard Value

Unit

Display Mode

Normally White, Transmissive LCD



Module Dimension

165.3(W)*121.0(H)*7.95(T)

mm

Resolution

1024(RGB)X 600

Pixels

Active Display Area

154.21(W)×85.92(H)

mm

Viewing Direction

ALL

--

LED Backlight Color

White

--

Interface

LCD:HDMI,  CTP:USB

--

Power supply

USB(5.0V)



Support system

Win/7/Win8/Win10(plug and play)



Android,Linux (configured in requests)

Power Supply

USB(5.0 V)





Absolute Max Ratings

Item

  Min

Typ

Max

Unit

Remark

Operating temperature

-20

--

70

°C



Storage temperature

-30

--

80

°C



Humidity

--

--

90%

RH

@60°C



Optical Specification

Item

Symbol

Condition

  Min Max

Unit

Note

Brightness

Bp

e=0°

F=0°

-

600

-

cd/m2



Uniformity

△Bp

-

80

-

%



Viewing Angle

e1

(0=90° or270°)

12 o’clock

80

85

-

Deg

Cr≥10

6 o’clock

80

85

-

e2

(0=0° or

180°)

9 o’clock

80

85

-

3 o’clock

80

85

-

CIE

Wx

e=0°

F=0°

0.26

0.30

0.36





Wy

0.28

0.33

0.38





Contrast Ratio

Cr

300

400



-



Response Time

ton

-

25

40

ms


Products specifications
Brand Next Vision Display
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x87.64
Color Full Color
Display Interface HDMI
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection HDMI Connector
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x87.64
Color Full Color
Display Interface HDMI
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection HDMI Connector
Preferred - Not Preferred Preferred
