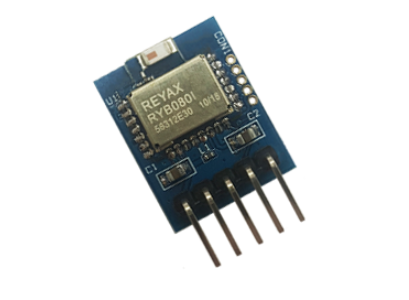

RYB080I_LITE

2.4GHz BLE 4.2 & 5.0 Module breakout board, Control Via AT Commands, 19*15.24*2.54mm

Bluetooth v4.2 & v5.0 with Bluetooth Low Energy.
2.4GHz BLE 4.2 & 5.0 Module breakout board.
Operation Temperature range: -40 to +85°C.
Certifications: NCC, FCC, MIC.

The RYB080I_lite is based on REYAX RYB080I, RYB080I_lite integrated power and pins, it is designed for BLE applications, Developers can use a simple AT command MCU then connectivity products to the BLE device and smartphone.

Item	Min.	Typical	Max.	Unit	Condition
Operation Voltage	1.8		3.8	V	VDD
Digital I/O Voltage		3.3		V	RST, TXD, RXD
Baud Rate		9600	115200	bps
Operating Temperature	-40	25	+85	˚C
Antenna					Embedded PCB Antenna
Dimensions
Weight		5		g

SKU: RYB080I_LITE

Brand: Reyax

Available: No

Be the first to review this product

Accessory Kit

Added Board

€9.00 excl tax

Overview
Specifications
Download
Contact Us

Bluetooth v4.2 & v5.0 with Bluetooth Low Energy.
2.4GHz BLE 4.2 & 5.0 Module breakout board.
Operation Temperature range: -40 to +85°C.
Certifications: NCC, FCC, MIC.

Item	Min.	Typical	Max.	Unit	Condition
Operation Voltage	1.8		3.8	V	VDD
Digital I/O Voltage		3.3		V	RST, TXD, RXD
Baud Rate		9600	115200	bps
Operating Temperature	-40	25	+85	˚C
Antenna					Embedded PCB Antenna
Dimensions
Weight		5		g
