VGG191005-0TSLWE

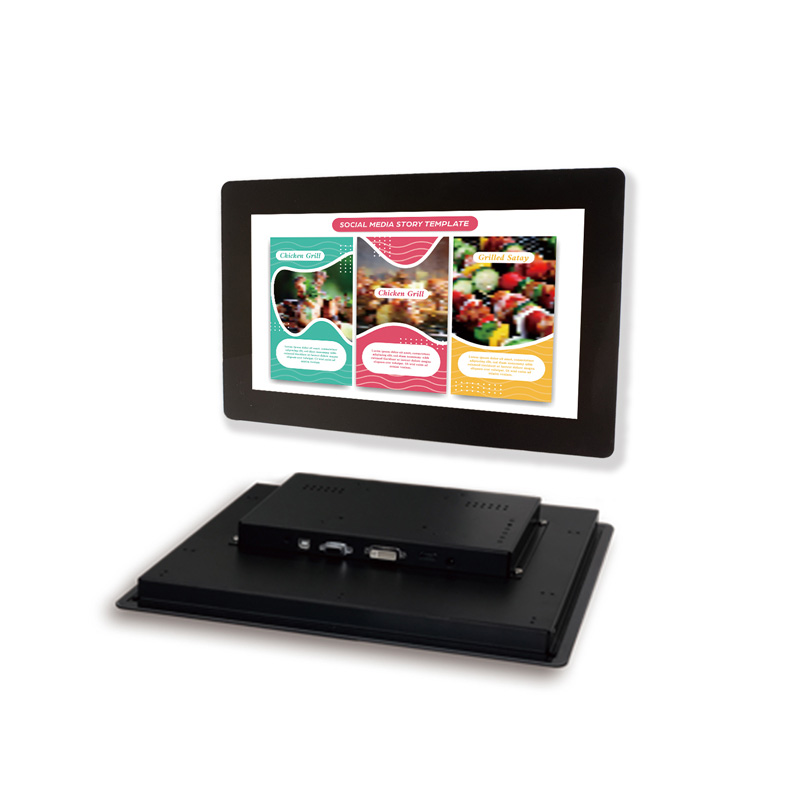

Panel Mount LCD Monitor 15.6” with IPCT (USB), 1920x1080 resolution, Brightness 360cd/m², MVA Technology, LCD VGA/DVI/HDMI interface, 0+70°C O.T.

DESCRIPTION

► 15.6" Industrial Open Frame Monitor
► Versatile mounting methods for rear mounting and VESA mounting
► Signal interface: VGA & DVI & HDMI*
► Build-in 4Ω 2W*2 Speaker
► Support OSD Function
► Projected Capacitive Touch
► USB Interface
► Multi Touch (Five points)
► 1920 x 1080 resolution

* Support HDMI Interface and fulfill the needs of your digital device.

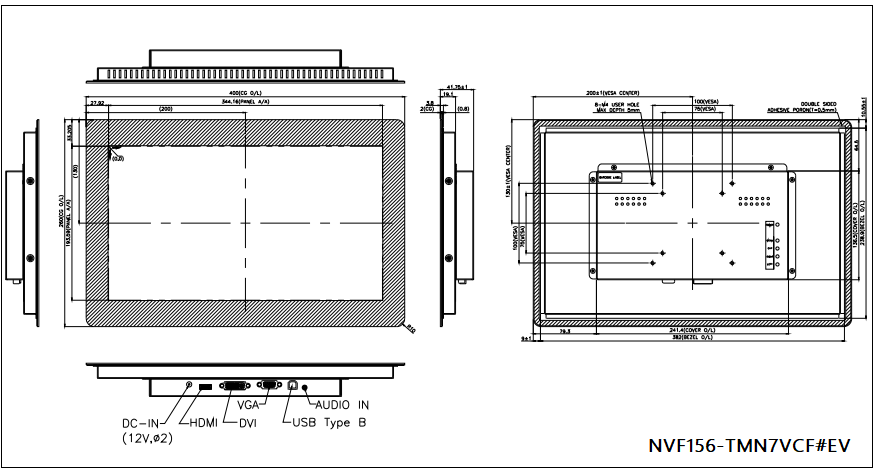

DRAWING

Absolute Maximum Ratings

Item

Symbol

Min.

Max.

Unit

Storage Temperature

TST

-20

+70

°C

Operating Ambient Temperature

TOP

0

+70

°C

Electrical Characteristics(Ta=25±2°C)

Item

Symbol

Min.

Typ.

Max.

Unit

Note

Digital Power Supply Voltage

VIN

11.5

12.0

12.5

V

-

Input High Threshold Voltage

IIN

-

1.30

1.82

A

-

LED Life Time(25℃)

-

50000

-

-

hr

(1)

Note (1)：LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness

Projected Capacitive Touch (Ta=25±2°C)

Item

Symbol

Min.

Typ.

Max.

Unit

Note

Power Supply Voltage

VTP

4.8

5.0

5.2

V

-

Power Supply Current

ITP

-

34.5

48.3

mA

(1)

Output High Threshold Voltage

VOH

2.8

-

-

V

-

Output Low Threshold Voltage

VOL

-

-

0.8

V

-

Differential Input Sensitivity

|(D+)-(D-)|

VDI

0.2

-

-

V

-

Differential Input Common

Mode Range

VCM

0.8

-

2.5

V

-

Power Consumption

PL

-

172.5

241.16

mW

@5.0V

Report Rate

RR

-

60

-

Hz

-

Note (1) This test condition is touched with 2 points.

SKU: VGG191005-0TSLWE
Brand: Evervision
Be the first to review this product

DESCRIPTION

► 15.6" Industrial Open Frame Monitor
► Versatile mounting methods for rear mounting and VESA mounting
► Signal interface: VGA & DVI & HDMI*
► Build-in 4Ω 2W*2 Speaker
► Support OSD Function
► Projected Capacitive Touch
► USB Interface
► Multi Touch (Five points)
► 1920 x 1080 resolution

* Support HDMI Interface and fulfill the needs of your digital device.



DRAWING

Absolute Maximum Ratings

Item

Symbol

Min.

Max.

Unit

Storage Temperature

TST

-20

+70

°C

Operating Ambient Temperature

TOP

0

+70

°C

Electrical Characteristics(Ta=25±2°C)

Item

Symbol

Min.

Typ.

Max.

Unit

Note

Digital Power Supply Voltage

VIN

11.5

12.0

12.5

V

-

Input High Threshold Voltage

IIN

-

1.30

1.82

A

-

LED Life Time(25℃)

-

50000

-

-

hr

(1)

Note (1)：LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness

Projected Capacitive Touch (Ta=25±2°C)

Item

Symbol

Min.

Typ.

Max.

Unit

Note

Power Supply Voltage

VTP

4.8

5.0

5.2

V

-

Power Supply Current

ITP

-

34.5

48.3

mA

(1)

Output High Threshold Voltage

VOH

2.8

-

-

V

-

Output Low Threshold Voltage

VOL

-

-

0.8

V

-

Differential Input Sensitivity

|(D+)-(D-)|

VDI

0.2

-

-

V

-

Differential Input Common

Mode Range

VCM

0.8

-

2.5

V

-

Power Consumption

PL

-

172.5

241.16

mW

@5.0V

Report Rate

RR

-

60

-

Hz

-

Note (1) This test condition is touched with 2 points.

Products specifications
Brand Evervision
Size 15.6"
Resolution 1920x1080
Active Area (mm) 344.16x193.59
Display Interface VGA/DVI/HDMI
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Evervision
Size 15.6"
Resolution 1920x1080
Active Area (mm) 344.16x193.59
Display Interface VGA/DVI/HDMI
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
